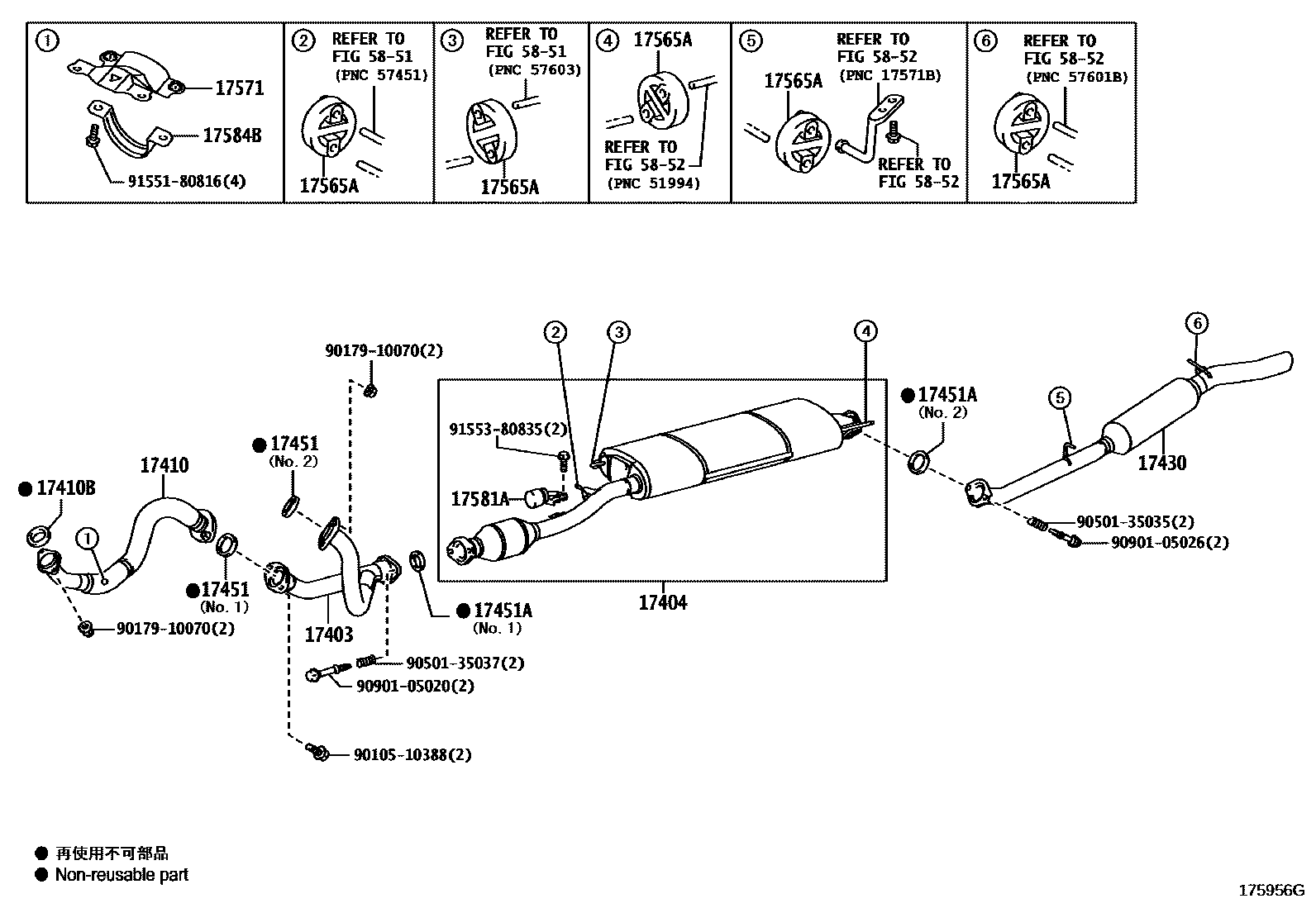

EXHAUST PIPE

0001 1 0002 1 0003 1

17403PIPE SUB-ASSY, EXHAUST, FRONT NO.3

main17403-31080i2GRFE..GGH20201110

17404PIPE SUB-ASSY, EXHAUST FORKED

main17404-31090i2GRFE..GGH20..RHD200804-201110

main17404-31160supersedes 17404-31170i2GRFE..GGH20..GCC; 2GRFE..GGH20..LHD..GEN201006-201110

PHILIPPINES SPEC; TAIWAN SPEC

main17404-31180supersedes 17404-31200i2GRFE..GGH20..LHD..GEN; 2GRFE..GGH20..RHD;2GRFE..GGH20..GCC201110

PHILIPPINES SPEC; TAIWAN SPEC

17410PIPE ASSY, EXHAUST, FRONT

main17410-28590i2AZFE..ANH20200906-201110

main17410-28591i2AZFE..ANH20201209-201501

main17410-28600i2AZFXE..ATH20201112-201208

main17410-28601i2AZFXE..ATH20201209-201501

main17410-31630i2GRFE..GGH20201110-201501

17410BGASKET, EXHAUST PIPE

main17451-28040i2AZFE..ANH20200906-201110

main17451-28080i2AZ#..ANH20,ATH20201207-201409

main90917-06089i2GRFE..GGH20201110-201501

17430PIPE ASSY, EXHAUST, TAIL

main17430-28890supersedes 17430-28A40i2AZFE..ANH20..GCC;2AZFE..ANH20..CVFC200906-201110

main17430-31690supersedes 17430-31A90i2GRFE..GGH20..LHD..GEN; 2GRFE..GGH20..RHD;2GRFE..GGH20..GCC201110

PHILIPPINES SPEC; TAIWAN SPEC

17451GASKET, EXHAUST PIPE

main90917-06078i2AZFE..ANH20200906-201110

main90917-06089i2GRFE..GGH20200804-201110

NO.2

17451AGASKET, EXHAUST PIPE, NO.2

main17451-28021i2AZFE..ANH20200906-201102

main17451-28022i2AZ#..ANH20,ATH20201110

main17451-28040i2GRFE..GGH20200804-201110

NO.1

main17451-31010i2GRFE..GGH20200804-200806

NO.2

main17451-31011i2GRFE..GGH20200807-201102

NO.2

main17451-31012i2GRFE..GGH20201103-201110

NO.2

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040×5i2AZFE,2GRFE..ANH20,GGH20200804-201110

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-31190i2GRFE..GGH20201110

17581ADAMPER, EXHAUST PIPE

main17581-31020i2GRFE..GGH20201110

main17581-46120i2AZFE..ANH20..LHD201110

main17581-62010i2GRFE..GGH20200804-201110

17584BBRACKET, EXHAUST PIPE NO.1 SUPPORT

main17584-31040i2GRFE..GGH20200804-201110

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

5852REAR FLOOR PANEL & REAR FLOOR MEMBER

→ Go to FIG 58-52

9010510388

main90105-10388

9017910070

main90179-10070

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

9155180816

main91551-80816

9155380835

main91553-80835

21 parts on this diagram · 3 diagrams in section
