CYLINDER BLOCK

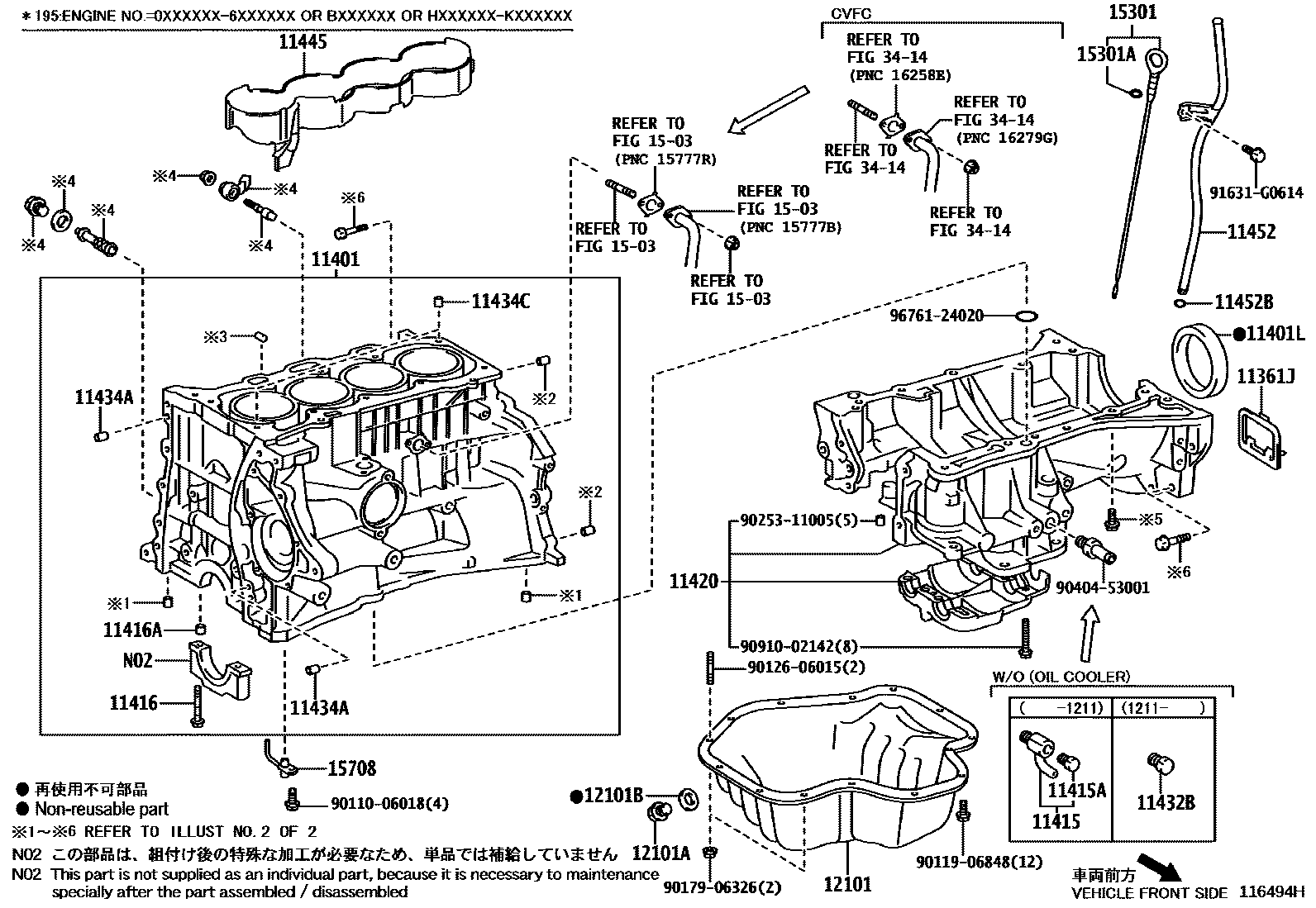

Parts diagram
11361JCOVER, FLYWHEEL HOUSING UNDER
main11361-28010i200906-201110
main11361-31060i201110
11401BLOCK SUB-ASSY, CYLINDER
main11401-80718i200804-200805
main11401-80774i200805-201110
main11401-80800i201210-201406
main11401-80814i201407-201412
main11401-80826i201412-201501
main11410-29345i201110-201212
*195; 2AZ-FE CHINA,*195
main11410-29346i201212
*195; 2AZ-FE CHINA,*195
main11410-09221i201110-201208
2AZ-FE CHINA,*194
11401LSEAL, ENGINE REAR OIL
main90311-89003i200906-201110
*195
main90311-89007i201204-201305
*195; 2AZ-FE CHINA,*195
main90311-89010i201305
2AZ-FE CHINA
main90311-C0001i200906-201110
*194
main90311-C0024i201204-201208
2AZ-FE CHINA,*194
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
main90345-52001i201208
LH,TYPE A:REF.ILL.
main90910-09129i201208
RH,LH,TYPE B:REF.ILL.
main90910-09120i201110-201211
*195; 2AZ-FE CHINA,*195; THAILAND SPEC,*195
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
main90910-09087×2i201110
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
main90910-02124×10i200906-201110
*194; *195
main90910-02154×8i201110-201501
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
main90253-13017×10i200906-201110
(J),*195; *194; *195
11420CRANKCASE ASSY, STIFFENING
main11420-0H050i200906-201010
(L),*194; (L),*195
main11420-0H051i201010-201110
(L),*194; (L),*195
main11420-28020i200906-201010
(J),*194; (J),*195
main11420-28021i201110
(J),*195
11432BPLUG, W/HEAD TAPER SCREW, NO.2
main90345-53006i201211
*195; 2AZ-FE CHINA,*195; THAILAND SPEC,*195
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
main90250-04097×2i200804-201110
L=12,OD=4.0
main90250-08120×2i200906-201110
L=18,OD=8,*194; L=18,OD=8,*195
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
main90250-08120×4i200804-201110
L=18,OD=8
main90253-14003×2i200906-201110
L=12,OD=14,*194; L=12,OD=14,*195
11445SPACER, CYLINDER BLOCK WATER JACKET
main11445-28020i200906-201110
*195
main11445-0H020i200906-201110
*194
11452GUIDE, OIL LEVEL GAGE
main11452-28040i201110
*195; 2AZ-FE CHINA,*195
main11452-31060i201110
main11452-28060i200906-201110
*194
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
main90301-12018i200804-201110
main96721-19010i201110
*195; 2AZ-FE CHINA,*195
12101PAN SUB-ASSY, OIL
main12101-28060i200906-201110
(J),*194; *195
main12101-31121i201110
main12101-0H060i201110-201208
2AZ-FE CHINA,*194
12101APLUG(FOR OIL PAN DRAIN)
main90341-12012i200804-201110
12101BGASKET(FOR OIL PAN DRAIN PLUG)
main90430-12031i200906-201110
(J),*194; *195
main90430-C0005i200906-201110
(L),*194
1503ENGINE OIL COOLER
→ Go to FIG 15-03
15301GAGE SUB-ASSY, OIL LEVEL
main15301-28030i200906-201110
(J),*194; *195
main15301-28031i201301
*195; 2AZ-FE CHINA,*195
main15301-31100i201110
main15301-0H050i200906-201110
(L),*194
15301ARING, O(FOR OIL LEVEL GAGE)
main96741-19005i201110-201301
*195
15708NOZZLE SUB-ASSY, OIL, NO.1
main15708-28011×4i200906-201110
*194; *195
main15708-31030×3i201110
3414OIL COOLER & TUBE(CVT)
→ Go to FIG 34-14
9011006018
main90110-06018
9011906848
main90119-06848
9012606015
main90126-06015
9017906326
main90179-06326
9025311005
main90253-11005
9040453001
main90404-53001
9091002142
main90910-02142
91631G0614
main91631-G0614
9676124020
main96761-24020
