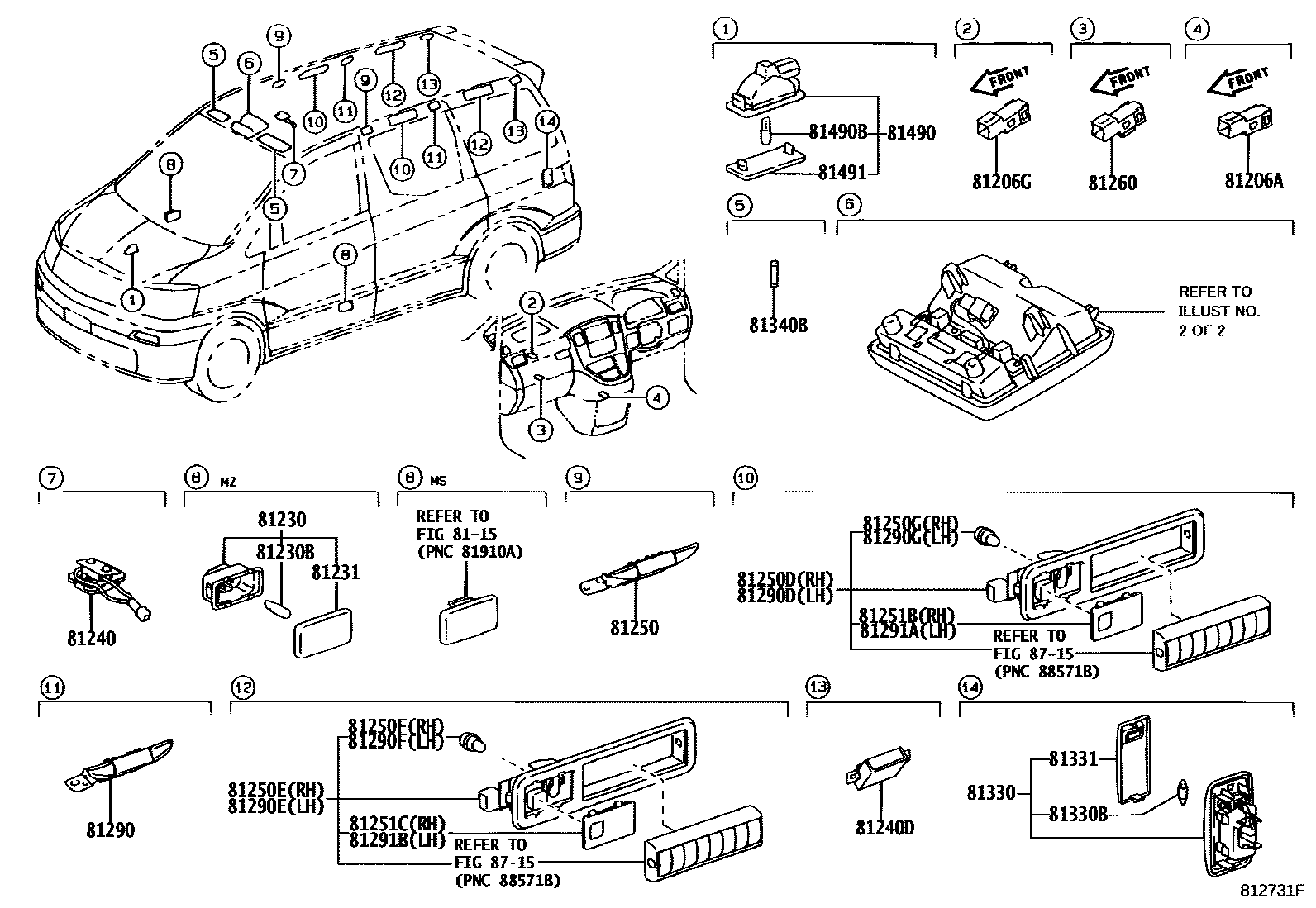

INTERIOR LAMP
8115REFLEX REFLECTOR
81206ALAMP SUB-ASSY, CONSOLE BOX
81206GLAMP SUB-ASSY, CONSOLE BOX
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 3.8W
81231LENS, COURTESY LAMP
81240LAMP ASSY, ROOM, NO.1
IVORY,TRIM0#
LT.GRAY,TRIM1#
81250DLAMP ASSY, REAR ROOM, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#
81250ELAMP ASSY, REAR ROOM, RH NO.2
IVORY,TRIM0#
LT.GRAY,TRIM1#
81250FBULB, REAR ROOM LAMP RH NO.2
12V 5W
81250GBULB, REAR ROOM LAMP, RH
12V 5W
81251BLENS, REAR ROOM LAMP, RH
81251CLENS, REAR ROOM LAMP, RH NO.2
81260LAMP ASSY, GLOVE BOX
81290LAMP ASSY, ROOM, NO.3
RH
RH
LH
81290DLAMP ASSY, REAR ROOM, LH
IVORY,TRIM0#
LT.GRAY,TRIM1#
81290ELAMP ASSY, REAR ROOM, LH NO.2
IVORY,TRIM0#
LT.GRAY,TRIM1#
81290FBULB, REAR ROOM LAMP LH NO.2
12V 5W
81290GBULB, REAR ROOM LAMP, LH
12V 5W
81291ALENS, REAR ROOM LAMP, LH
81291BLENS, REAR ROOM LAMP, LH NO.2
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
DK.GRAY,TRIM1#
ORCHID BROWN,TRIM0#
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
81331LENS, LUGGAGE COMPARTMENT LAMP
81340BBULB (FOR VANITY LAMP)
12V 1.5W
81490LAMP ASSY, FOOT
81490BBULB (FOR FOOT LAMP)
12V 1.2W W/O SOCKET
81491LENS, FOOT LAMP
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
31 parts on this diagram · 2 diagrams in section
