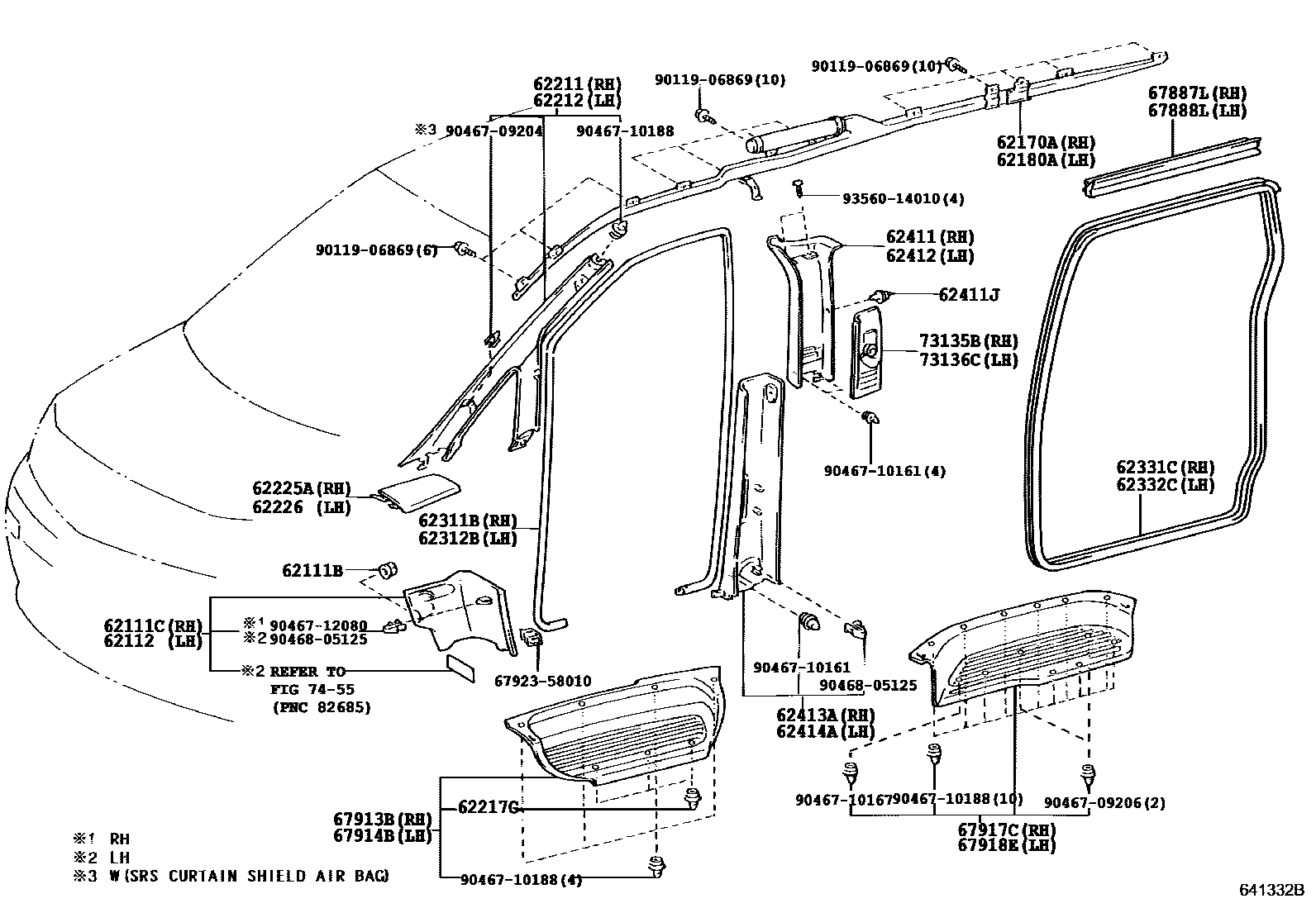

INSIDE TRIM BOARD

0001 1 0002 1

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06193-A0×2iMNH10..MZ200312-200504

IVORY,TRIM0#

main90467-06193-B1×2iMNH10..MS200312-200504

STONE,TRIM1#

62111CBOARD, COWL SIDE TRIM, RH

main62111-58010-A0iMNH10..MZ200312-200504

IVORY,TRIM0#

main62111-58010-B0iMNH10..MS200312-200504

STONE,TRIM1#

62112BOARD, COWL SIDE TRIM, LH

main62112-58010-A0iMNH10..MZ200312-200504

IVORY,TRIM0#

main62112-58010-B0iMNH10..MS200504-200804

STONE,TRIM1#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-58010iMNH10..MS; MNH10..MZ200312-200504

SRS AIR BAG-SIDE & CURTAIN

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-58010iMNH10..MS; MNH10..MZ200312-200504

SRS AIR BAG-SIDE & CURTAIN

62211GARNISH, FRONT PILLAR, RH

main62211-58030-B0supersedes 62211-58010-B0iMNH10..MS200504-200804

LT.GRAY,TRIM1#

main62211-58040-A0iMNH10..MZ200312-200504

IVORY,TRIM0#

62212GARNISH, FRONT PILLAR, LH

main62212-58030-B0supersedes 62212-58010-B0iMNH10..MS200504-200804

LT.GRAY,TRIM1#

main62212-58040-A0iMNH10..MZ200504-200804

IVORY,TRIM0#

62217GCLIP, FRONT PILLAR GARNISH

main62217-13010×6iMNH10200312-200504

62225AGARNISH, FRONT PILLAR, LOWER RH

main62225-58010-B0iMNH10..MS200504-200804

LT.GRAY,TRIM1#

main62225-58020-A0iMNH10..MZ200312-200504

IVORY,TRIM0#

62226GARNISH, FRONT PILLAR, LOWER LH

main62226-58010-B0iMNH10..MS200312-200504

LT.GRAY,TRIM1#

main62226-58020-A0iMNH10..MZ200504-200804

IVORY,TRIM0#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-58011-A0iMNH10..MZ200504-200804

IVORY,TRIM0#

main62311-58011-B0iMNH10..MS200312-200504

STONE,TRIM1#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-58011-A0iMNH10..MZ200504-200804

IVORY,TRIM0#

main62312-58011-B0iMNH10..MS200504-200804

STONE,TRIM1#

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main67871-58010-A0iMNH10..MZ200504-200804

IVORY,TRIM0#

main67871-58010-B0iMNH10..MS200504-200804

STONE,TRIM1#

main67871-58011-A0iMNH10..MZ200404-200410

IVORY,TRIM0#

main67871-58011-B0iMNH10..MS200404-200410

STONE,TRIM1#

main67871-58020-A0iMNH10..MZ200312-200403

IVORY,TRIM0#

main67871-58020-B0iMNH10..MS200410-200504

STONE,TRIM1#

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main67872-58010-A0iMNH10..MZ200504-200804

IVORY,TRIM0#

main67872-58010-B0iMNH10..MS200312-200504

STONE,TRIM1#

62411GARNISH, CENTER PILLAR, RH

main62411-58010-B0iMNH10..MS200504-200804

LT.GRAY,TRIM1#

main62411-58020-A0iMNH10..MZ200312-200504

IVORY,TRIM0#

62411JFASTENER(FOR CENTER PILLAR GARNISH)

main90530-06009-A0×2iMNH10..MZ200312-200504

IVORY,TRIM0#

main90530-06009-B3×2iMNH10..MS200312-200504

LT.GRAY,TRIM1#

main90530-06009-B6×2iMNH10..MS200312-200504

STONE,TRIM1#

62412GARNISH, CENTER PILLAR, LH

main62412-58010-B0iMNH10..MS200504-200804

LT.GRAY,TRIM1#

main62412-58020-A0iMNH10..MZ200504-200804

IVORY,TRIM0#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-58010-A0iMNH10..MZ200312-200504

IVORY,TRIM0#

main62413-58010-B0iMNH10..MS200312-200504

STONE,TRIM1#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-58010-A0iMNH10..MZ200504-200804

IVORY,TRIM0#

main62414-58010-B0iMNH10..MS200312-200504

STONE,TRIM1#

67887LWEATHERSTRIP, SLIDE DOOR, NO.2 RH

main67887-58010iMNH10200312-200504

67888LWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-58010iMNH10200504-200804

67913BPLATE, FRONT DOOR SCUFF, RH

main67910-58010-B0iMNH10..MS200312-200504

STONE,TRIM1#

main67910-58021-A0iMNH10..MZ200312-200504

IVORY,TRIM0#

67914BPLATE, FRONT DOOR SCUFF, LH

main67920-58010-B0iMNH10..MS200312-200504

STONE,TRIM1#

main67920-58021-A0iMNH10..MZ200312-200504

IVORY,TRIM0#

67917CPLATE, REAR DOOR SCUFF, RH

main67907-58010-B0iMNH10..MS200401-200504

STONE,TRIM1#

main67907-58021-A0iMNH10..MZ200401-200504

IVORY,TRIM0#

67918EPLATE, REAR DOOR SCUFF, LH

main67907-58030-B0iMNH10..MS200401-200504

STONE,TRIM1#

main67907-58041-A0iMNH10..MZ200504-200804

IVORY,TRIM0#

73135BCOVER, SHOULDER BELT ANCHOR, RH

main73023-30010-A0iMNH10..MZ200504-200804

IVORY,TRIM0#

main73023-30010-B2iMNH10..MS200312-200504

LT.GRAY,TRIM1#

73136CCOVER, SHOULDER BELT ANCHOR, LH

main73024-30010-A0iMNH10..MZ200312-200504

IVORY,TRIM0#

main73024-30010-B2iMNH10..MS200312-200504

LT.GRAY,TRIM1#

7455CAUTION PLATE

→ Go to FIG 74-55

6792358010CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-58010

9011906869

main90119-06869

9046709204

main90467-09204

9046709206

main90467-09206

9046710161

main90467-10161

9046710167

main90467-10167

9046710188

main90467-10188

9046712080

main90467-12080

9046805125

main90468-05125

9356014010

main93560-14010

38 parts on this diagram · 2 diagrams in section
