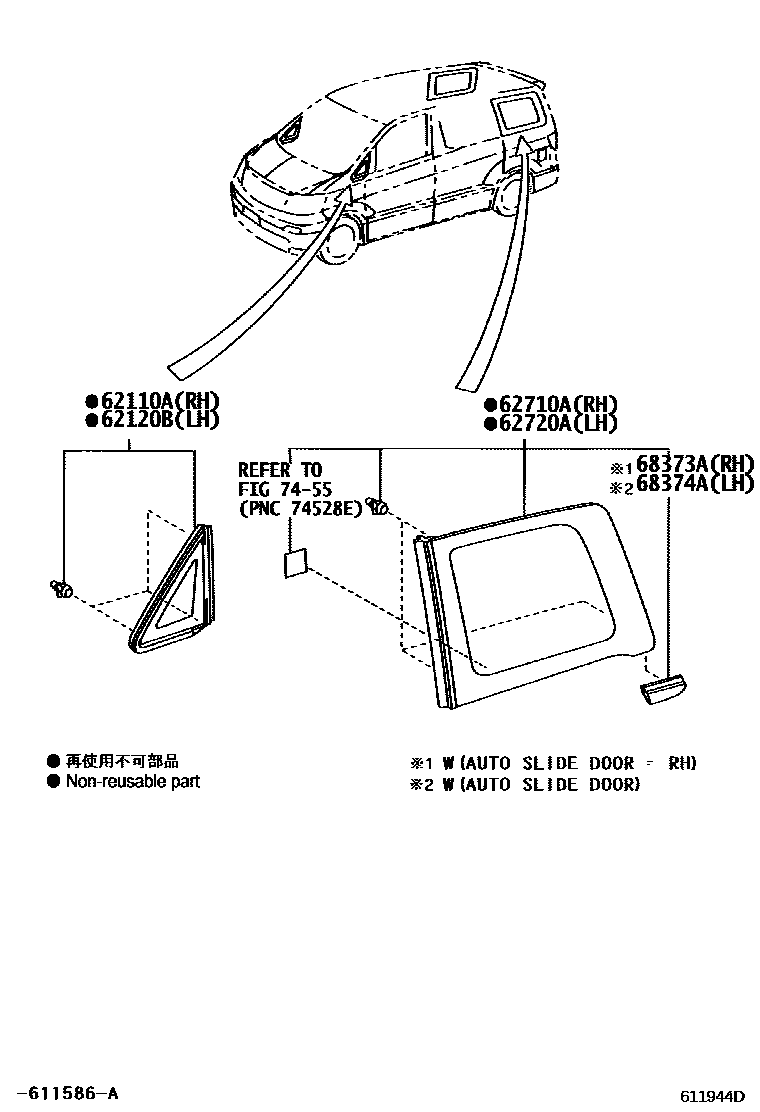

SIDE WINDOW

62110AWINDOW ASSY, FRONT SIDE FIX, RH

main62110-58011i200312-200504

62120BWINDOW ASSY, FRONT SIDE FIX, LH

main62120-58011i200312-200504

62710AWINDOW ASSY, QUARTER, RH

main62710-58071supersedes 62710-58031i200312-200504

*TEM,T=3.1,GREEN; *TEM,T=3.1,GREEN,WITH/*PW SLIDE DOOR(RH,LH)

*TEM,T=3.1,GREEN

62720AWINDOW ASSY, QUARTER, LH

main62720-58090supersedes 62720-58070i200312-200504

*TEM,T=3.1,GREEN; *TEM,T=3.1,GREEN,WITH/*PW SLIDE DOOR(RH,LH)

*TEM,T=3.1,GREEN

68373AMOULDING, SLIDE RAIL END, RH

main68373-58010i200312-200504

WITH/*PW SLIDE DOOR(RH,LH)

68374AMOULDING, SLIDE RAIL END, LH

main68374-58010i200312-200504

WITH/*PW SLIDE DOOR(RH,LH)

7455CAUTION PLATE

7 parts on this diagram · 1 diagram in section
