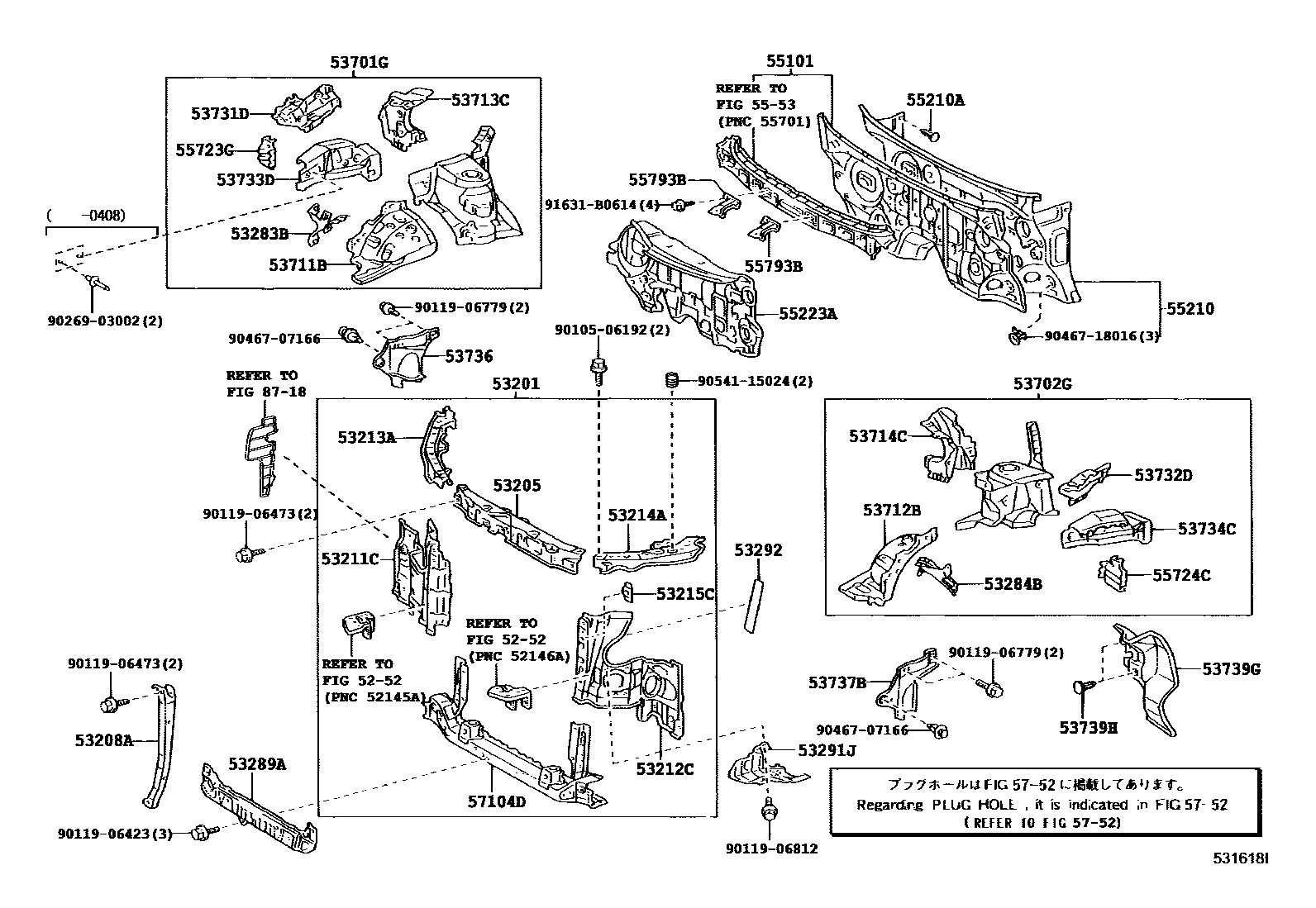

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

53201SUPPORT SUB-ASSY, RADIATOR

main53210-58010iMNH10200312-200504

main53210-58040iMNH10200504

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-58010iMNH10200312-200504

main53205-58030iMNH10200504

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53217-58020iMNH10200312-200504

53211CSUPPORT, RADIATOR, RH

main53211-58011iMNH10200312-200501

main53211-58012iMNH10200501-200504

53212CSUPPORT, RADIATOR, LH

main53212-58011iMNH10200312-200502

main53212-58012iMNH10200502-200504

53213ASUPPORT, RADIATOR, UPPER RH

main53213-58010iMNH10200312-200504

53214ASUPPORT, RADIATOR, UPPER LH

main53214-58010iMNH10200312-200504

53215CBRACKET, BATTERY SUPPORT, NO.1

main53215-58010iMNH10200312-200502

main53215-58020iMNH10200502-200504

53283BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 RH

main53283-58010iMNH10200312-200504

53284BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 LH

main53284-58010iMNH10200312-200504

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-58010iMNH10200312-200504

main53289-58030iMNH10200504

53291JSEAL, RADIATOR SUPPORT

main53292-58010iMNH10200312-200504

53292SEAL, RADIATOR SUPPORT TO FRAME, LH

main53291-58010iMNH10200312-200804

53701GAPRON SUB-ASSY, FRONT FENDER, RH

main53701-58010iMNH10200312-200504

main53701-58030iMNH10200504

53702GAPRON SUB-ASSY, FRONT FENDER, LH

main53702-58010iMNH10200312-200504

53711BAPRON, FRONT FENDER, FRONT RH

main53711-58010iMNH10200312-200504

53712BAPRON, FRONT FENDER, FRONT LH

main53712-58010iMNH10200312-200504

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53707-58010iMNH10200312-200504

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53708-58010iMNH10200312-200504

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-58010iMNH10200312-200504

main53731-58020iMNH10200504

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-58010iMNH10200312-200504

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-58010iMNH10200312-200504

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-58010iMNH10200312-200504

53736SEAL, FRONT FENDER APRON, RH

main53736-33030iMNH10200312-200504

53737BSEAL, FRONT FENDER APRON, LH

main53737-28020iMNH10200312-200504

53739GSEAL, FRONT FENDER APRON, REAR LH

main53739-58010iMNH10200312-200504

53739HCLIP(FOR FRONT FENDER APRON SEAL)

main90467-08188iMNH10200312-200504

55101PANEL SUB-ASSY, DASH

main55101-58020iMNH10..MZ200312-200504

W(TWIN MOON ROOF)

main55101-58060iMNH10200504

55210INSULATOR ASSY, DASH PANEL

main55210-58010iMNH10200312-200504

main55210-58030iMNH10200504

55210ACLIP

main90467-07049-C0iMNH10..MS200312-200504

BLACK,TRIM1#

main90467-07049-C0iMNH10..MZ200312-200504

BLACK,TRIM0#

main90467-07049-C0iMNH10200504-200804

BLACK

55223AINSULATOR, DASH PANEL, OUTER

main55223-58010iMNH10200312-200705

main55223-58011iMNH10200706

5553COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-53

55723GGUSSET, FRONT PANEL, RH

main55723-58010iMNH10200312-200504

55724CGUSSET, FRONT PANEL, LH

main55724-58010iMNH10200312-200504

55793BCOVER, WIPER MOTOR SERVICE HOLE

main55793-58010iMNH10200312-200504

RH

main55793-58020iMNH10200312-200504

LH

57104DMEMBER SUB-ASSY, FRONT CROSS

main57104-58010iMNH10200312-200501

main57104-58030iMNH10200502-200504

5752HOLE PLUG

→ Go to FIG 57-52

8718HEATING & AIR CONDITIONING - COOLER PIPING

→ Go to FIG 87-18

9010506192

main90105-06192

9011906423

main90119-06423

9011906473

main90119-06473

9011906779

main90119-06779

9011906812

main90119-06812

9026903002

main90269-03002

9046707166

main90467-07166

9046718016

main90467-18016

9054115024

main90541-15024

91631B0614

main91631-B0614

49 parts on this diagram · 2 diagrams in section
