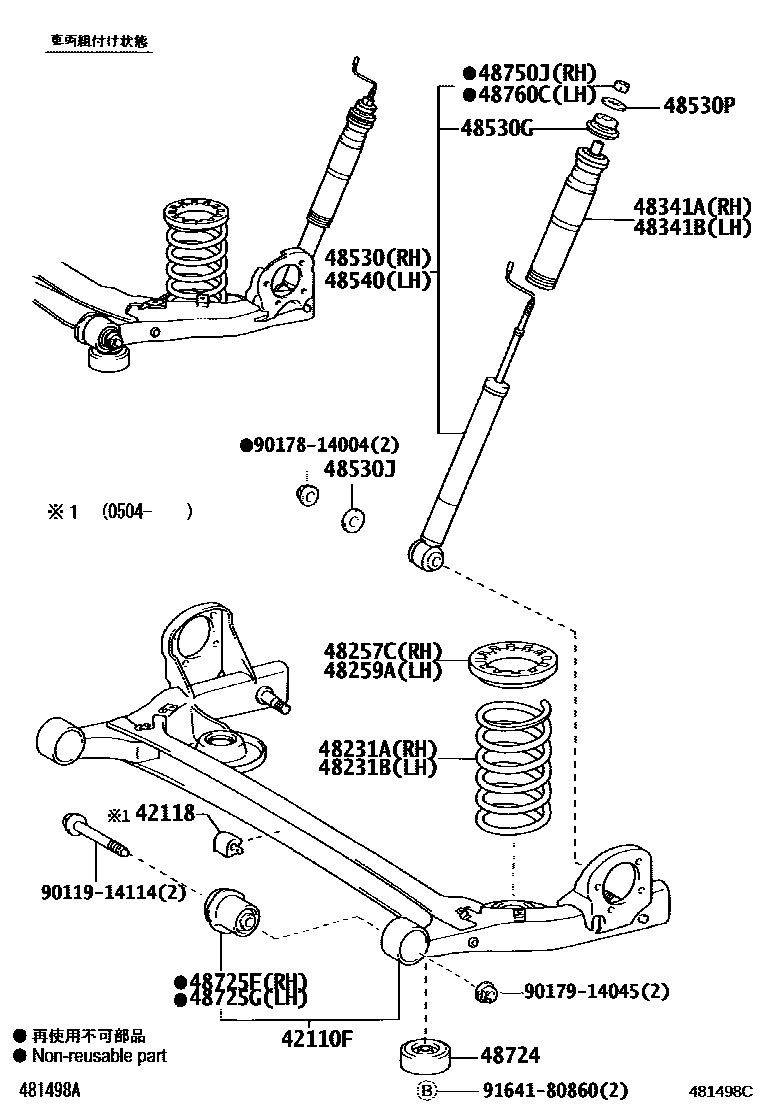

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42110-58010iMNH10200504-200804

42118DAMPER, REAR AXLE BEAM

main42118-58010iMNH10200504-200605

48231ASPRING, COIL, REAR RH

main48231-58020iMNH10..MZ200504

main48231-58040iMNH10..MS200312-200504

48231BSPRING, COIL, REAR LH

main48231-58020iMNH10..MZ200312-200504

main48231-58040iMNH10..MS200312-200504

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-28060iMNH10200312-200504

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-28060iMNH10200312-200504

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-28100iMNH10200312-200504

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-28100iMNH10200312-200504

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-59625iMNH10200312-200504

main48530-80398iMNH10200605-200804

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90905-40019×2iMNH10200312-200504

48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)

main90560-14028×2iMNH10200404-200504

main90948-02060×2iMNH10..4FC200312-200403

48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)

main90948-02159×2iMNH10200312-200504

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-59625iMNH10200312-200504

main48530-80398iMNH10200605-200804

48724DAMPER, LWR CONTROL ARM DYNAMIC

main48724-44010×2iMNH10200312-200504

48725FBUSH, REAR AXLE CARRIER, RH

main48725-58010iMNH10200312-200504

48725GBUSH, REAR AXLE CARRIER, LH

main48725-58010iMNH10200312-200504

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90170-12045iMNH10200312-200504

main94130-61200iMNH10200709

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90170-12045iMNH10200312-200504

main94130-61200iMNH10200709

9011914114

main90119-14114

9017814004

main90178-14004

9017914045

main90179-14045

9164180860

main91641-80860

22 parts on this diagram · 1 diagram in section
