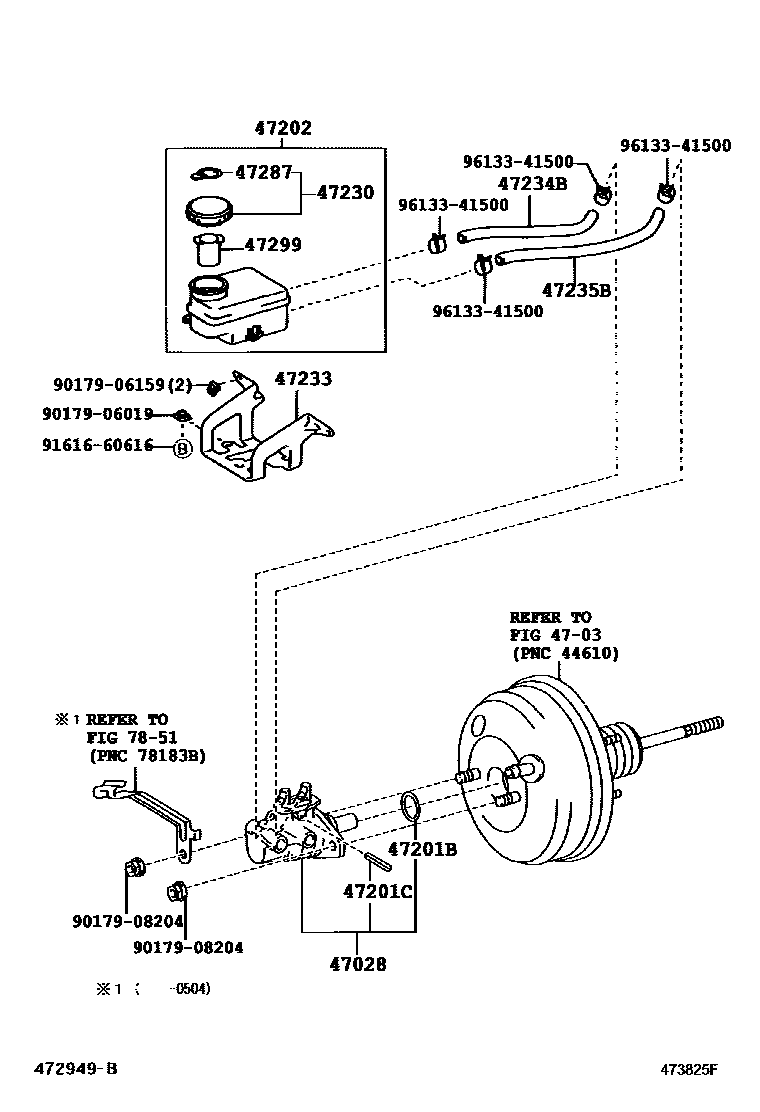

BRAKE MASTER CYLINDER

0001 1 0002 1

47028CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE

main47028-58010iMNH10200312-200504

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iMNH10200312-200804

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iMNH10200312-200804

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-28230iMNH10..MZ200312-200504

main47220-28240iMNH10..MS200312-200504

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20100iMNH10..MZ200312-200504

main47230-28240iMNH10..MS200312-200504

47233BRACKET, RESERVOIR

main47233-58010iMNH10200312-200504

47234BTUBE, RESERVOIR, NO.1

main47234-58010iMNH10200312-200804

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-58010iMNH10200312-200504

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iMNH10200312-200804

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iMNH10200312-200504

7851ACCELERATOR LINK

→ Go to FIG 78-51

9017906019

main90179-06019

9017906159

main90179-06159

9017908204

main90179-08204

9161660616

main91616-60616

9613341500

main96133-41500

17 parts on this diagram · 2 diagrams in section
