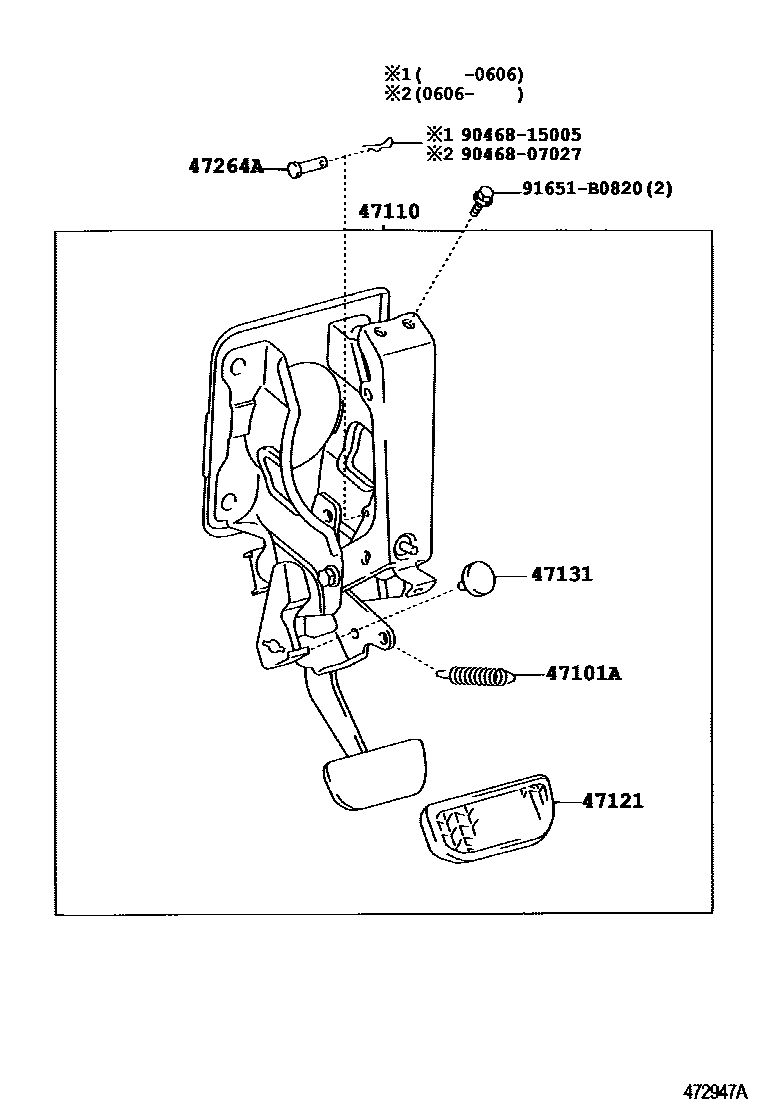

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-20075iMNH10200312-200504

47110SUPPORT ASSY, BRAKE PEDAL

main47110-58010iMNH10200312-200504

47121PAD, BRAKE PEDAL

main47121-52010iMNH10200312-200504

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06049iMNH10200312-200504

47264APIN(FOR PUSH ROD)

main90240-06023iMNH10200312-200504

main90240-06027iMNH10200606

9046807027

main90468-07027

9046815005

main90468-15005

91651B0820

main91651-B0820

8 parts on this diagram · 1 diagram in section
