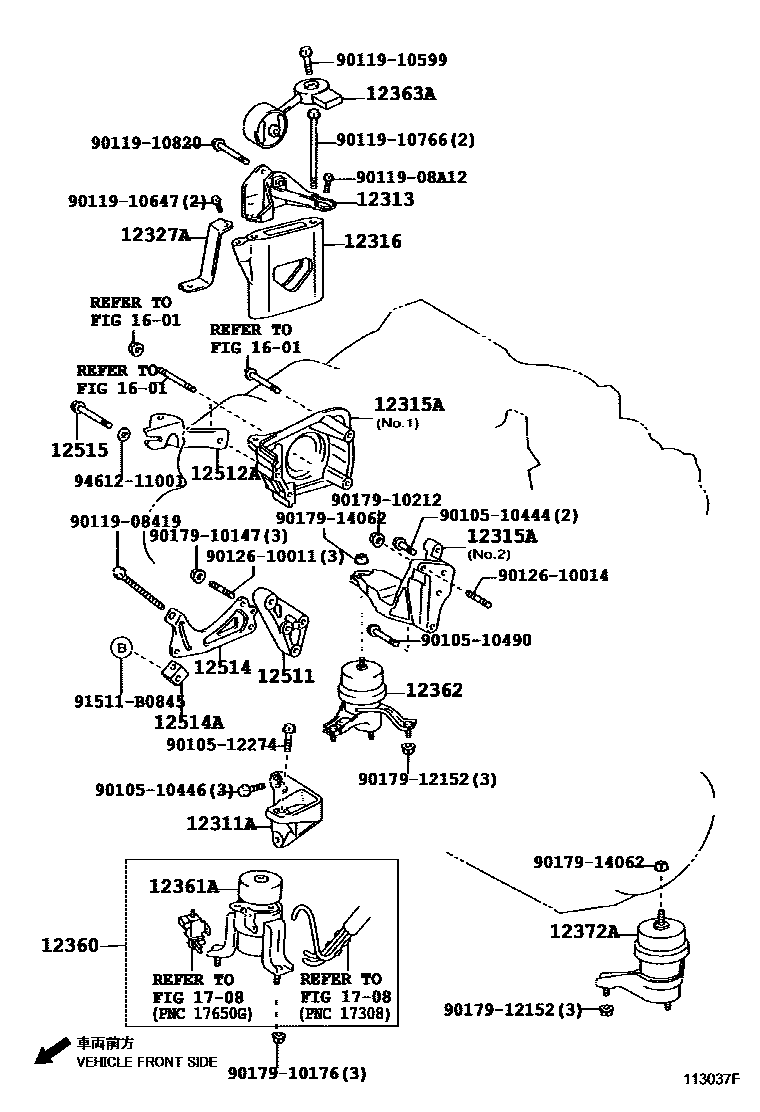

MOUNTING

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-20060i200312-200504

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-20060i200312-200504

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-20020i200312-200504

NO.1

main12315-20030i200504

NO.2

12316BRACKET, ENGINE MOUNTING, NO.2 RH

main12316-20020i200312-200504

12327ASTAY, ENGINE MOUNTING, NO.2 RH

main12327-20020i200312-200504

12360INSULATOR ASSY, ENGINE MOUNTING, FRONT

main12360-20100i200312-200504

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-20140i200312-200504

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-20010i200312-200504

12363AROD, ENGINE MOVING CONTROL

main12363-20070i200312-200504

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-20060i200312-200504

12511BRACKET, ALTERNATOR, NO.1

main12511-20020i200312-200504

12512ABRACKET, ALTERNATOR, NO.2

main12512-20020i200312-200504

12514BAR, ALTERNATOR BELT ADJUSTING

main12514-20010i200312-200504

12514ASLIDER, FAN BELT ADJUSTING

main16385-20010i200312-200504

12515BOLT, ALTERNATOR THROUGH

main12515-20010i200312-200504

1601WATER PUMP

→ Go to FIG 16-01

1708VACUUM PIPING

→ Go to FIG 17-08

9010510444

main90105-10444

9010510446

main90105-10446

9010510490

main90105-10490

9010512274

main90105-12274

9011908419

main90119-08419

9011908A12

main90119-08A12

9011910599

main90119-10599

9011910647

main90119-10647

9011910766

main90119-10766

9011910820

main90119-10820

9012610011

main90126-10011

9012610014

main90126-10014

9017910147

main90179-10147

9017910176

main90179-10176

9017910212

main90179-10212

9017912152

main90179-12152

9017914062

main90179-14062

91511B0845

main91511-B0845

9461211001

main94612-11001

36 parts on this diagram · 1 diagram in section
