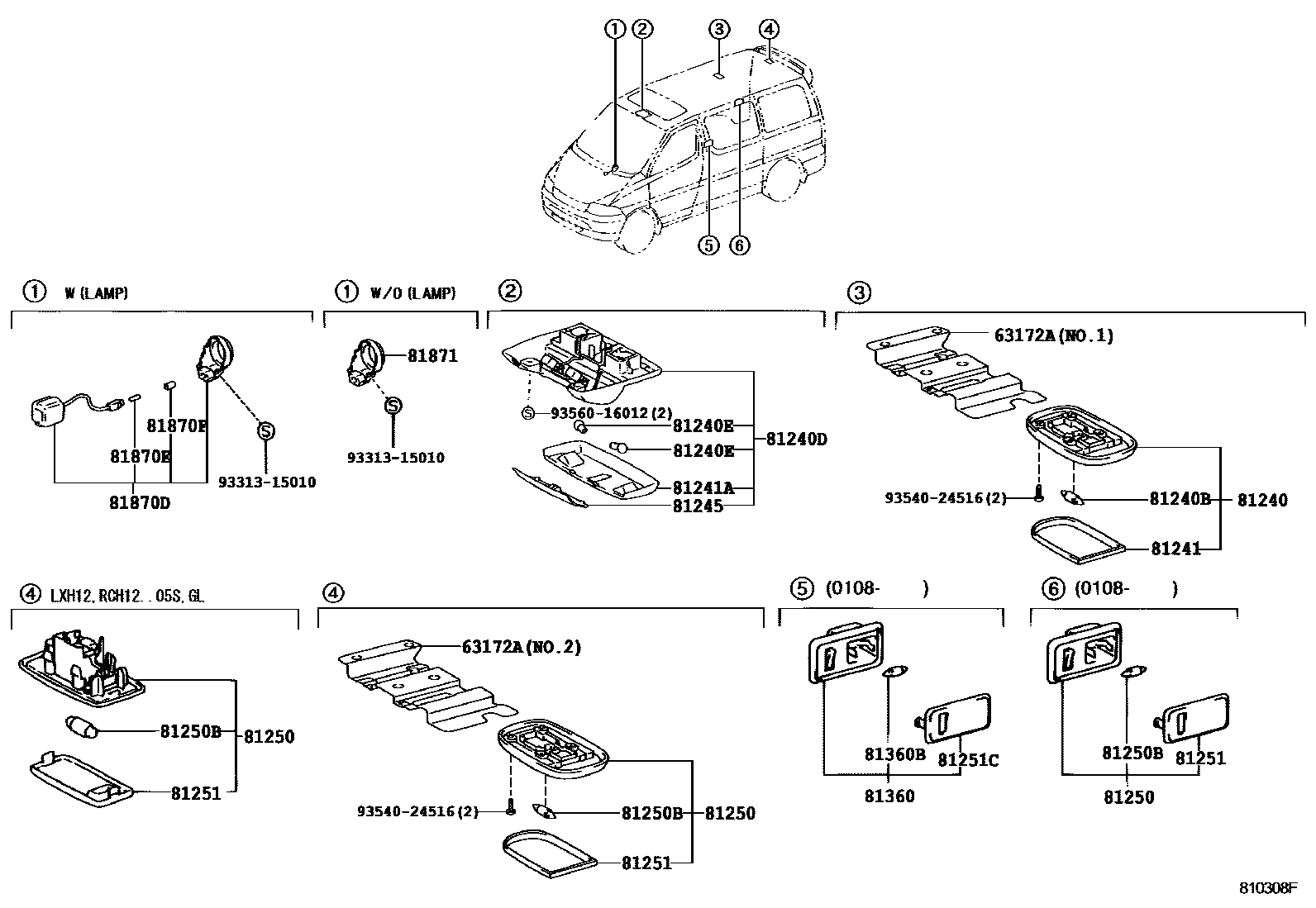

INTERIOR LAMP

63172ABASE, ROOM LAMP

main63172-26030199508-201111

main63182-26010200808-201111

81240LAMP ASSY, ROOM, NO.1

main81240-12020-B3199508-199809

main81240-12020-B4199809-201010

main81240-12060-P0201010-201111

81240BBULB, ROOM LAMP, NO.1

main90981-14011201010

main99132-12100199508-201010

81240DLAMP ASSY, ROOM, NO.2

main81240-95J08-B0199508-199708

main81240-95J08-B2199708-199907

main81240-95J08-B7199907-201010

81240EBULB, ROOM LAMP, NO.2

main90981-12020199508-201010

81241LENS, ROOM LAMP, NO.1

main81241-12020199508-200608

81241ALENS, ROOM LAMP, NO.2

main81241-95J08199508-201010

81245COVER, ROOM LAMP, NO.2

main81245-95J07-B0199508-199907

main81245-95J07-B1199907-201010

81250LAMP ASSY, ROOM, NO.2

main81240-12020-B4200808-201010

main81240-12060-P0201010-201111

main81250-13020-B3199508-200608

main81250-13020-B5199708-200608

main81250-26040-B0199603-199608

main81250-95J05-B0200108-200608

main81250-95J05-B3200412-201010

81250BBULB, ROOM LAMP, NO.2

main90981-11021199708-199907

main90981-14011201010

main99132-12100200808-201010

main99132-13050199508-201010

81251LENS, ROOM LAMP, NO.2

main81241-12020200808

main81251-12030199508-201010

81251CLENS, REAR ROOM LAMP, RH NO.2

main81251-12030200108-201010

81360LAMP ASSY, STEP OR SPOT

main81250-95J05-B0200108-200608

main81250-95J05-B3200501-201010

81360BBULB, STEP OR SPOT LAMP

main99132-13050200108-201010

81870DLAMP ASSY, KEY CYLINDER

main81870-26010199508-199703

main81870-26011199703-199907

81870EBULB, KEY CYLINDER LAMP

main90981-11014199508-199907

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10070199508-199708

81871LENS, KEY ILLUMINATION

main81871-95J00199508-200608

9331315010

main93313-15010

9354024516

main93540-24516

9356016012

main93560-16012

21 parts on this diagram · 1 diagram in section
