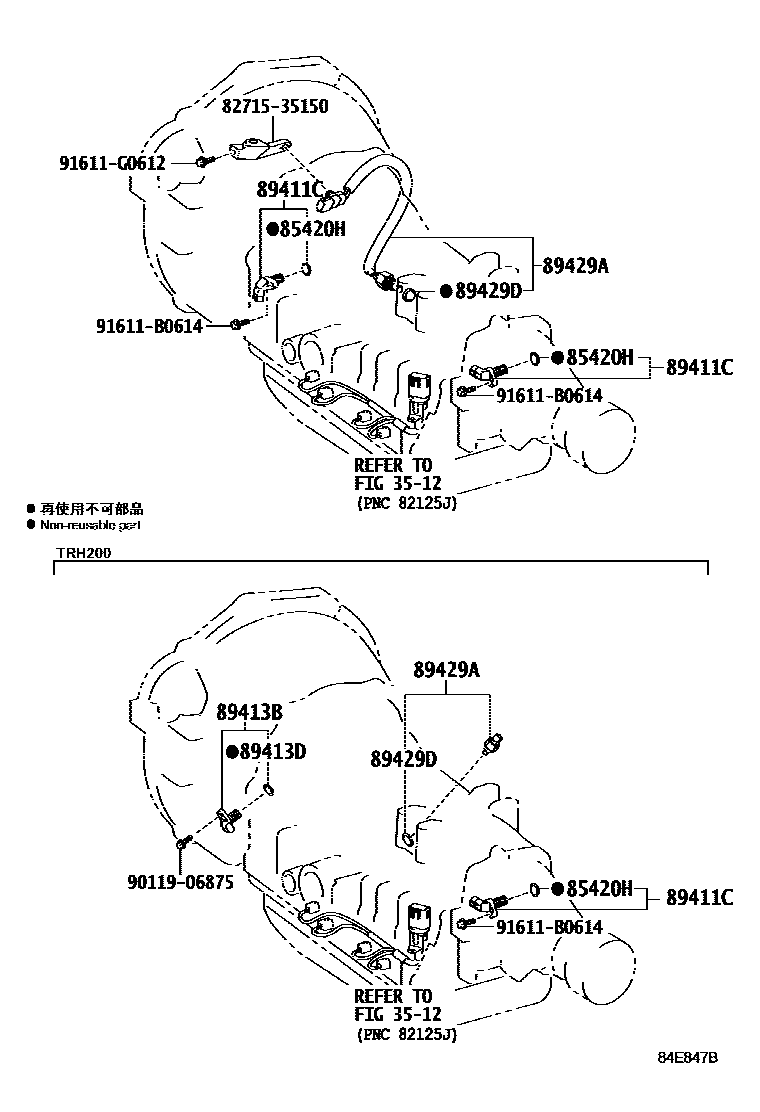

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

85420HRING, O(FOR SPEED SENSOR)

main90301-11008iTRH200; TRH201,22#..RHD..4FC201312-201501

89411CSENSOR, SPEED

main89411-50010iTRH200; TRH201,22#..RHD..4FC201312-201501

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-12020×2iTRH200,201,22#..(02S,03S,05S,14S)..6FC201501-202507

main89413-22010iTRH200201312-201501

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008×2iGDH201,223,TRH201,22#..6FC201501

89429ASENSOR, TEMPERATURE

main89429-25010iKDH201..SP..06S..4FC201312-201612

main89429-34010iKDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN)201312-201606

main89429-35090iTRH223..10S;TRH213..4FC..GCC201312-201612

89429DRING, O(FOR TEMPERATURE SENSOR)

main90301-11006iTRH203..4FC201312-201901

8271535150BRACKET,WIRING HARNESS CLAMP

main82715-35150

9011906875

main90119-06875

91611B0614

main91611-B0614

91611G0612

main91611-G0612

11 parts on this diagram · 6 diagrams in section
