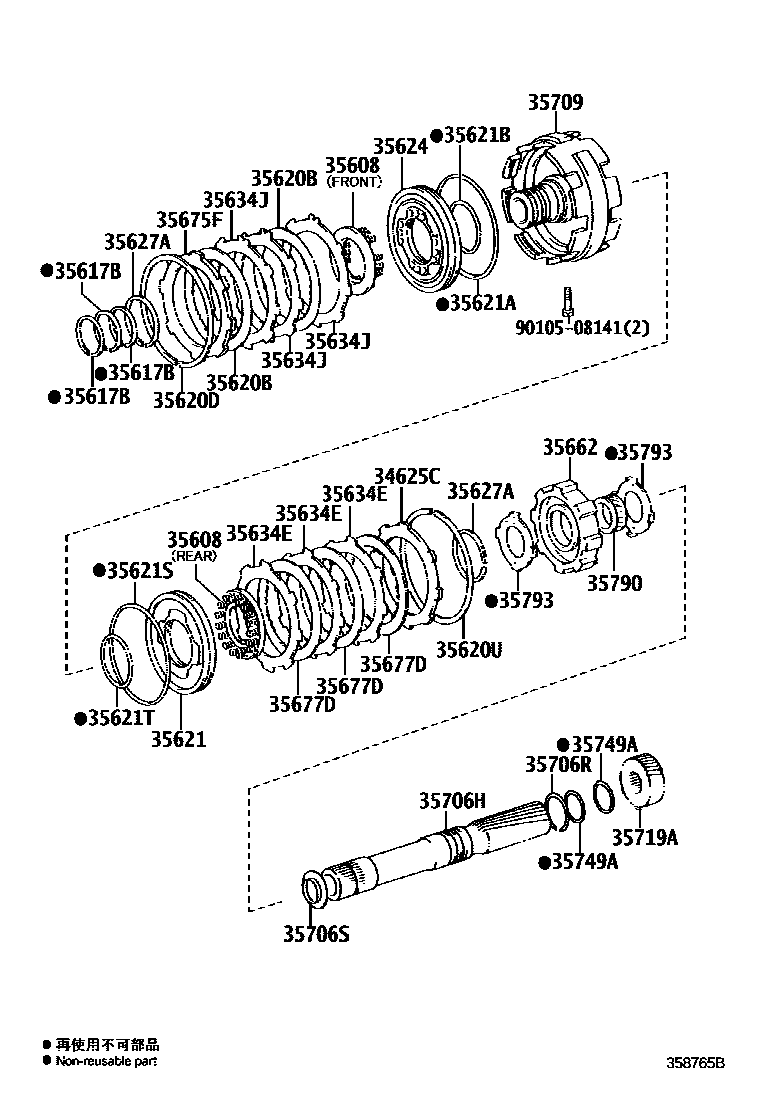

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
34625CFLANGE, OVERDRIVE BRAKE
35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
FRONT
REAR
35617BRING, CLUTCH DRUM OIL SEAL
35620BDISC, CLUTCH (FOR BRAKE)
35620DRING (FOR BRAKE)
35620URING (FOR REAR BRAKE)
35621PISTON, BRAKE, NO.1
35621ARING, O (FOR BRAKE PISTON OUTER)
35621BRING, O (FOR BRAKE PISTON INNER)
35621SRING (FOR REAR BRAKE PISTON OUTER)
35621TRING (FOR REAR BRAKE PISTON INNER)
35627ARING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)
35634EPLATE, CLUTCH (FOR BRAKE)
35634JPLATE, CLUTCH, NO.3
35662HUB, BRAKE
35675FFLANGE, CLUTCH (FOR BRAKE)
35677DISC, CLUTCH (FOR 2ND BRAKE)
35677DDISC, CLUTCH (FOR REAR BRAKE)
35706HGEAR SUB-ASSY, PLANETARY SUN
35706RRING, SHAFT SNAP (FOR PLANETARY SUN GEAR)
35706SRACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)
35709SUPPORT SUB-ASSY, CENTER
35719AGEAR, REAR PLANETARY SUN
35749ARING, SUN GEAR SHAFT OIL SEAL
35790CLUTCH ASSY, 1 WAY
35793RETAINER, 1 WAY CLUTCH
9010508141
main90105-08141
28 parts on this diagram · 3 diagrams in section
