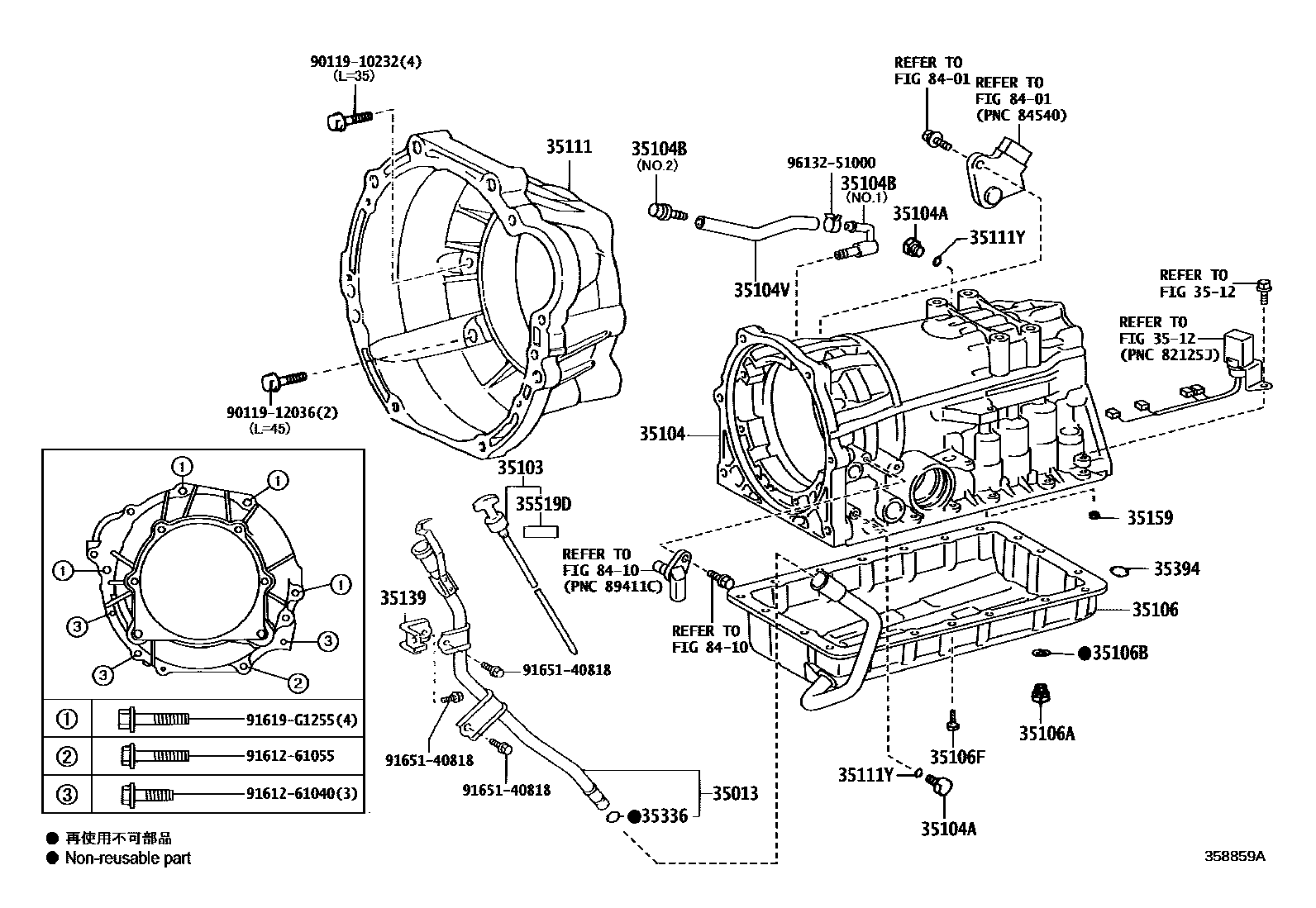

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A343E 0002 1A45DE 0003 1A340E 0004 1AC60E

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-26360iTRH200201312-201501

main35013-26370iTRH201,22#..RHD..4FC201312-201501

main35013-26390iKDH201,213,221,222,223..4FC201312-201607

main35013-26391iKDH201..SP..06S..4FC201608-201612

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-26320iTRH200201312-201501

main35103-26330iTRH203..4FC201908-202004

main35103-26370iTRH223..13S201312-201902

main35103-26380iKDH221..4FC201312-201902

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22060iTRH200201312-201501

main35104-26061iKDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN)201312-201606

main35104-26071iTRH203,223..4FC201908-202004

main35104-35022iKDH201..SG..4FC;KDH201..4FC..ARL;KDH221,223..4FC..STD..(ARL,GEN)201606-202301

main35104-71020iGDH201,223,TRH201,22#..6FC201501

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iTRH223..4FC..STD..GCC201312-201902

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03098iKDH213..TH201312-201906

NO.1

main90930-03168iKDH213..TH201312-201906

NO.2

main90930-03211iGDH201,223,TRH201,22#..6FC201501

35104VHOSE (FOR BREATHER PLUG)

main90445-10020iKDH213201911-202301

main90445-11118iTRH203..4FC201312-201901

main90445-11145iTRH200201312-201501

main90447-11081iGDH201,223201701

main90447-11082iTRH200,201,22#..(02S,03S,05S,14S)..6FC201501-202507

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-25050iTRH200201312-201501

main35106-26090iTRH223..4FC..GL;TRH223..4FC..ARL;TRH201,213,221..4FC201312-202004

main35106-26100iKDH213..4FC..GEN;KDH201,212,221,222,223..4FC201312-202301

main35107-26010iTRH200201501-202107

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iTRH203..4FC201312-201901

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iTRH203..4FC201312-201901

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06173×14iTRH200201312-201501

main90119-06513×19iTRH203..4FC201312-201901

main90119-06A02×10iTRH200..03S..6FC201501-202507

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-26040iKDH213..4FC..GEN;KDH201,212,221,222,223..4FC201312-202301

main35111-26070iTRH200201312-201501

main35111-26080iGDH201,223201701

main35111-71010iTRH203,223..4FC201908-202004

main35111-71040iTRH200,201,22#..(02S,03S,05S,14S)..6FC201501-202507

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iTRH203..4FC201312-201901

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35139BRACKET, OIL FILLER TUBE

main35139-26020iTRH200,201,22#..RHD..4FC201312-201501

35159GASKET, BRAKE DRUM

main35159-30010iTRH203,223..4FC201908-202301

main35159-71010×2iTRH200201501-202107

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iKDH213,222,223,TRH213..4FC..GL201312-201906

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×3iTRH203..4FC201312-201901

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iKDH201,223..(03S,14S)..4FC..STD201312-202301

main35519-28041iTRH223..13S201312-201902

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9011910232

main90119-10232

9011912036

main90119-12036

9161261040

main91612-61040

9161261055

main91612-61055

91619G1255

main91619-G1255

9165140818

main91651-40818

9613251000

main96132-51000

27 parts on this diagram · 4 diagrams in section
