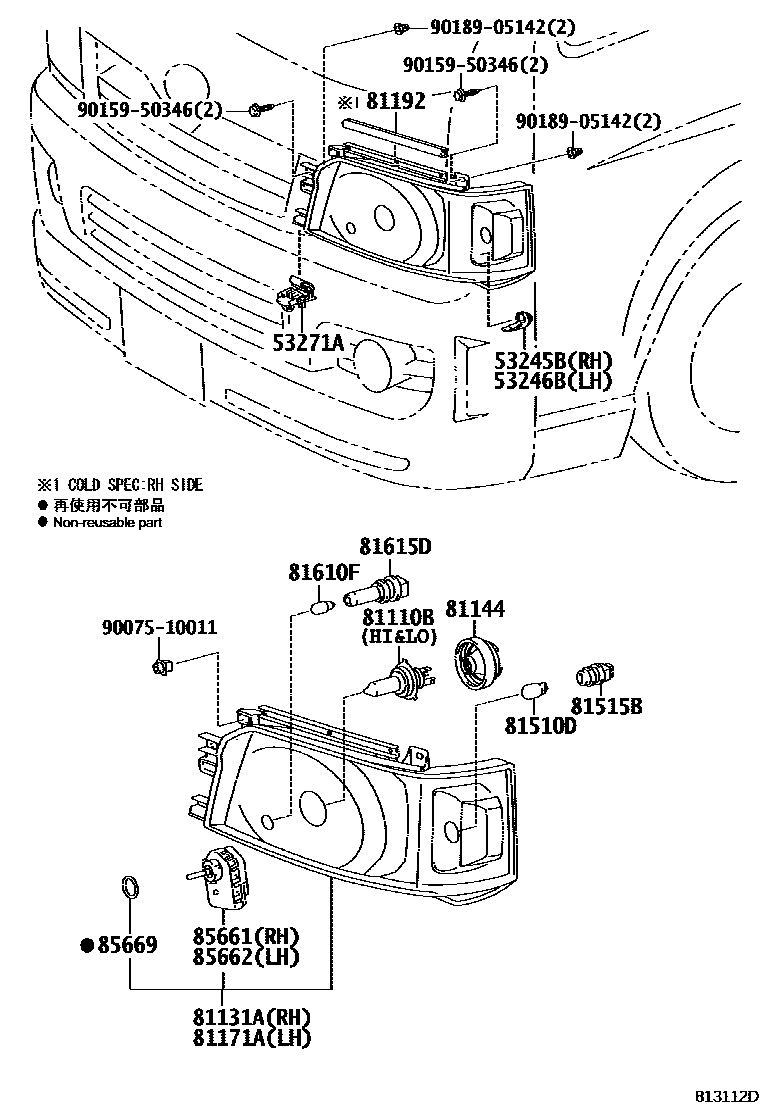

HEADLAMP

0001 1 0002 1

53245BBRACKET, HEADLAMP, RH

main53245-26040iKDH203201312-201402

53246BBRACKET, HEADLAMP, LH

main53246-26020iKDH203201312-201402

53271ABRACKET, HEADLAMP MOUNTING

main53271-12060×2iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201008

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058×2iKDH203..GEN;KDH200,201,202,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

12V 60/55W,HALOGEN

81131AUNIT, HEADLAMP, RH

main81130-26400iKDH200,202,LH20#,TRH20#..LHD200501-201008

main81130-26420iKDH20#,LH20#,TRH20#..RHD200501-201008

main81130-26440iKDH212,22#,LH212,222,TRH213,22#..RHD200501-201008

main81130-26450iTRH213..GL..VN;TRH213..LHD..(09S,16S);KDH212,220,222,LH212,222,TRH22#..LHD..(03S,10S,11S,16S)200501-201008

main81130-26460iTRH213,223..LHD..(10S,12S,13S); TRH223..5F..GL..GEN200501-200611

CHINA(PRC) SPEC&COLD AREA SPEC

main81130-26461iKDH212,222,TRH213,22#..GCC; TRH213,223..(10S,12S,13S)..(CIS,GEN)200612-201008

HEADLAMP LEVELING DEVICE-WITH

main81130-26570iKDH203201312-201401

main81130-26580iKDH212,22#,LH212,222,TRH213,22#..RHD201008-201402

main81130-26620iKDH223,TRH213,223..(10S,12S,13S)..(CIS,GEN,RUS); TRH223..16S..GL;TRH223..STD..GCC;KDH212,222,TRH213,221..GCC201008-201312

HEADLAMP LEVELING DEVICE-WITH

main81130-26630iKDH20#,LH20#,TRH201,203..LHD201008-201312

main81130-26640iTRH213..GL..GEN; TRH213..GL..VN;KDH212,220,222,LH212,222,TRH213,22#..LHD..(03S,11S,16S)201008-201312

MEXICO SPEC

main81130-26410iKDH20#,TRH20#..GCC200501-200512

SAUDI ARABIA SPEC

main81130-26600iKDH222..RHD..GEN201205-201312

INDONESIA SPEC

main81130-26610iKDH200,202,TRH201,203..GCC201008-201312

HEADLAMP LEVELING DEVICE-WITH

81144COVER, HEADLAMP, NO.1

main90075-65002×2iKDH203..GEN;KDH200,201,202,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

81171AUNIT, HEADLAMP, LH

main81170-26400iKDH200,202,LH20#,TRH20#..LHD200501-201008

main81170-26420iKDH20#,LH20#,TRH20#..RHD200501-201008

main81170-26440iKDH212,22#,LH212,222,TRH213,22#..RHD200501-201008

main81170-26450iTRH213..GL..VN;TRH213..LHD..(09S,16S);KDH212,220,222,LH212,222,TRH22#..LHD..(03S,10S,11S,16S)200501-201008

main81170-26460iTRH213,223..LHD..(10S,12S,13S); TRH223..5F..GL..GEN200501-200611

CHINA(PRC) SPEC&COLD AREA SPEC

main81170-26461iKDH212,222,TRH213,22#..GCC; TRH213,223..(10S,12S,13S)..(CIS,GEN)200612-201008

HEADLAMP LEVELING DEVICE-WITH

main81170-26570iKDH203..14S;KDH200,201,202,LH20#,TRH20#..RHD201008-201401

main81170-26580iKDH212,22#,LH212,222,TRH213,22#..RHD201008-201402

main81170-26620iKDH223,TRH213,223..(10S,12S,13S)..(CIS,GEN,RUS); TRH223..16S..GL;TRH223..STD..GCC;KDH212,222,TRH213,221..GCC201008-201312

HEADLAMP LEVELING DEVICE-WITH

main81170-26630iKDH20#,LH20#,TRH201,203..LHD201008-201312

main81170-26640iTRH213..GL..GEN; TRH213..GL..VN;KDH212,220,222,LH212,222,TRH213,22#..LHD..(03S,11S,16S)201008-201312

MEXICO SPEC

main81170-26410iKDH20#,TRH20#..GCC200501-200512

SAUDI ARABIA SPEC

main81170-26600iKDH222..RHD..GEN201205-201312

INDONESIA SPEC

main81170-26610iKDH200,202,TRH201,203..GCC201008-201312

HEADLAMP LEVELING DEVICE-WITH

81192SEAL, HEADLAMP

main81192-26010iTRH213,223..(10S,12S,13S)..(CIS,GEN); TRH221..SP..GEN;KDH202..LHD..12S..5F;KDH202,TRH223..(15S,16S)..GEN;KDH200,LH20#,TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S)..GEN; TRH223..5F..GL..GEN200501-201002

CHINA(PRC) SPEC&COLD AREA SPEC; COLD AREA SPEC

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201008

12V 21W,AMBER

main90981-15021×2iKDH203..GEN;KDH200,201,202,212,22#,LH20#,212,222,TRH20#,213,22#201008-201402

12V 21W,AMBER

main90981-13043×2iKDH200..5F..ARL;KDH220..4FC..GEN;KDH202,222..LHD..(12S,16S)..GEN;KDH20#,222,TRH201..SG..(06S,14S,15S)..(ARL,GEN);KDH220,TRH201,22#..(03S,14S,16S)..5F..(ARL,GEN);KDH200,LH20#,222,TRH203..(03S,12S,15S,16S)..GEN200501-200502

12V 21W,COLD AREA SPEC

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iKDH203..GEN;KDH200,201,202,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iKDH203..GEN;KDH200,201,202,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60046×2iKDH20#,22#,LH20#,212,222,TRH20#,213,22#200501-200504

main90075-60077×2iKDH203..GEN;KDH200,201,202,212,22#,LH20#,212,222,TRH20#,213,22#200505-201402

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010iTRH213,223..(10S,12S,13S)..(CIS,GEN); TRH223..5F..GL..GEN200612-200911

CHINA(PRC) SPEC&COLD AREA SPEC

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010iTRH213,223..(10S,12S,13S)..(CIS,GEN); TRH223..5F..GL..GEN200612-200911

CHINA(PRC) SPEC&COLD AREA SPEC

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iTRH213,223..(10S,12S,13S)..(CIS,GEN); TRH223..5F..GL..GEN200612-200911

CHINA(PRC) SPEC&COLD AREA SPEC

9007510011

main90075-10011

9015950346

main90159-50346

9018905142

main90189-05142

18 parts on this diagram · 2 diagrams in section
