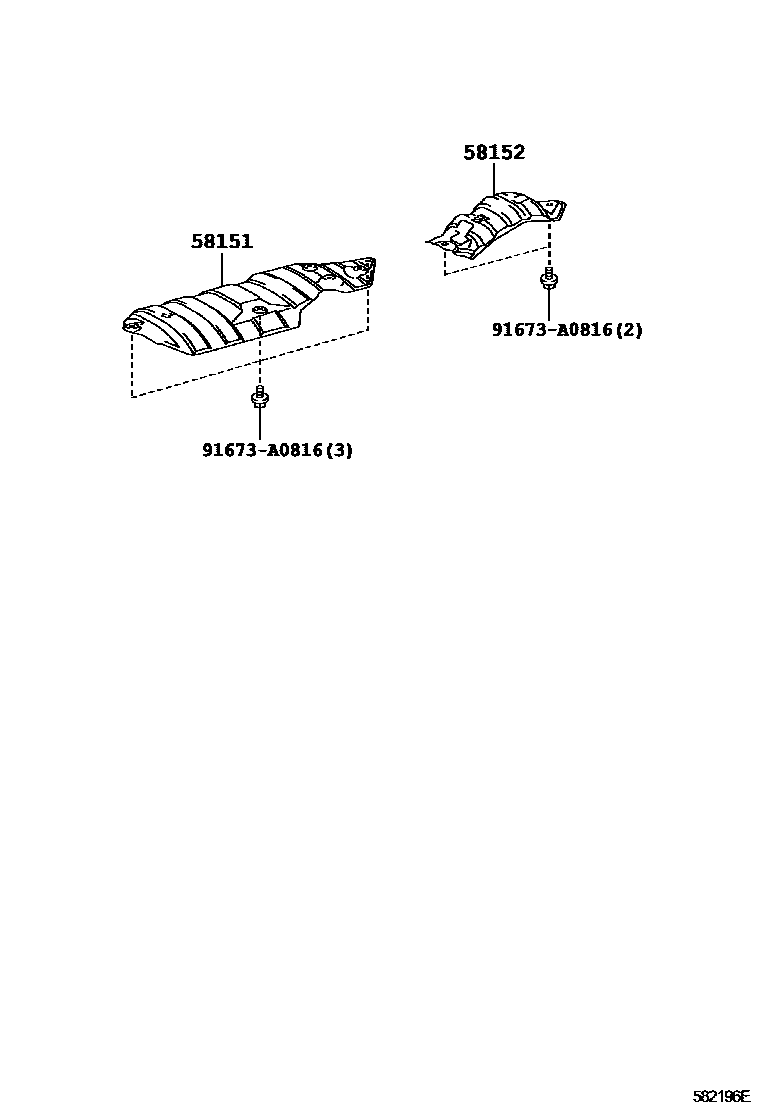

FLOOR INSULATOR

0001 1 0004 1 0007 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-26100iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-200806

main58151-26101iKDH222..TH200807-201205

58152INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2

main58152-26040iKDH222..TH200501-201205

91673A0816

main91673-A0816

3 parts on this diagram · 3 diagrams in section
