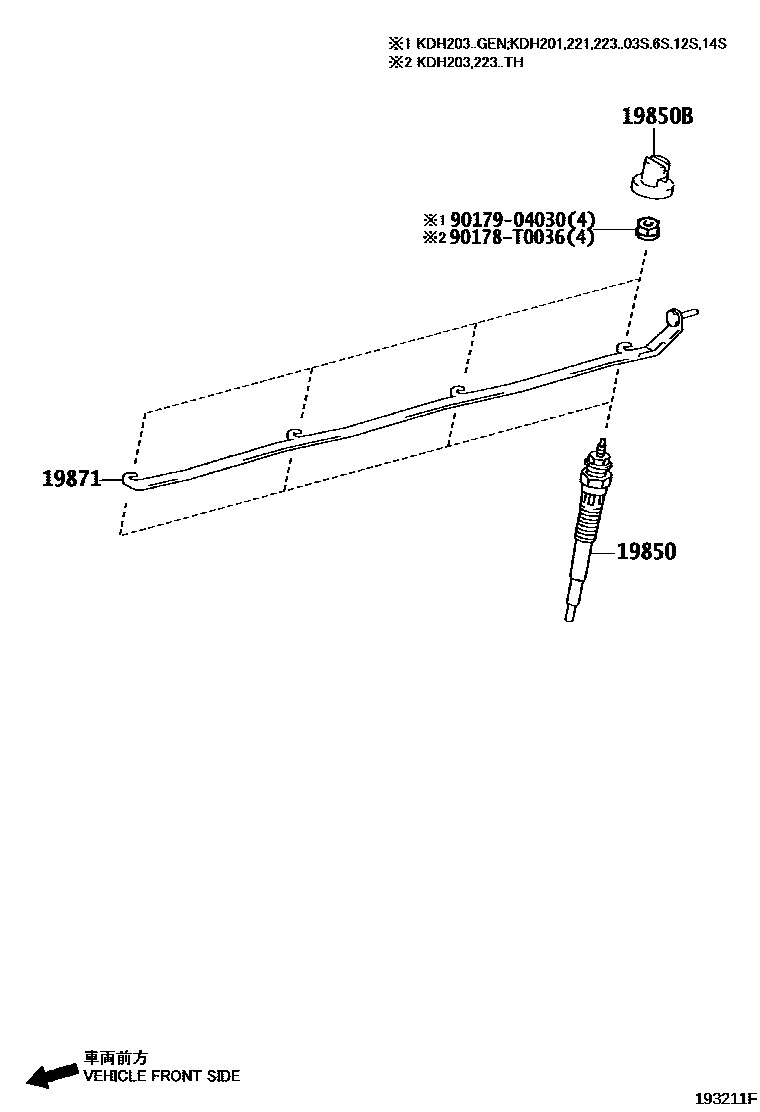

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0006 1 0008 1 0009 1

19850PLUG ASSY, GLOW

main19850-0L010×4i2KDFTV..KDH202..MA,TH;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN200508-201401

*BV-GV=12V-11V

main19850-30010×4i2KDFTV..KDH222..TH200501-201205

*BV-GV=12V-11V

main19850-30020×4i1KDFTV..KDH201..SP..06S200610-201110

*BV-GV=12V-11V

main19850-30040×4i1KDFTV..KDH201,203..LHD201212-201312

*BV-GV=12V-11V

main19850-54140×4i5LE..LH20#,212,222..03S,12S,15S,16S200501

*BV-GV=12V-11V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024×4supersedes 90189-T0001i1KDFTV..KDH201..SP..06S200501-201110

main90189-T0001×4i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508-201401

19871CONNECTOR, GLOW PLUG NO.1

main19871-0L011i2KDFTV..KDH202..MA,TH;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN200603-201402

main19871-30031i2KDFTV..KDH202..SRF..(GCC,GEN);2KDFTV..KDH200,212,220..ARL,GCC,GEN,SA,TH;1KDFTV,2KDFTV..KDH221,222..4D..(ARL,GCC,GEN,SA)200501-201401

main19871-30050i1KDFTV..KDH201..SP..06S201008-201110

main19871-30070i1KDFTV..KDH201,203..LHD201212-201312

main19871-54020i5LE..LH20#,212,222..03S,12S,15S,16S200501

90178T0036

main90178-T0036

9017904030

main90179-04030

5 parts on this diagram · 4 diagrams in section
