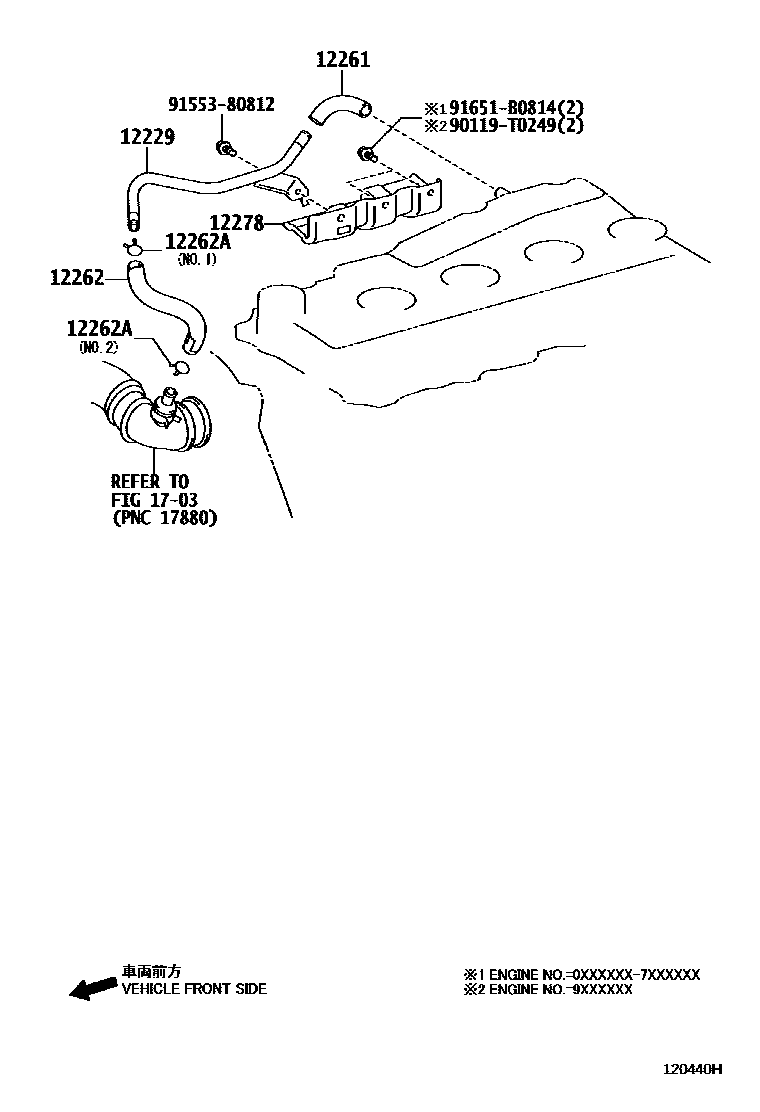

VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1 0005 1

12229PIPE, VENTILATION

main12229-0C010i2TRFE..TRH203..HRF200508

main12229-30030i2KDFTV..KDH200,202,212,220,222; 2KDFTV..KDH200,202..RHD..SRF..4D..(03S,12S)..5F..GEN; 2KDFTV..KDH200..RHD..4D..5F..GEN200501

CKD PACKAGE(MALAYSIA); CKD PACKAGE(THAILAND)

main12229-30090i1KDFTV..KDH223..RUS201205

main12229-30100i1KDFTV..KDH223..TH200709-201310

main12229-30140i1KDFTV..KDH223..TH201310

main12229-75030i2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)200501

12261HOSE, VENTILATION

main12261-0C010i2TRFE..TRH213..VN200508-201205

main12261-0L030i1KDFTV..KDH223..TH201310

main12261-30040i1KDFTV..KDH203,223..ARL,GEN,RUS;1KDFTV,2KDFTV..KDH200,201,202,212,220,221,222; 2KDFTV..KDH200,202..RHD..SRF..4D..(03S,12S)..5F..GEN; 2KDFTV..KDH200..RHD..4D..5F..GEN200501

CKD PACKAGE(MALAYSIA); CKD PACKAGE(THAILAND)

main12261-54200i5LE..LH212..10S200501-200810

main12261-75090i2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)200501

12262HOSE, VENTILATION, NO.2

main12262-30020i2KDFTV..KDH200,202,212,220,222; 2KDFTV..KDH200,202..RHD..SRF..4D..(03S,12S)..5F..GEN; 2KDFTV..KDH200..RHD..4D..5F..GEN200501

CKD PACKAGE(MALAYSIA); CKD PACKAGE(THAILAND)

main12262-30060i1KDFTV..KDH203..GEN;1KDFTV..KDH201,221,223..03S,06S,12S,14S200709

main12262-30090i1KDFTV..KDH203..TH201309

main12262-75210i1TRFE,2TRFE..TRH20#,213,22#200501-201402

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004i1TRFE,2TRFE..TRH20#,213,22#200501-201402

NO.1

main90467-22010i2KDFTV..KDH200..ARL;2KDFTV..KDH22#..03S,14S;2KDFTV..KDH200..06S..GEN200603-200610

NO.1

main90467-23002i2KDFTV..KDH200,222..TH;2KDFTV..KDH202..GL..TH200603-201309

NO.2

main90467-24038i1TRFE,2TRFE..TRH20#,213,22#200501-201402

NO.2

12278INSULATOR, VENTILATION HOSE HEAT

main12278-30040i2KDFTV..KDH202..STD..TH;2KDFTV..KDH200..03S..4FC..GEN200501-201008

1703AIR CLEANER

→ Go to FIG 17-03

90119T0249

main90119-T0249

9155380812

main91553-80812

91651B0814

main91651-B0814

9 parts on this diagram · 5 diagrams in section
