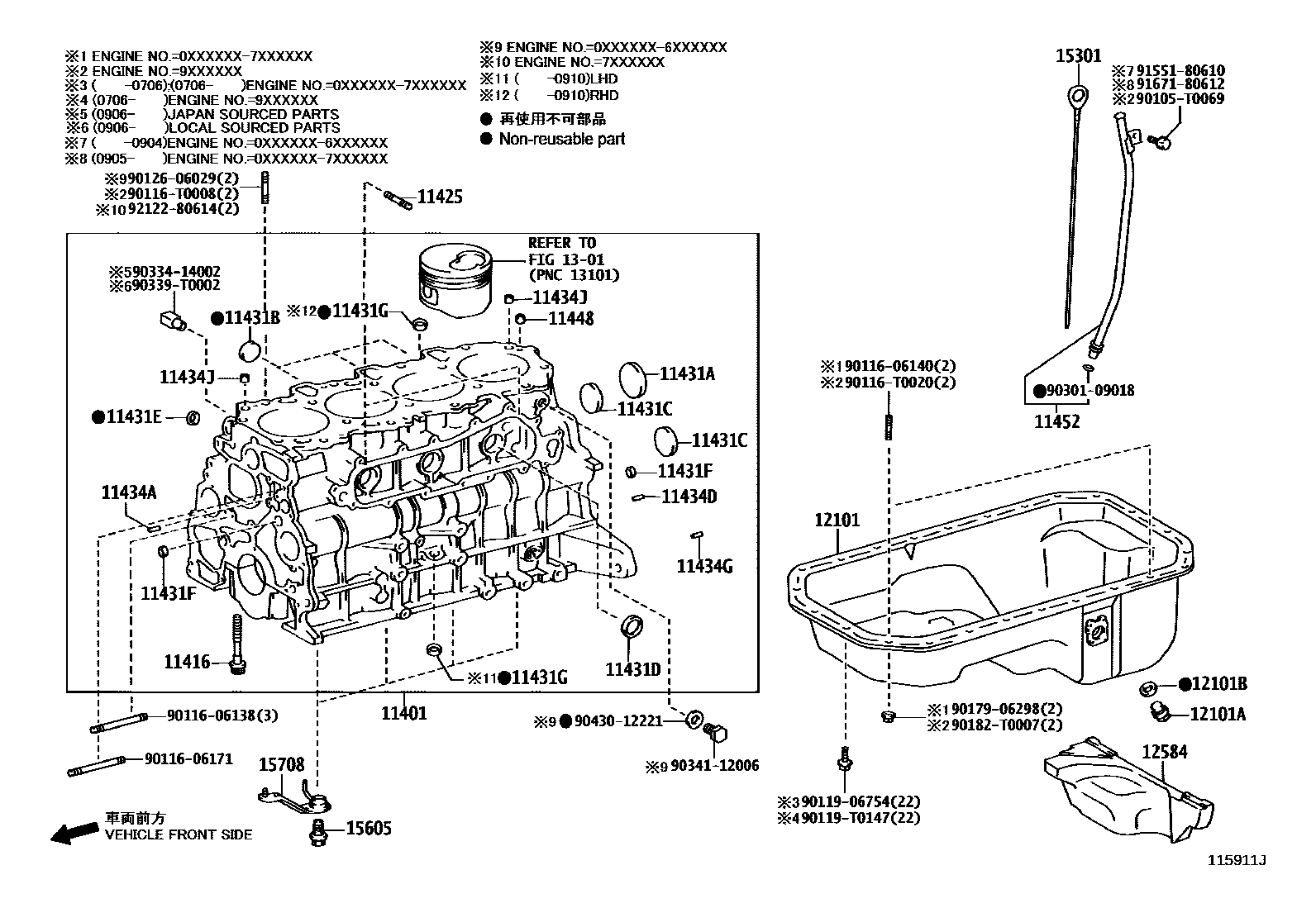

CYLINDER BLOCK

0001 1 0002 1 0007 1 0009 1 0011 1 0012 1 0013 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-09360i2KDFTV..KDH202..MA,TH;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN200508-200812

main11401-09491i2KDFTV..KDH200..TH200812-200906

CKD PACKAGE(THAILAND)

main11401-09492i2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN200906-201401

main11401-09590i2TRFE..TRH213..VN;2TRFE..TRH203..HRF200508-201401

main11401-09A00i1KDFTV..KDH223..TH201309-201401

main11401-39745i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,220,222..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)200501-200909

main11401-39796i2KDFTV..KDH202..GCC,GEN;2KDFTV..KDH200,212,220,222..GCC,GEN,SA,TH200910-201402

main11401-39865i1KDFTV..KDH201,203,221,223200610-200612

main11401-39866i1KDFTV..KDH201,203,221,223200612-200904

main11401-39867i1KDFTV..KDH201,203,221,223200904-201008

main11401-59765i5LE..LH20#,212,222200501-200612

main11401-59766i5LE..LH20#,212,222200612-200801

main11401-59767i5LE..LH20#,212,222..03S,12S,15S,16S200801-200810

main11401-80741i2TRFE..TRH213..LHD..STD..GEN200501-201401

main11401-80749i1TRFE..TRH200201308-201312

*271

main11401-80772i2TRFE..TRH223..12S,13S,14S,16S;2TRFE..TRH201,203,213,221..ARL,GCC,GEN,SA,TH200709-201402

main11401-80783i1KDFTV..KDH201..SP..06S201008-201312

main11401-80798i1KDFTV..KDH201,203..LHD201110-201312

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02061i5LE..LH20#,212,222..03S,12S,15S,16S200501-200810

main90910-02092i2TRFE..TRH20#,213,22#200501-201005

main90910-02113i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03200501-201402

main90910-02179i1TRFE,2TRFE..TRH20#,213,22#201005-201402

main90910-T2003i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508-201401

11425BOLT, STUD(FOR OIL FILTER)

main90116-06171i1KDFTV..KDH223..TH200501-201310

main90116-T0012i1KDFTV..KDH223..TH200508-200512

main92112-80825i5LE..LH20#,212,222..03S,12S,15S,16S200501-200810

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-T0008i1KDFTV..KDH223..TH200508-201401

main96411-42500i5LE..LH20#,212,222200501-200607

main96411-62500i5LE..LH20#,212,222..03S,12S,15S,16S200607-200810

main96411-63000i1TRFE,2TRFE..TRH20#,213,22#200501-201402

main96411-64500i2KDFTV..KDH222..TH200501-201402

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main90331-T0005i2KDFTV..KDH212..STD200508-201401

main96411-43500i5LE..LH20#,212,222200501-200607

main96411-63500i1KDFTV..KDH223..TH200501-201402

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main90331-T0007i1KDFTV..KDH223..TH200508-201401

main96411-45000i5LE..LH20#,212,222200501-200607

main96411-64000i2TRFE..TRH201,203,213,22#200501-201402

main96411-65000i5LE..LH20#,212,222..03S,12S,15S,16S200607-200810

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main90331-35004i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03200501-201402

main90331-T0002i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508-201401

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main90331-T0003i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508-201401

main96411-62000i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03200501-201402

11431FPLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)

main90331-T0006i2KDFTV..KDH212..STD200508-201401

main96411-61800i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03200501-201402

11431GPLUG, TIGHT

main90331-14006i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200910

MALAYSIA SPEC

main90331-14006i2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S).200501-200910

CKD PACKAGE(MALAYSIA)

main90331-14006i2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S).200501-200910

CKD PACKAGE(THAILAND)

main90331-14006i2KDFTV..KDH212..LHD..STD..GEN200512-200910

VIETNAM SPEC

main90331-14006i1KDFTV..KDH223..TH200501-201310

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120i1KDFTV..KDH223..TH200501-201310

L=18,OD=8

main90250-T0007i1KDFTV..KDH223..TH200508-200512

L=18,OD=8

main90253-11021i5LE..LH20#,212,222..03S,12S,15S,16S200501-200810

L=8,OD=11

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)200501-201402

L=14,OD=6

main90250-06068i1KDFTV..KDH223..TH200501-201310

L=11,OD=6

main90250-T0012i1KDFTV..KDH223..TH200508-200512

L=11,OD=6

main90250-T0017i2TRFE..TRH213..STD200508-201401

L=14,OD=6

main90253-11021i5LE..LH20#,212,222..03S,12S,15S,16S200501-200810

L=8,OD=11

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113i5LE..LH212..10S200501-200810

main90250-10192i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03200501-201310

main90250-T0008i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508-200512

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-15001i2TRFE..TRH213..LHD..STD..GEN200501-201402

main90253-15016i2KDFTV..KDH222..TH200501-201310

main90253-T0002i1KDFTV..KDH223..TH200508-200512

main90253-T0007i2TRFE..TRH213..VN;2TRFE..TRH203..HRF200508-201401

11448ORIFICE, CYLINDER BLOCK OIL

main11448-0L010i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508-200512

main11448-54020i5LE..LH212..10S200501-200810

main11448-67010i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03200501-201310

11452GUIDE, OIL LEVEL GAGE

main11409-30010i2KDFTV..KDH200,202,212,220;2KDFTV..KDH222..ARL,GCC,GEN,SA200501-201402

main11409-30070i1KDFTV..KDH201,203,221,223200610-201008

main11409-30080i1KDFTV..KDH223..TH201008-201312

main11409-30100i1KDFTV..KDH201..SP..06S201110-201312

main11409-30110i1KDFTV..KDH203..TH201309-201401

main11409-75071i1TRFE,2TRFE..TRH20#,213,22#200501-201402

main11452-05030i5LE..LH212..10S200501-200810

(L)

main11452-54080i5LE..LH212..10S200501-200810

(J)

12101PAN SUB-ASSY, OIL

main12101-30120i2KDFTV..KDH222..TH201008-201205

main12101-54197i5LE..LH212..10S200501-200810

main12101-67092i1KDFTV,2KDFTV..KDH20#,212,22#200501-201008

main12101-75140i1TRFE,2TRFE..TRH20#,213,22#200501-201402

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH203,222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH200,201,212,220,221,223..(03200501-201402

main90341-T0004i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508-201401

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90080-43030i2KDFTV..KDH212..STD200508-201112

main90080-43030i2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..RHD..12S201112-201401

(L)

main90430-12031i2KDFTV..KDH212..LHD..STD..GEN200501-201402

main90430-12031i2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN201112-201206

(J)

main90430-12031i2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN201112-201206

WITHOUT(CKD PACKAGE),(J)

12584INSULATOR, CYLINDER BROCK, NO.4

main12584-67030i1KDFTV,2KDFTV..KDH20#,212,22#200501

CKD PACKAGE(MALAYSIA)

main12584-67030i1KDFTV,2KDFTV..KDH20#,212,22#200501

CKD PACKAGE(THAILAND)

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

15301GAGE SUB-ASSY, OIL LEVEL

main15301-30050i2KDFTV..KDH222..TH200501-201402

main15301-30090i1KDFTV..KDH201..SP..06S201008-201401

main15301-54070i5LE..LH20#,212,222..03S,12S,15S,16S200501-200810

main15301-67031i1KDFTV..KDH201,203..LHD201110-201312

main15301-75091i1TRFE,2TRFE..TRH20#,213,22#200501-201402

15605VALVE SUB-ASSY, OIL CHECK

main15605-0L010i2KDFTV..KDH202..MA,TH;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN200508-201401

main15605-17030i1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223200501-201402

main15605-30030i1KDFTV..KDH201..SP..06S201008-201312

main15605-30050i1KDFTV..KDH223..TH201309-201401

main15605-54010i5LE..LH212..10S200501-200810

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-0L011i2KDFTV..KDH202..TH201202-201401

(L)

main15708-0L011i2KDFTV..KDH212..STD200508-201202

main15708-0L011i2KDFTV..KDH200..MA;2KDFTV..KDH202..RHD..12S201202-201206

WITHOUT(CKD PACKAGE),(L)

main15708-30011i2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..RHD..12S201202-201401

(J)

main15708-30011i1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..K200501-201402

main15708-54060i5LE..LH20#,212,222..03S,12S,15S,16S200501-200810

main15708-75010i2TRFE..TRH20#,213,22#200501-201301

main15708-75020i2TRFE..TRH203..MA201301-201401

MADE IN JAPAN

main15708-75020i1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH201301-201402

90105T0069

main90105-T0069

9011606138

main90116-06138

9011606140

main90116-06140

9011606171

main90116-06171

90116T0008

main90116-T0008

90116T0020

main90116-T0020

9011906754

main90119-06754

90119T0147

main90119-T0147

9012606029

main90126-06029

9017906298

main90179-06298

90182T0007

main90182-T0007

9030109018

main90301-09018

9033414002

main90334-14002

90339T0002

main90339-T0002

9034112006

main90341-12006

9043012221

main90430-12221

9155180610

main91551-80610

9167180612

main91671-80612

9212280614

main92122-80614

43 parts on this diagram · 7 diagrams in section
