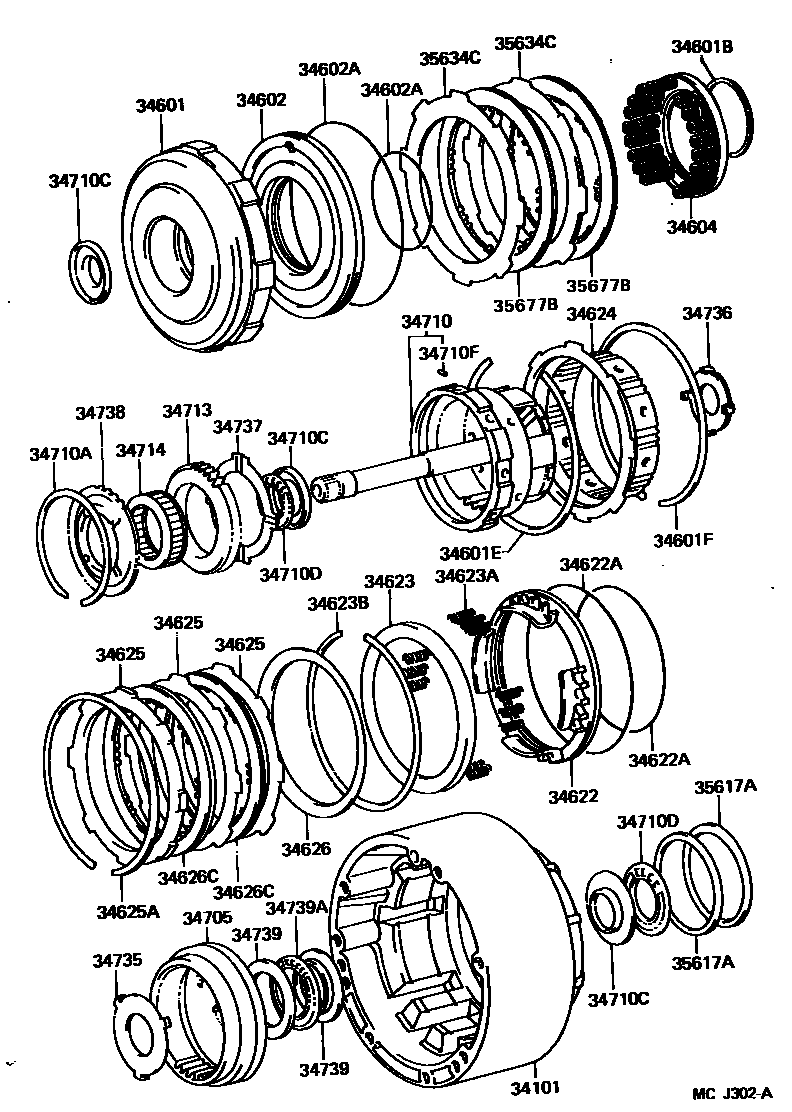

OVERDRIVE GEAR (ATM)

0001 1A45DL,A45DE 0003 1A45DL

34101CASE SUB-ASSY, OVERDRIVE

main34101-22020iLH184..4FC; RZH125..4FC199907-200501

main34101-28010iLH103,113,RZH103,113..4FC199801-199805

main34101-30062iRZH103,113..4FC199705-199801

main34101-43010iLH103,113..4FC199705-199801

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-28010iLH172..4FC199907-200208

34601BRING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH)

main90520-52262iLH103,113,125,RZH103,113,114,125..4FC198908-199907

34601ERING, HOLE SNAP, NO.1 (FOR OVERDRIVE)

main90521-99146iLH103,113,125,RZH103,113,114,125..4FC198908-199907

34601FRING, HOLE SNAP, NO.2 (FOR OVERDRIVE)

main90521-99001iLH172..4FC199907-200208

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-30011iRZH103,113..4FC199907-200311

main34602-30030iLH103,113,125,RZH103,113,114,125..4FC198908-199907

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-56007iLH103,113,125,162,172,184,RZH103,113,125..4FC199907-200501

INNER

main90301-57188iLH103,113,RZH103,113,114..4FC198908-199808

INNER

main90301-99016iLH103,113,RZH103,113,114..4FC198908-199808

OUTER

main90301-99058iLH103,113,125,RZH103,113,125..4FC199808-199907

OUTER

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-22010iLH184..4FC; RZH125..4FC199907-200501

34622PISTON, OVERDRIVE BRAKE

main34622-30040iLH103,113,125,RZH103,113,114,125..4FC198908-199907

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99008iLH103,113,RZH103,113,114..4FC198908-199808

INNER

main90301-99009iLH103,113,RZH103,113,114..4FC198908-199808

OUTER

main90301-99103iLH103,113,125,RZH103,113,125..4FC199808-199907

INNER

main90301-99111iLH103,113,125,RZH103,113,125..4FC199808-199907

OUTER

34623SEAT, OVERDRIVE BRAKE RETURN SPRING

main34623-30020iLH172..4FC199907-200208

34623ASPRING, COMPRESSION (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90501-10671×12iLH162..4FC199907-200108

main90501-11023×16iRZH103,113..4FC199907-200311

34623BRING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90521-99004iLH184..4FC; RZH125..4FC199907-200501

34624HUB, OVERDRIVE BRAKE

main34624-26010iLH184..4FC; RZH125..4FC199907-200501

main34624-32010iLH103,113,RZH103,113,114..4FC198908-199205

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-22010×3iLH172,184..4FC;LH162..4FC..GEN200008

T=4.0

main34625-22020iRZH103,113..4FC199907-200311

T=4.0

main34625-26010×3iLH103,113,125,RZH103,113,114..4FC..(CBR,DSL)198908-199907

T=4.0

34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)

main90521-99004iLH184..4FC; RZH125..4FC199907-200501

34626PLATE, OVERDRIVE BRAKE CUSHION

main34626-30050iLH103,113,125,RZH103,113,114,125..4FC198908-199907

34626CDISC, CLUTCH (FOR OVERDRIVE)

main35677-30040×2iLH103,113,RZH103,113,114..4FC198908-199608

main35677-43010×2iLH103,113,125,RZH103,113..4FC..(CBR,DSL)199608-199907

34705GEAR SUB-ASSY, OVERDRIVE PLANETARY RING

main34705-30021iLH103,113,125,RZH103,113,114,125..4FC198908-199907

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-28020iLH103,113,125,RZH103,113,114,125..4FC198908-199907

34710ARING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR)

main90521-99003iRZH103,113..4FC199907-200311

34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)

main34739-30041iLH184..4FC; RZH125..4FC199907-200501

FRONT

main35789-22010iLH184..4FC; RZH125..4FC199907-200501

REAR

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-23012iLH103,113,125,RZH103,113,114,125..4FC198908-199907

REAR

main90374-37003iLH162..4FC199907-200108

FRONT

34710FPIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90250-03024×4iRZH103,113..4FC199705-199808

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-28010iLH103,113,125,RZH103,113,114,125..4FC198908-199907

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main35791-28010iLH103,113,125,RZH103,113,114,125..4FC198908-199907

34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1

main34735-30020iLH103,113,125,RZH103,113,114,125..4FC198908-199907

34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2

main34736-30010iLH103,113,125,RZH103,113,114,125..4FC198908-199907

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-28010iLH103,113,125..4FC199907-200008

34738WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4

main34738-28010iLH184..4FC; RZH125..4FC199907-200501

34739RACE, THRUST BEARING(FOR OVERDRIVE)

main34739-30020iRZH103,113..4FC199907-200311

FRONT

main35789-22030iLH184..4FC; RZH125..4FC199907-200501

REAR

34739ABEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE)

main90374-28014iLH184,RZH125..4FC199907-200501

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-16010×2iRZH103,113..4FC199705-199801

main35617-43010×2iLH103,113..4FC199705-199801

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main35634-22040×4iLH184..4FC; RZH125..4FC199907-200501

T=1.8

main35634-30080iRZH103,113,125..4FC199808-199907

T=1.95-2.05

35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)

main35677-24010×2iLH103,113,RZH103,113,114..4FC198908-199608

main35677-30140iRZH103,113,125..4FC199808-199907

main35677-30160×2iLH184..4FC; RZH125..4FC199907-200501

35 parts on this diagram · 2 diagrams in section
