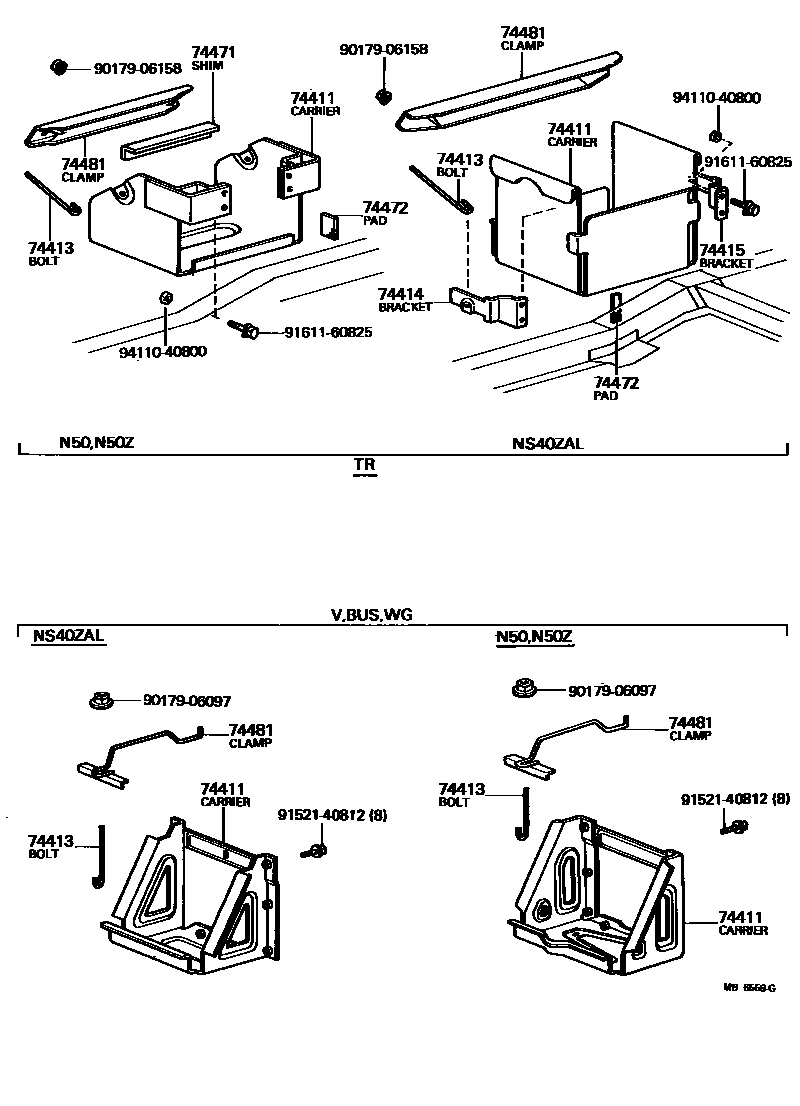

BATTERY CARRIER

0001 1 0002 1

74411CARRIER, BATTERY

main74410-95A00iRH20,22,3#..(V,WG)..(GEN,SA)197702-198211

NS40ZAL

main74410-95A01iRH20,22,3#,42197702-198211

N50,N50Z

main74410-95A02iLH20,30197901-198211

N70Z

main74411-25020iRH11,25197702-198211

N50,N50Z

main74421-25010iRH11..GEN,IDN197702-198211

NS40ZAL

main74421-36040iLH11..LHD..T3197901-198201

N100Z

main74421-36041iLH11..LHD..T3198201-198211

N100Z

main74421-36090iLH11197901-198204

N70ZX

main74421-36091iLH11198204-198211

N70ZX

74413BOLT, BATTERY CLAMP

main74451-25020×2iRH11,25197702-198211

main74451-30040iLH20,30,RH20,22,3#,42197702-198211

main74451-36070×2iLH11..LHD..T3198204-198211

N100Z

74414BRACKET, BATTERY, FR

main74401-36011iLH11..LHD..T3197901-198204

N100Z

main74401-36012iLH11..LHD..T3198204-198211

N100Z

main74411-25011iRH11..GEN,IDN197702-198211

NS40ZAL

main74411-26010iLH11197901-198211

N70ZX

74415BRACKET, BATTERY, REAR

main74402-36011iLH11..LHD..T3197901-198204

N100Z

main74402-36012iLH11..LHD..T3198204-198211

N100Z

main74412-25011iRH11..GEN,IDN197702-198211

NS40ZAL

main74412-26010iLH11197901-198211

N70ZX

74471SHIM, BATTERY SET ANGLE

main74471-35010iRH11,25197702-198211

N50,N50Z

74472PAD, BATTERY SIDE

main74472-25010×2iRH11..GEN,IDN197702-198211

NS40ZAL

main74472-25020×2iRH11,25197702-198211

N50,N50Z

74481CLAMP, BATTERY HOLD DOWN

main74404-36030iLH11..LHD..T3198204-198211

N100Z

main74404-95A00iRH20,22,3#..(V,WG)..(GEN,SA)197702-198211

NS40ZAL

main74404-95A01iRH20,22,3#,42197702-198211

N50,N50Z

main74404-95A02iLH20,30..LHD..EUR197901-198012

N100Z

main74413-36010iRH11,25197702-198211

N50,N50Z

main74453-25020iRH11..GEN,IDN197702-198211

NS40ZAL

9017906097

main90179-06097

9017906158

main90179-06158

9152140812

main91521-40812

9161160825

main91611-60825

9411040800

main94110-40800

12 parts on this diagram · 2 diagrams in section
