INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

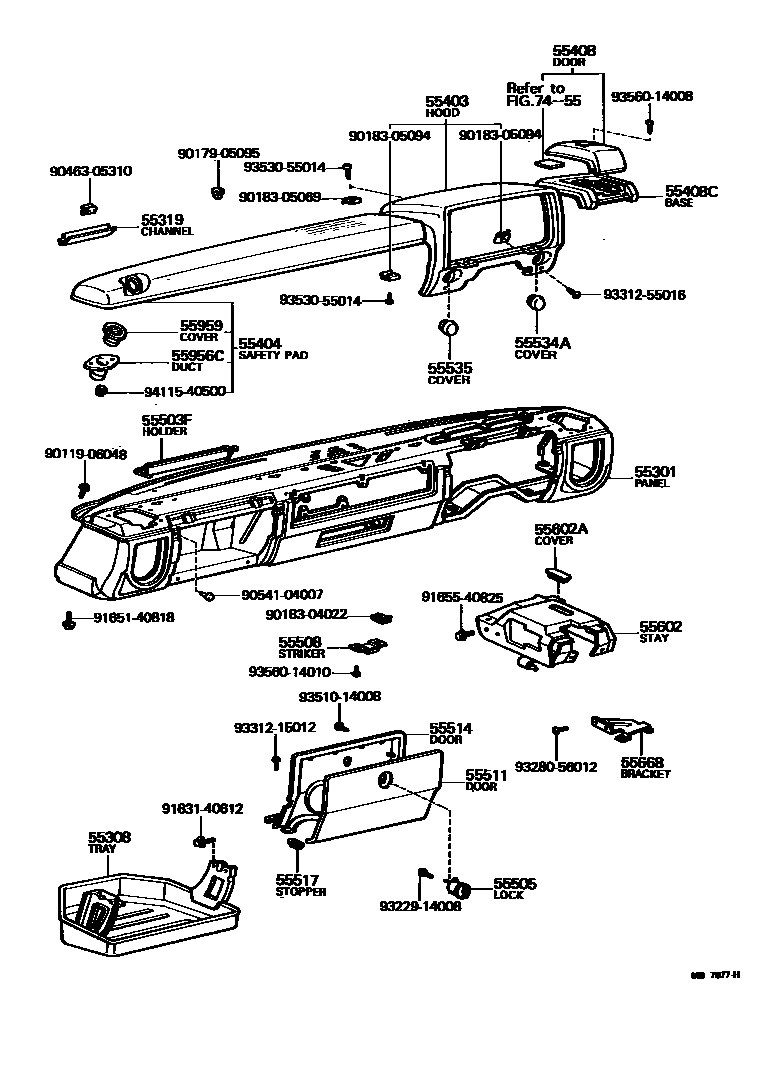

55301PANEL SUB-ASSY, INSTRUMENT

main55301-95A03iLH11,20,30,RH11,20,22,3#,42..RHD197912-198012

main55301-95A04iLH11,20,30,RH11,2#,3#..LHD197912-198012

main55301-95A08iLH11,20,30,RH11,2#,3#..LHD198012-198211

main55301-95A09iLH11,20,30,RH11,20,22,3#,42..RHD198012-198211

main55301-95A12iLH20,30,RH11,20,22,32,42..ARL198112-198211

W/DISC BRAKE

main55310-95A00iLH11,20,30,RH11,2#,3#,42..RHD197702-197912

main55310-95A01iLH11,20,30,RH11,2#,3#..LHD197702-197912

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main74650-95A00iLH11,20,30,RH11,2#,3#,42..RHD197702-197912

main74650-95A01iLH11,20,30,RH11,2#,3#..LHD197702-197912

main74650-95A04-06iLH11,20,30,RH11,20,22,3#,42..RHD197912-198103

BROWN

main74650-95A05iLH11,20,30,RH11,2#,3#..LHD197912-198103

main74650-95A06-06iLH11,20,30,RH11,20,22,3#,42..RHD..(ARL,EUR,GEN,SA)198103-198211

BROWN

main74650-95A07iLH11,20,30,RH11,2#,3#..LHD198103-198211

55319CHANNEL, WATER GUIDE

main55319-95A00×2iLH11,20,30,RH11,2#,3#,42197702-198211

55403HOOD SUB-ASSY, METER

main55403-95A02-06iRH11,20,22,3#,42198104-198211

BROWN

main55403-95A05iLH11,20,30198104-198211

W/ACCELERATOR WIRE

main55421-95A00iLH11,20,30,RH11,2#,3#,42197702-197912

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55404-95A00iRH11,2#,3#,42..RHD197702-197912

main55404-95A01iRH11,2#,3#..LHD197702-197912

main55404-95A02iLH11,20,30,RH11,2#,3#,42..RHD197702-197912

W/SIDE DEFROSTER

main55404-95A03iLH11,20,30,RH11,2#,3#..LHD197702-197912

W/SIDE DEFROSTER

main55404-95A05iLH20,30,RH11,20,22,3#,42..RHD..(ARL,GEN,SA)197912-198211

main55404-95A06iLH20,30,RH11,20,22,3#..LHD..GEN197912-198211

main55404-95A07-06iLH11,20,30,RH11,20,22,3#,42..RHD197912-198211

W/SIDE DEFROSTER,BROWN

main55404-95A08iLH11,20,30,RH11,2#,3#..LHD197912-198211

W/SIDE DEFROSTER

55408DOOR SUB-ASSY, RESERVOIR TANK SERVICE HOLE

main55405-95A00iLH11,20,30,RH11,2#,3#,42..RHD197702-197912

main55405-95A01iLH11,20,30,RH11,2#,3#..LHD197702-197912

main55405-95A03-06iLH11,20,30,RH11,20,22,3#,42..RHD197912-198211

BROWN

main55405-95A04iLH11,20,30,RH11,2#,3#..LHD197912-198211

55408CBASE, RESERVOIR TANK SERVICE HOLE DOOR

main55431-95A00iLH11,20,30,RH11,2#,3#,42..RHD197702-197912

main55431-95A01iLH11,20,30,RH11,2#,3#..LHD197702-197912

main55431-95A03-06iLH11,20,30,RH11,20,22,3#,42..RHD197912-198211

BROWN

main55431-95A04iLH11,20,30,RH11,2#,3#..LHD197912-198211

55503FHOLDER, CARD(FOR GLOVE COMPARTMENT)

main55505-95700iLH11,20,30,RH11,2#,3#,42197702-198211

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55520-14011iLH11,20,30,RH11,2#,3#,42197702-198211

55508STRIKER SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK

main55316-95A00iLH11,20,30,RH11,2#,3#,42197702-198211

55511DOOR, GLOVE COMPARTMENT

main55502-95A00iLH11,20,30,RH11,2#,3#,42..RHD197702-197912

main55502-95A01iLH11,20,30,RH11,2#,3#..LHD197702-197912

main55502-95A03-06iLH11,20,30,RH11,20,22,3#,42..RHD197912-198211

BROWN

main55502-95A04iLH11,20,30,RH11,2#,3#..LHD197912-198211

55514DOOR, GLOVE COMPARTMENT, INNER

main55512-95A00iLH11,20,30,RH11,2#,3#,42..RHD197702-197912

main55512-95A01iLH11,20,30,RH11,2#,3#..LHD197702-197912

main55512-95A02-06iLH11,20,30,RH11,20,22,3#,42..RHD197912-198211

BROWN

main55512-95A03iLH11,20,30,RH11,2#,3#..LHD197912-198211

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-95A00iLH11,20,30,RH11,2#,3#,42197702-198211

55534ACOVER, ILLUMINATION LAMP HOLE

main55537-95A00iLH11,20,30,RH11,2#,3#..TR,V,WG197912-198211

main90950-01214iLH11,20,30,RH11,2#,3#..TR,V,WG197702-197912

55535COVER, WARNING LAMP HOLE

main55538-95A00iLH11,20,30197912-198104

main90950-01274iLH11,20,30; RH22,32..RHD197702-197912

55602STAY SUB-ASSY, STEERING COLUMN, UPPER

main55602-95A00iLH11,20,30,RH11,2#,3#,42..RHD197702-197912

main55602-95A01iLH11,20,30,RH11,2#,3#..LHD197702-197912

main55602-95A02iLH20,RH20,3#..EUR197702-197912

W/RR WIPER

main55602-95A09iLH11,20,30,RH11,20,22,3#,42..RHD197912-198211

main55602-95A10iLH11,20,30,RH11,2#,3#..LHD197912-198012

main55602-95A11-06iLH20,30,RH20,3#..RHD..EUR197912-198211

W/RR WIPER,BROWN

main55602-95A13iLH20,30,RH20,3#..LHD..EUR197912-198012

W/RR WIPER

main55602-95A15iLH20,30,RH20,22,3#..LHD198012-198211

main55602-95A16iLH20,30,RH20,3#..LHD..EUR198012-198211

W/RR WIPER

55602ACOVER,STEERING COLUMN UPPER STAY

main55678-95A00iLH11,20,30,RH11,2#,3#,42197806-197912

main55678-95A01-06iLH11,20,30,RH11,2#,3#,42197912-198211

BROWN

main68895-95A00iRH11,2#,3#,42197702-197806

55668BRACKET, CONNECTOR SUPPORT

main82203-95A00iLH11,20,30,RH11,2#,3#,42197702-198211

55956CDUCT, SIDE DEFROSTER NOZZLE, NO.3

main55964-95A00iLH11,20,30,RH11,20,22,3#,42..RHD197702-198211

main55964-95A01iLH11,20,30,RH11,2#,3#..LHD197702-198211

55959COVER, DEFROSTER NOZZLE OPENING, NO.1

main55652-95A00iLH11,20,30,RH11,2#,3#,42197702-197912

main55652-95A02-06iLH11,20,30,RH11,2#,3#,42197912-198211

BROWN

7455CAUTION PLATE

→ Go to FIG 74-55

9011906048

main90119-06048

9017905095

main90179-05095

9018304022

main90183-04022

9018305069

main90183-05069

9018305094

main90183-05094

9046305310

main90463-05310

9054104007

main90541-04007

9163140612

main91631-40612

9165140818

main91651-40818

9165540825

main91655-40825

9322914008

main93229-14008

9328056012

main93280-56012

9331215012

main93312-15012

9331255016

main93312-55016

9351014008

main93510-14008

9353055014

main93530-55014

9356014008

main93560-14008

9356014010

main93560-14010

9411540500

main94115-40500

40 parts on this diagram · 8 diagrams in section
