Toyota 521260 — HEATING & AIR CONDITIONING - COOLER PIPING
8714HEATING & AIR CONDITIONING - COOLER UNIT
8719HEATING & AIR CONDITIONING - COMPRESSOR
88374BVALVE, SERVICE, NO.1
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88474DRYER, COOLER
88645HSWITCH, PRESSURE NO.1
88703CRING, O(FOR DISCHARGE HOSE)
88704BRING, O(FOR SUCTION HOSE)
88706GRING, O(FOR LIQUID TUBE)
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88716APIPE, COOLER REFRIGERANT LIQUID, A
88716URING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
88718LCLAMP, PIPING
88718MCLAMP, PIPING
88718NCLAMP, PIPING
88G16ARING, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE)
88G16BRING, O, NO.2(FOR COOLER REFRIGERANT LIQUID PIPE)
90105T0052
90105T0241
90119T0134
90178T0018
9167380616
27 parts on this diagram · 2 diagrams in section

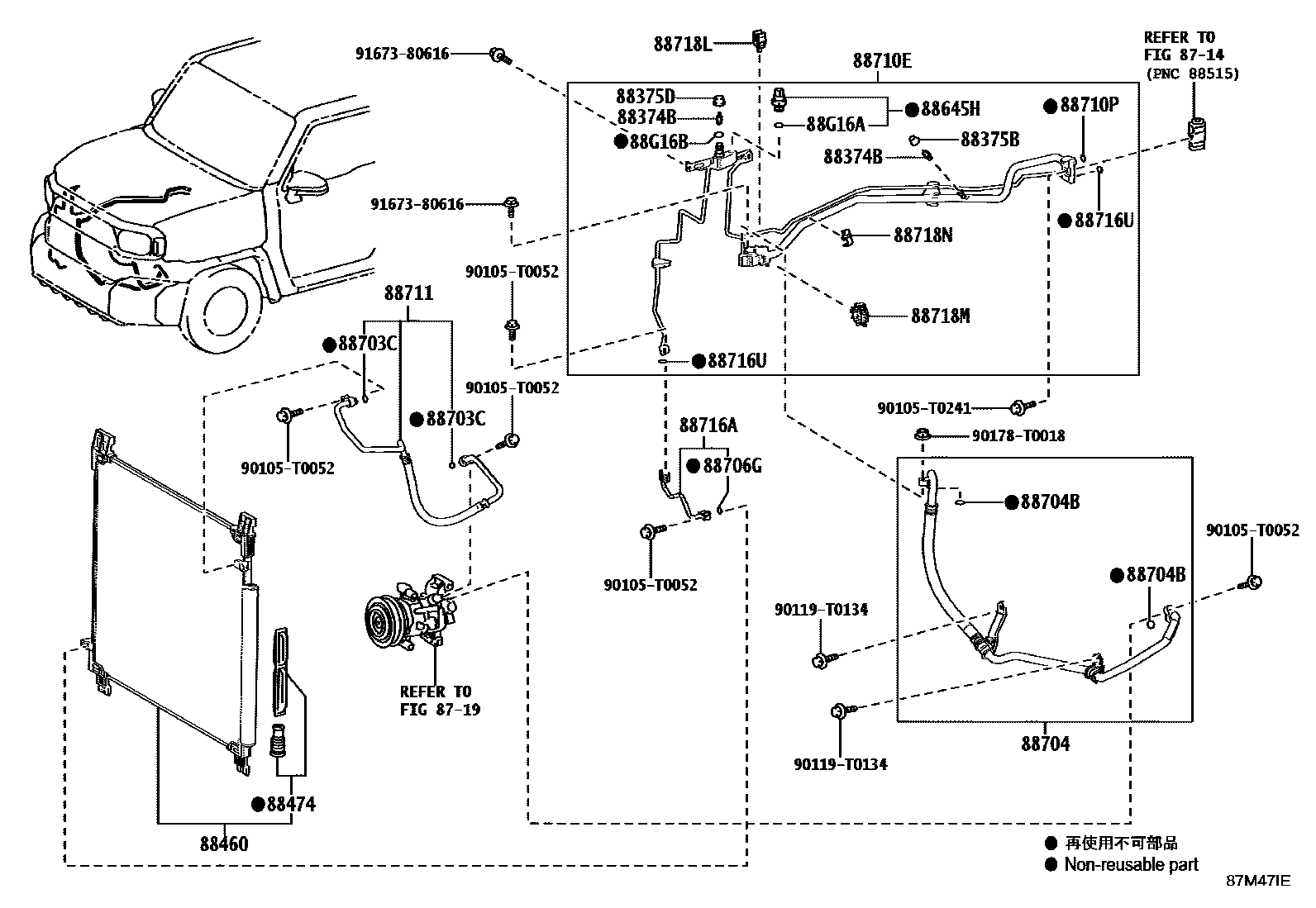

HEATING & AIR CONDITIONING - COOLER PIPING for Toyota 521260
This section contains 29 genuine Toyota parts for the HEATING & AIR CONDITIONING - COOLER PIPING system of the Toyota 521260. Key components include: HEATING & AIR CONDITIONING - COOLER UNIT, HEATING & AIR CONDITIONING - COMPRESSOR, VALVE, SERVICE, NO.1, CAP, SERVICE VALVE, NO.1, CAP, SERVICE VALVE, NO.2.
