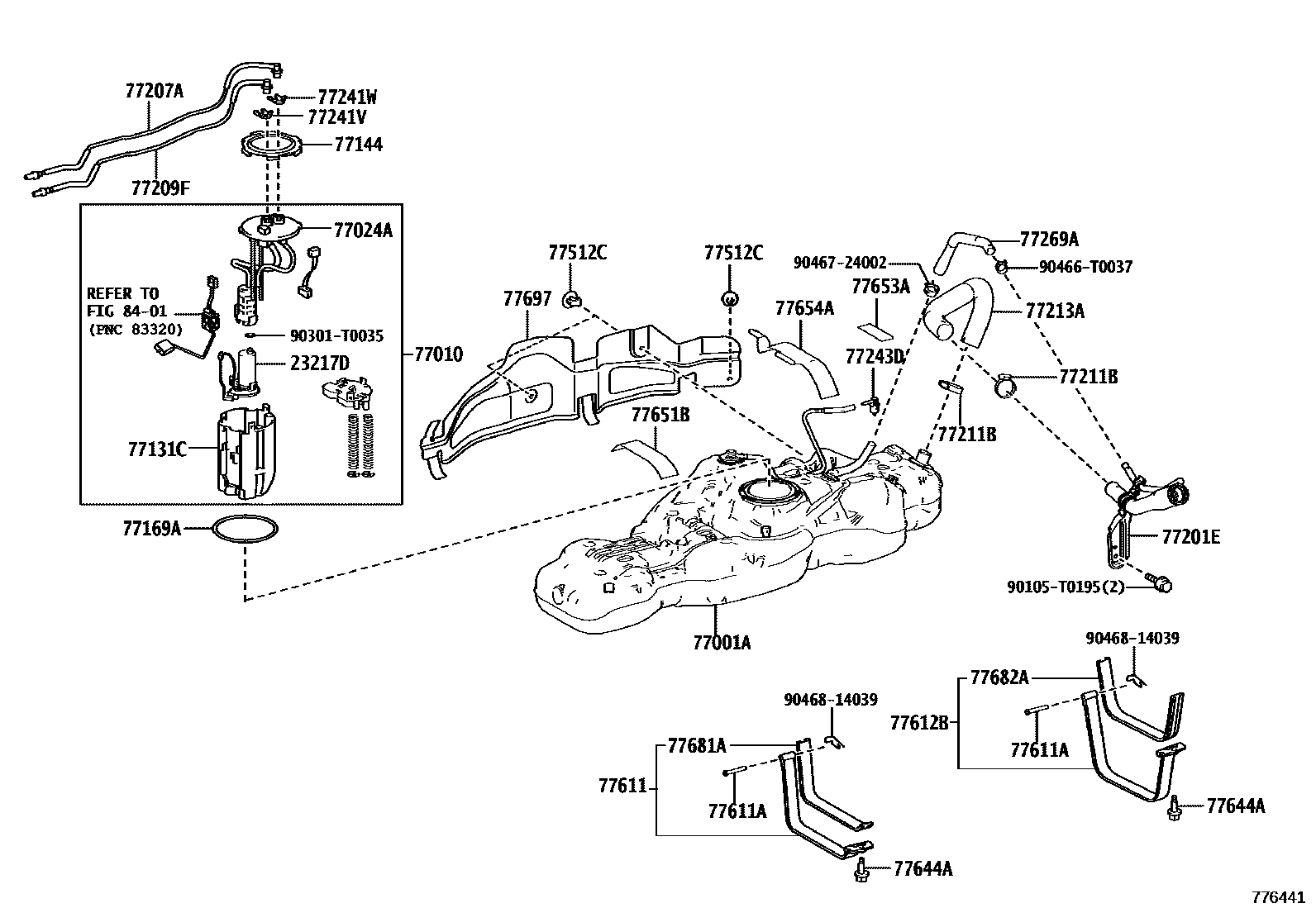

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TUBE 0005 1FUEL TUBE 0006 1FUEL TUBE

23217DFILTER, FUEL PUMP

main23217-0L020i2GD..GUN12#..PHL202312-202408

77001ATANK SUB-ASSY, FUEL

main77001-0K810iTGN11#..THAI202312

main77001-0K820iGUN110..THAI202312

main77001-0K830iGUN12#..PHL202312-202408

77010TUBE ASSY, FUEL TANK VENT

main77010-0K260iGUN11#..IDN202409

main77010-0K270iGUN12#..LA,THAI202312

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-0K150iTGN110..IDN202409

main77024-0K190iGUN12#..PHL202312-202408

main77024-0K300iGUN11#..IDN202409

77131CSUB-TANK, FUEL, NO.1

main77131-0K070iTGN110..PHL202312-202408

main77131-0K080iGUN110..THAI202312

main77131-0K200iGUN12#..PHL202312-202408

77144RETAINER, FUEL PUMP GAUGE

main77144-0K040iGUN11#,TGN110..IDN202409

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0K030iTGN110..IDN202409

(L)

main77169-0K040iGUN12#..PHL202312-202408

main77169-47030iTGN110..IDN202409

(J)

main77169-47040iGUN11#..IDN202409

(J)

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-KK390iTGN110..PHL202312-202408

main77201-KK400iGUN110,12#..LA,THAI202312

77207ATUBE SUB-ASSY, FUEL RETURN

main77204-0K090iTGN11#..THAI202312

main77204-0K110iGUN11#..IDN202409

main77204-0K140iGUN12#..LA,THAI202312

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0K150iTGN110..IDN202409

main77209-0K170iGUN11#..IDN202409

main77209-0K200iGUN12#..PHL202312-202408

77211BCLAMP (FOR FUEL FILLER PIPE)

main90460-46005×2iGUN11#,TGN110..IDN202409

77213ASUPPORT, FUEL TANK FILLER PIPE

main77213-KK080iTGN110..PHL202312-202408

main77213-KK090iGUN12#..LA,THAI202312

77241VCLIP, TUBE JOINT

main77241-0K020iGUN11#..IDN202409

77241WCLIP, TUBE JOINT

main77241-0K010iGUN11#..IDN; TGN110..IDN202409

77243DJOINT, FUEL TUBE, NO.1

main77245-71010iGUN12#..PHL202312-202408

77269AHOSE, FUEL TANK BREATHER

main77269-KK060iTGN110..PHL202312-202408

main77269-KK070iGUN12#..LA,THAI202312

77512CBRACKET, FUEL TANK

main77512-0K010×3iGUN11#,TGN110..IDN202409

77611BAND, FUEL TANK

main77601-KK020iTGN110..PHL202312-202408

main77601-KK040iGUN12#..PHL202312-202408

77611APIN (FOR FUEL TANK BAND)

main77653-0K041×2iGUN11#,TGN110..IDN202409

77612BBAND, FUEL TANK, NO.2

main77602-KK010iTGN110..PHL202312-202408

main77602-KK020iGUN12#..PHL202312-202408

77644BOLT, FUEL TANK

main77644-0K010×4iGUN12#..LA,THAI202312

77644ABOLT, FUEL TANK SET, NO.1

main77644-35030×2iGUN12#,TGN110..PHL202312-202408

77651BCUSHION, FUEL TANK

main77651-0K050iTGN110..PHL202312-202408

main77651-0K080iGUN12#..LA,THAI202312

77653ACUSHION, FUEL TANK, NO.3

main77653-0K060iTGN110..PHL202312-202408

77654ACUSHION, FUEL TANK, NO.4

main77654-0K060iTGN110..PHL202312-202408

77681ASEAT, FUEL TANK BAND

main77681-KK010iTGN110..PHL202312-202408

main77681-KK020iGUN12#..LA,THAI202312

77682ASEAT, FUEL TANK BAND, NO.2

main77682-KK010iGUN110,12#,TGN11#..LA,THAI202312

77697INSULATOR, FUEL TANK HEAT, NO.1

main77697-0K060iGUN110,TGN11#..THAI202312

main77697-0K130iGUN12#..LA,THAI202312

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105T0195

main90105-T0195

90301T0035

main90301-T0035

90466T0037

main90466-T0037

9046724002

main90467-24002

9046814039

main90468-14039

34 parts on this diagram · 6 diagrams in section
