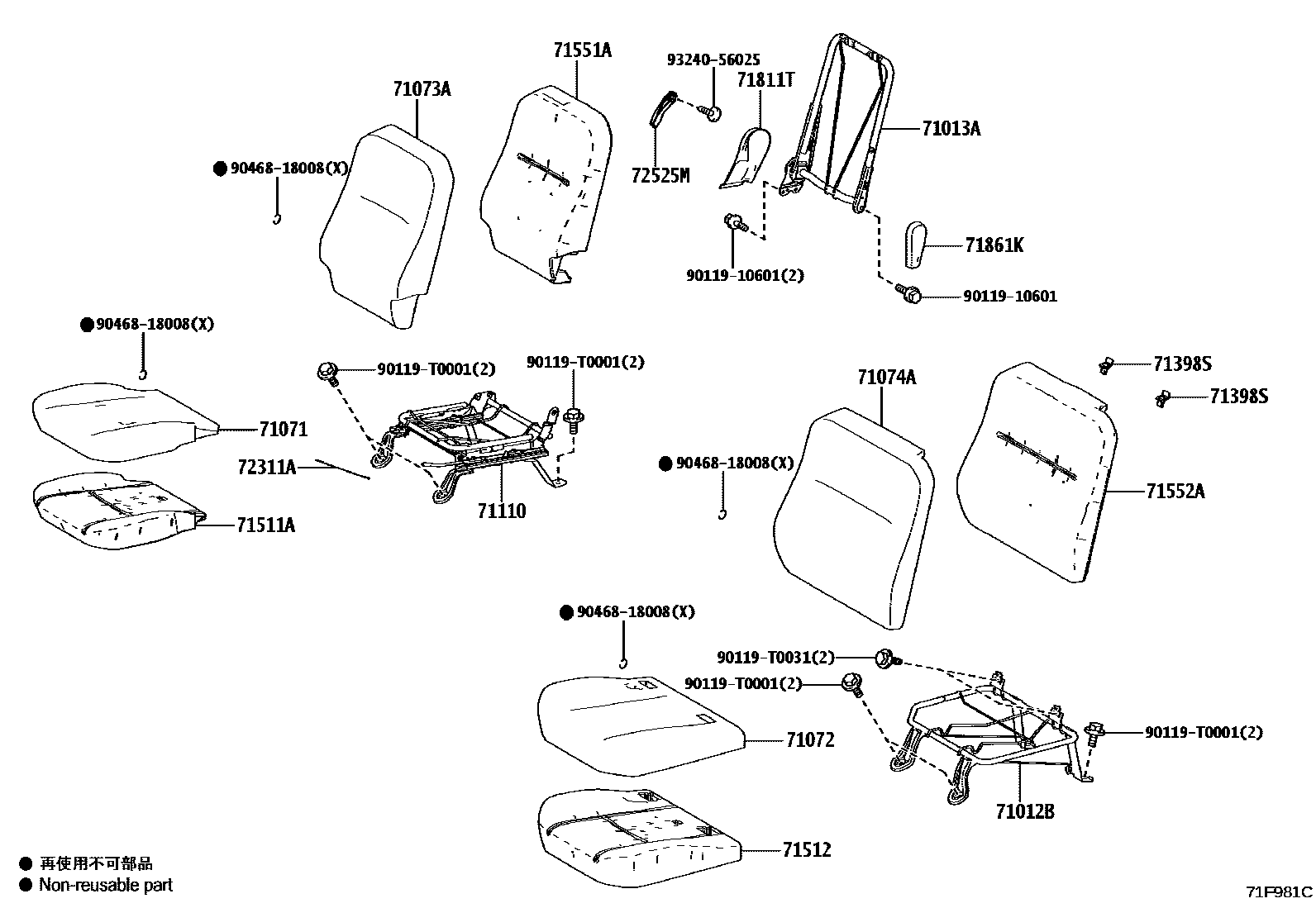

FRONT SEAT & SEAT TRACK

0001 1BENCH SEAT 0002 1BENCH SEAT 0003 1SEPARATE SEAT 0004 1SEPARATE SEAT 0005 1BENCH SEAT

71012BFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71012-0K150iGUN122,TGN110..THAI202312

71013AFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-0KA30iGUN112,TGN110..(L,S)..IDN202409

main71013-0KA40iGUN11#,TGN110..H..IDN202312-202407

71071COVER SUB-ASSY, FRONT SEAT CUSHION, RH

main71071-F0A10-C0iGUN122..LA202312-202407

BLACK,TRIM2#

main71071-F0A20-C0iGUN11#,12#,TGN11#..RHD202312-202407

BLACK,TRIM2#

71072COVER SUB-ASSY, FRONT SEAT CUSHION, LH

main71072-F0G10-C0iGUN12#,TGN110..PHL202312-202407

BLACK,TRIM2#

main71072-F0G20-C0iGUN112,122,TGN110..RHD202312

BLACK,TRIM2#

71073ACOVER SUB-ASSY, FRONT SEATBACK, RH

main71027-0KJ80-C0iGUN122,TGN110..PHL202312-202407

BLACK,TRIM2#

main71027-0KJ90-C0iGUN11#,12#,TGN11#..RHD..H202312-202407

BLACK,TRIM2#

main71027-0KK00-C0iGUN112,TGN110..(L,S)..IDN202409

BLACK,TRIM2#

71074ACOVER SUB-ASSY, FRONT SEATBACK, LH

main71074-F0590-C0iGUN112,TGN110..(L,S)..IDN202409

BLACK,TRIM2#

main71074-F0600-C0iGUN112,122,TGN110..H202312

BLACK,TRIM2#

main71074-F0610-C0iGUN12#,TGN110..PHL202312-202407

BLACK,TRIM2#

71110FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

main71110-0K080iGUN120..IV3202312-202407

71398SHOLDER, FRONT SEATBACK

main71398-02040iGUN122,TGN110..PHL202312-202407

71511APAD, FRONT SEAT CUSHION, RH

main71511-0KA40iGUN122..LA202312-202407

main71511-0KB00iGUN11#,12#,TGN11#..RHD202312-202407

71512PAD, FRONT SEAT CUSHION, LH

main71052-0K020iGUN110,120,TGN111..RHD202312

main71052-0K030iGUN112,122,TGN110..H202312

main71512-0KB90iGUN112,TGN110..(L,S)..IDN202409

main71512-0KC00iGUN12#,TGN110..PHL202312-202407

71551APAD, FRONT SEATBACK, RH

main71551-0KJ00iGUN122,TGN110..PHL202312-202407

main71551-0KJ10iGUN112,TGN110..(L,S)..IDN202409

main71551-0KJ20iGUN120..IV3202312-202407

71552APAD, FRONT SEATBACK, LH

main71552-0KJ50iGUN112,TGN110..(L,S)..IDN202409

main71552-0KJ60iGUN112,122,TGN110..H202312

main71552-0KJ70iGUN12#,TGN110..PHL202312-202407

71811TSHIELD, FRONT SEAT CUSHION, RH

main71811-0K490-C0iGUN11#,TGN110..IDN202312-202407

BLACK,TRIM2#

71861KSHIELD, FRONT SEAT CUSHION, INNER RH

main71861-0K230-C0iGUN120..IV3202312-202407

BLACK,TRIM2#

72311AWIRE, SEAT TRACK EQUALIZING, RH

main72311-0K010iGUN120..IV3202312-202407

72525MHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-0K330-C0iGUN120..IV3202312-202407

BLACK,TRIM2#

9011910601

main90119-10601

90119T0001

main90119-T0001

90119T0031

main90119-T0031

9046818008

main90468-18008

9324056025

main93240-56025

21 parts on this diagram · 5 diagrams in section
