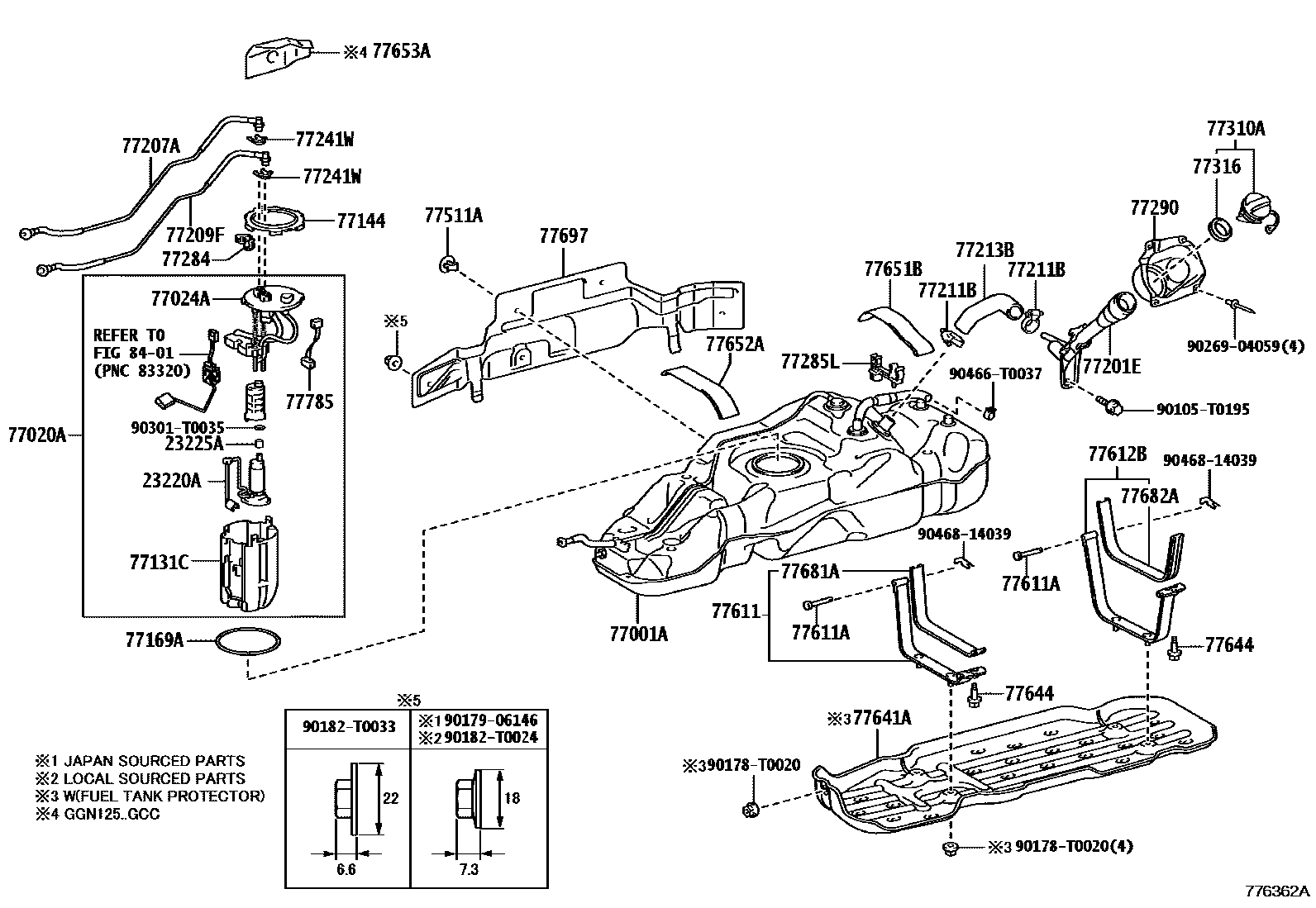

FUEL TANK & TUBE
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
77001ATANK SUB-ASSY, FUEL
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77131CSUB-TANK, FUEL, NO.1
77144RETAINER, FUEL PUMP GAUGE
main77144-0K040iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
77169AGASKET, FUEL SUCTION TUBE SET
77201EPIPE SUB-ASSY, FUEL TANK FILLER
ASIA COLD COUNTRY SPEC
77207ATUBE SUB-ASSY, FUEL RETURN
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77211BCLAMP (FOR FUEL FILLER PIPE)
main90460-46005×2iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
77213BHOSE, FUEL TANK TO FILLER PIPE
77241WCLIP, TUBE JOINT
main77241-0K010×2iGGN125,TGN12#,136..THP..(ARL,GCC,GEN,LA); GUN12#,13#..THP..DCRL;GUN126..MHV..(ARL,GCC,LA)202308-202407
77284CLAMP, FUEL TUBE
77285LCLAMP, FUEL TUBE, NO.1
77290SHIELD ASSY, FUEL TANK FILLER PIPE
main77290-0K070iGUN125,135,LAN125..SAP..MTM..S; GUN125..H..SA;GUN125..S..GHA;GUN125,135..6FC..SA;GGN125,GUN126,136,TGN126,136..(GHAP,KENP,SAP)..(H,S)202402-202410
TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 STEEL
main77290-0K080iGUN125..L..GHA;TGN126,136..SAP..L;GUN122,125,135,LAN125,TGN121..(KENP,SAP)..MTM..(L,S); TGN136..S..SA202402-202410
TIRE & DISC WHEEL-225/70R17C STEEL
main77290-0K090iGUN125,135..AGTP..L..LA; GUN125,135..BZAG;GGN125,GUN126,136..AGTP;GUN125,135,TGN126,136..AGTP..(H,S)..LA202311-202410
TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 STEEL
TIRE & DISC WHEEL-225/70R17C STEEL
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77511ABRACKET, FUEL TANK
77611BAND, FUEL TANK
(J); ASIA COLD COUNTRY SPEC,(J)
main77601-KK050iTGN121..GCC;GUN126..MHV..(ARL,GCC,LA);GUN125,126,135,TGN136..THP..(DCRL,HTWC);GGN125,GUN122,136,TGN120,126..THP..(ARL,GCC,LA)202308-202407
(L); ASIA COLD COUNTRY SPEC,(L)
77611APIN (FOR FUEL TANK BAND)
77612BBAND, FUEL TANK, NO.2
(J); ASIA COLD COUNTRY SPEC,(J)
(L); ASIA COLD COUNTRY SPEC,(L)
77641APROTECTOR, FUEL TANK, NO.1
77644BOLT, FUEL TANK
77651BCUSHION, FUEL TANK
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77681ASEAT, FUEL TANK BAND
(J); ASIA COLD COUNTRY SPEC,(J)
main77681-KK020iGUN126,TGN126..THP..(HTWC,MHV)..(ARL,GCC,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
(L); ASIA COLD COUNTRY SPEC,(L)
77682ASEAT, FUEL TANK BAND, NO.2
(J); ASIA COLD COUNTRY SPEC,(J)
(L); ASIA COLD COUNTRY SPEC,(L)
77697INSULATOR, FUEL TANK HEAT, NO.1
main77697-0K140iGUN125..RHD..L..GEN; GUN126..RHD..6F..H..GEN; GUN126..TWN;GUN126..MHV..(ARL,GCC,LA)202308-202407
BHUTAN SPEC; EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
77785HARNESS, FUEL PUMP
8401SWITCH & RELAY & COMPUTER
90105T0195
main90105-T0195
90178T0020
main90178-T0020
9017906146
main90179-06146
90182T0024
main90182-T0024
90182T0033
main90182-T0033
9026904059
main90269-04059
90301T0035
main90301-T0035
90466T0037
main90466-T0037
9046814039
main90468-14039
42 parts on this diagram · 8 diagrams in section
