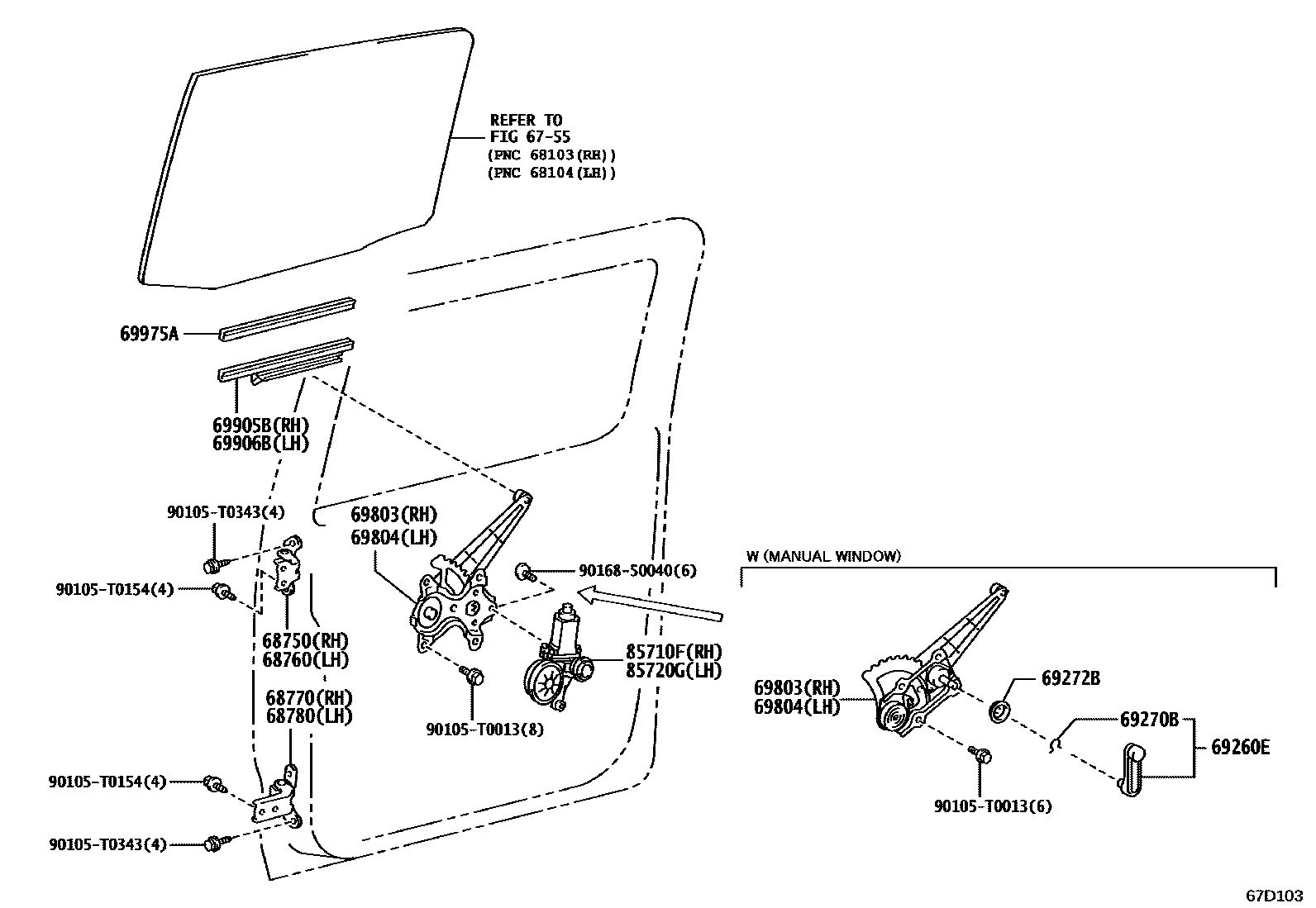

REAR DOOR WINDOW REGULATOR & HINGE
6755REAR DOOR PANEL & GLASS
68750HINGE ASSY, REAR DOOR, UPPER RH
68760HINGE ASSY, REAR DOOR, UPPER LH
68770HINGE ASSY, REAR DOOR, LOWER RH
68780HINGE ASSY, REAR DOOR, LOWER LH
69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR
main69260-0K010-C0×2iGUN125..THP..L..(IDN,LA,PH,SA);GUN122,135..LHD..THP..L..(GEN,LA,PH); GUN125..THP..L..LA;GUN122,135..LHD..THP..L..(GEN,LA); TGN126..L..GCC;GUN122,125,TGN121..MTM..L..GCC202308-202407
BLACK,TRIM2#; BLACK,TRIM2#,3#; POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#; POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#,3#
main69260-0K040-C0×2iGUN122,125,135,LAN125,TGN121,126..SAP..L; GUN126,135..S..SA;GUN125..RHD..6F..S..SA202402-202410
BLACK,TRIM2#; POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT,BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE
69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
main69803-0K110iGUN122..LHD..L..GEN; GUN122..S..GEN;GUN122..RHD..GEN;GUN126..MHV..ARL;GUN125..THP..S..SA;GUN125,126,13#,TGN121,126,136..THP..(DCRL,HTWC)..(ARL,GEN)202308-202407
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69803-0K120supersedes 69830-0K210iGUN122,125,LAN125,TGN121,126..SAP..L; GUN125..RHD..L..SA; TGN136..SA;GGN125,GUN125,126,13#,LAN125,TGN126..SAP..(H,S)202402-202410
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69803-0K130supersedes 69830-0K240iGUN125,135..AGTP..L..LA; GUN125,135..BZAG;GUN125,135..AGTP..S..LA;GGN125,GUN126,136,TGN126,136..AGTP202311-202410
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69830-0K180iTGN126..L..GCC;GUN122,135..LHD..THP..L..(GCC,GEN,LA,PH);GUN125,TGN121..THP..MTM..L..(GCC,IDN,LA,PH,SA)202308-202407
main69830-0K210iGUN122,125,135,LAN125,TGN121,126..SAP..L; GUN126..S..SA; GUN135..S..SA;GUN125..RHD..6F..S..SA202402-202410
EXPORT FROM SA&POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT; POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
main69804-0K110iGUN122..LHD..L..GEN; GUN122..S..GEN;GUN122..RHD..GEN;GUN126..MHV..ARL;GUN125..THP..S..SA;GUN125,126,13#,TGN121,126,136..THP..(DCRL,HTWC)..(ARL,GEN)202308-202407
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69804-0K120supersedes 69840-0K210iGUN122,125,LAN125,TGN121,126..SAP..L; GUN125..RHD..L..SA; TGN136..SA;GGN125,GUN125,126,13#,LAN125,TGN126..SAP..(H,S)202402-202410
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON); POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69804-0K130supersedes 69840-0K240iGUN125,135..AGTP..L..LA; GUN125,135..BZAG;GUN125,135..AGTP..S..LA;GGN125,GUN126,136,TGN126,136..AGTP202311-202410
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69804-0K160iGUN135..PH,TH,VN;GUN135..THP..S..LA;GUN122,TGN126..THP..L..(LA,TH);GUN125..THP..6FC..(GCC,IDN,LA);GUN122,TGN121,126..THP..(H,S)..(GCC,LA,TH);GUN125..THP..6F..(H,S)..(GCC,IDN,LA,TH,VN);GGN125,GUN120,121,126,136,TGN120..THP..(GCC,LA,PH,TH,TWN,VN); TGN126..L..GCC;GUN122,125,135,TGN121..THP..MTM..L..(GCC,LA)202308-202407
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69840-0K180iTGN126..L..GCC;GUN122,135..LHD..THP..L..(GCC,GEN,LA,PH);GUN125,TGN121..THP..MTM..L..(GCC,IDN,LA,PH,SA)202308-202407
main69840-0K210iGUN122,125,135,LAN125,TGN121,126..SAP..L; GUN126..S..SA; GUN135..S..SA;GUN125..RHD..6F..S..SA202402-202410
EXPORT FROM SA&POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT; POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69975AFILLER, REAR DOOR GLASS CHANNEL
main69975-0D130×2iGUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH
main85720-0K180supersedes 85720-0K270iGUN136,TGN136..(5F,6FC)..(DCRL,HTWC)..SA;GUN125,126,135,LAN125,TGN126..SAP..(H,S)..(DCRL,DEFI,HTWC)202308-202410
main85720-0K290iGUN125,135..AGTP..L..LA; GUN125,135..BZAG;GUN126..AGTP..H..LA;GUN126,TGN126,136..AGTP..(L,S);GUN125,13#,TGN126..AGTP..(6F,6FC)..(H,S)..LA; GUN126,136..H..BZAG202311-202410
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main85720-0K300iGGN125..LA;GUN126,136..H..BZAG;TGN126..AGTP..5F..H; GUN125..AGTP..6FC..LA;GUN126..AGTP..6FC..H..LA; TGN126,136..AGTP..S;GUN126..AGTP..6F..H..LA202311-202410
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
85720GMOTOR ASSY, POWER WINDOW REGULATOR, LH
main85710-0D580iTGN126..H..GCC;GUN126..THP..DCRL..(GCC,LA);GUN122,TGN126..THP..L..(LA,TH);GUN125..THP..6FC..(GCC,IDN,LA);GUN135,TGN126..THP..S..(GCC,LA);GUN125..THP..6F..(H,S)..(GCC,IDN,LA,TH,VN);GUN122,136,TGN121..THP..(H,S)..(GCC,LA,TH);GUN120,121,135,TGN120..(L,S)..(GCC,PH,TH,VN); TGN126..L..GCC;GUN122,125,135,TGN121..THP..MTM..L..(GCC,LA)202308-202407
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main85710-0K180supersedes 85710-0K270iGUN122..LHD..L..GEN; GUN125..H..GEN;GUN126..LHD..THP..6FC..H..GEN; TGN126..GEN;GUN122..S..GEN;GUN122..RHD..GEN;GUN125..THP..S..SA;GUN125,126,13#,TGN121,136..(L,S)..(DCRL,HTWC)..(ARL,GEN)202308-202407
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH
main85710-0K290iGUN125,135..AGTP..L..LA; GUN125,135..BZAG;GUN126..AGTP..H..LA;GUN126,TGN126,136..AGTP..(L,S);GUN125,13#,TGN126..AGTP..(6F,6FC)..(H,S)..LA; GUN126,136..H..BZAG202311-202410
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main85710-0K300iGGN125..LA;GUN126,136..H..BZAG;TGN126..AGTP..5F..H; GUN125..AGTP..6FC..LA;GUN126..AGTP..6FC..H..LA; TGN126,136..AGTP..S;GUN126..AGTP..6F..H..LA202311-202410
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
90105T0013
main90105-T0013
90105T0154
main90105-T0154
90105T0343
main90105-T0343
9016850040
main90168-50040
19 parts on this diagram · 1 diagram in section
