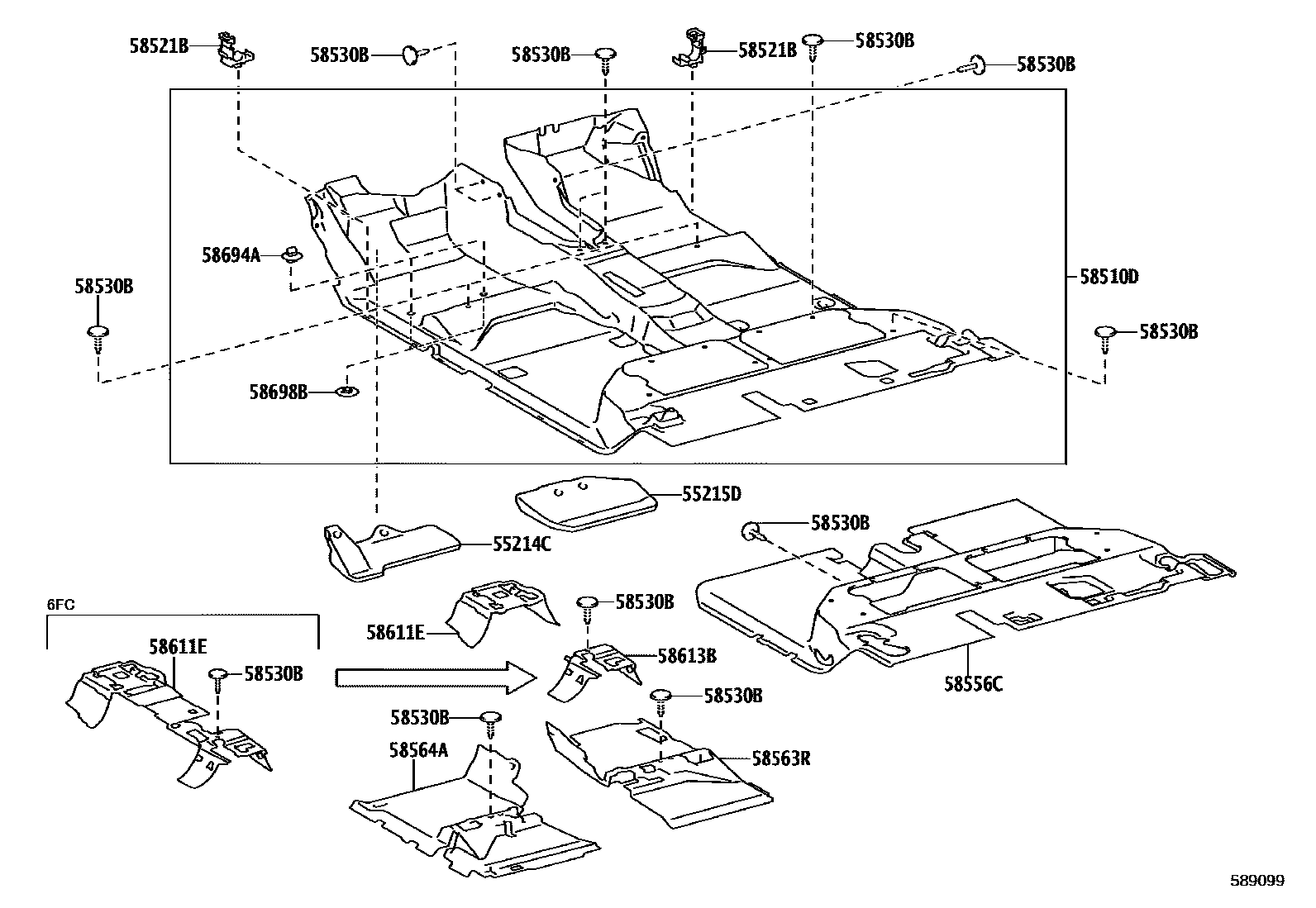

FLOOR MAT & SILENCER PAD
55214CPAD, DASH PANEL INSULATOR, NO.2
main55214-KK050iGUN126..RHD..THP..6FC..S;GUN126..6FC..H..(ARL,TH);GUN126..RHD..6FC..H..DCRL..GEN;GUN120,121,125,13#,TGN121..RHD..THP..6FC202308-202407
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM2#
BLACK,TRIM2#
main58500-0K440-C0iGUN122..SA;GUN125,LAN125,TGN126..LHD..SAP..MTM..(H,S); GUN125,TGN121..LHD..SAP..L; LAN125,TGN126..SAP..L202402-202410
BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
BLACK,TRIM2#; FRONT SEAT-BENCH TYPE(FOR TWO PERSONS),BLACK,TRIM2#; SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
main58510-0KW00-C0iGUN125,126,13#,TGN121..6FC..(L,S)..(DCRL,HTWC)..ARL; GUN125..6FC..L..GEN202308-202407
BLACK,TRIM2#; SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
BLACK,TRIM2#
main58510-0KW30-C0iGUN122..RHD..GEN; GUN126,136..6F..S..ARL;GUN125,TGN121..MTM..L..(ARL,IDN)202308-202407
BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#; SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
main58510-0KX10-C1iGUN125..6F..(H,S)..GCC;GUN122,126,TGN121,126..MTM..H..GCC; TGN121..5F..S;GUN125..6F..L..GCC;GUN122,TGN120,126..5F..(L,S)..GCC..CBU; TGN126..THP..LA;GUN125..LHD..THP..L..(GEN,LA,PH);GUN125..LHD..THP..6F..(H,S)..(GEN,LA,SA,VN);GUN122,126,13#,TGN121,136..LHD..THP..MTM..(GEN,LA,PH,VN)202308-202407
BLACK,TRIM2#; BLACK,TRIM2#,3#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
BLACK,TRIM2#
ASIA COLD COUNTRY SPEC,BLACK,TRIM2#; BLACK,TRIM2#
BLACK,TRIM2#
SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#
SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-VINYL LEATHER,BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
main90467-T0031-C0×20iGGN125,GUN125,126,TGN121,126..6FC..GCC; GUN122..RHD..GEN; GUN122..RHD..GEN;GUN125,126,135,TGN126..LHD..THP..6FC..(GEN,LA,PH,TWN,VN); GUN125..6F..(H,S)..GCC;GUN122,126,TGN121,126..MTM..H..GCC; GUN125..6F..L..GCC;GUN122,TGN12#..5F..(L,S)..GCC; GUN125..LHD..THP..L..(GEN,LA,PH);GUN125..LHD..THP..6F..(H,S)..(GEN,LA,SA,VN);GUN122,126,13#,TGN121,126,136..LHD..THP..MTM..(GEN,LA,PH,VN); GUN126..RHD..THP..6FC..S;GUN126..6FC..H..(ARL,TH);GUN126..RHD..6FC..H..DCRL..GEN;GUN120,121,125,13#,TGN121..RHD..THP..6FC; TGN121..5F..ARL;GUN125..THP..L..SA;GUN121,122,125,126,13#..RHD..THP..6F; TGN121..5F..S;GUN125..6F..L..GCC;GUN122,TGN120,126..5F..(L,S)..GCC..CBU202308-202407
BLACK,TRIM2#; BLACK,TRIM2#,3#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC),BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#; FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#,3#
58556CSILENCER, REAR FLOOR
main58569-0K030iTGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,136..THP..(DCRL,HTWC)202308-202407
58563RSILENCER, FRONT FLOOR, NO.3
ASIA COLD COUNTRY SPEC
58564ASILENCER, FRONT FLOOR, NO.4
main58564-0K110iTGN126..THP..(GCC,LA);GGN125,GUN122,125,126,13#,TGN120,121,136..LHD..THP..(DCRL,HTWC)202308-202407
ASIA COLD COUNTRY SPEC
58611ESHEET, FRONT FLOOR SILENCER
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC); FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)
main58661-0K020iGUN126..LHD..THP..6F;GUN125..LHD..THP..6F..(H,S);GUN122,TGN121,126..5F..H..GCC;GUN125..LHD..THP..L..(GEN,LA,PH);GUN122,13#,TGN121,126,136..LHD..THP..MTM..(GEN,LA,PH,VN); TGN121..5F..S;GUN125..THP..6F..L..(GCC,SA);GUN122,TGN120,126..5F..(L,S)..GCC..CBU202308-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
main58661-0K160iGUN122..SA;GUN125,LAN125,TGN126..LHD..SAP..MTM..(H,S); GUN125,LAN125,TGN121,126..LHD..SAP..L; GUN125,TGN121..LHD..SAP..L; LAN125,TGN126..SAP..L202402-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC); FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC); FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-VINYL LEATHER
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC); FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-VINYL LEATHER
58613BSHEET, FRONT FLOOR SILENCER, CENTER
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC); FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC)
main58662-0K020iGUN126..LHD..THP..6F;GUN125..LHD..THP..6F..(H,S);GUN122,TGN121,126..5F..H..GCC;GUN125..LHD..THP..L..(GEN,LA,PH);GUN122,13#,TGN121,126,136..LHD..THP..MTM..(GEN,LA,PH,VN); TGN121..5F..S;GUN125..THP..6F..L..(GCC,SA);GUN122,TGN120,126..5F..(L,S)..GCC..CBU202308-202407
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)
main58662-0K070iGUN122..SA;GUN125,LAN125,TGN126..LHD..SAP..MTM..(H,S); GUN125,LAN125,TGN121,126..LHD..SAP..L; GUN125,TGN121..LHD..SAP..L; LAN125,TGN126..SAP..L202402-202410
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC); FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABLIC(BASIC); FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-VINYL LEATHER
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC); FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-VINYL LEATHER
58694APLATE, MAT SET, UPPER
main58694-0K010×2iGUN12#,135..TH; TGN126..SAP..L;GUN126..AGTP..L;TGN126..THP..(GCC,GEN,LA);GUN126..MHV..(ARL,GCC,LA);GGN125,GUN135,LAN125..LHD..(H,L)..(GCC,SA);GUN122,125,126,13#,TGN120,121,136..(CAMP,INDP,MMRP,THP)..(DCRL,HTWC)..(ARL,GCC,GEN,IDN,IND,LA,MMR,PH,SA,TWN,VN)202308-202407
(L)
58698BPLATE, MAT SET, LOWER
main58698-0K070×2iGUN12#,135..TH; TGN126..SAP..L;GUN126..AGTP..L;TGN126..THP..(GCC,GEN,LA);GUN126..MHV..(ARL,GCC,LA);GGN125,GUN135,LAN125..LHD..(H,L)..(GCC,SA);GUN122,125,126,13#,TGN120,121,136..(CAMP,INDP,MMRP,THP)..(DCRL,HTWC)..(ARL,GCC,GEN,IDN,IND,LA,MMR,PH,SA,TWN,VN)202308-202407
(L)
main58698-76010×2iTGN126..AGTP;TGN126..SAP..S;GUN135..AGTP..L;GUN126,135,LAN125..(AGTP,GHAP,KENP,SAP)..(H,S)..(DCRL,DEFI);GGN125,GUN122,125,136,TGN121,136..(AGTP,GHAP,KENP,SAP)..(DCRL,HTWC)202309-202407
12 parts on this diagram · 6 diagrams in section
