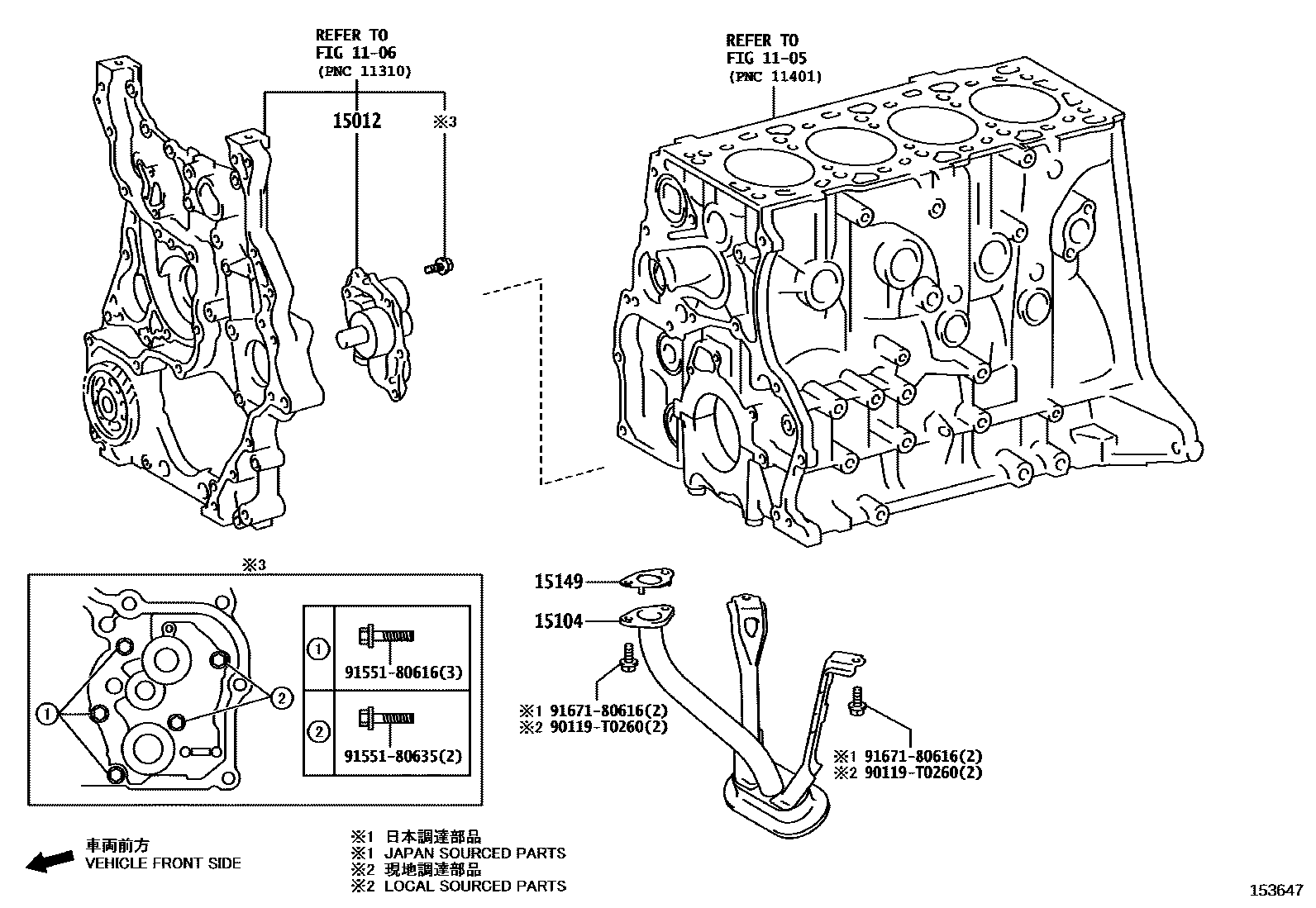

ENGINE OIL PUMP
1105CYLINDER BLOCK
1106TIMING GEAR COVER & REAR END PLATE
15012COVER SUB-ASSY, OIL PUMP
MLM ADVENTURE PACKAGE
15104STRAINER SUB-ASSY, OIL
MLM ADVENTURE PACKAGE,(L)
MLM ADVENTURE PACKAGE,(J)
15149GASKET, OIL STRAINER FLANGE
THA SOURCED PARTS
main15149-0E020i2GDFTV..GUN125..6F..ARL;2GDFTV..GUN125..RHD..6FC..L;1GDFTV,2GDFTV..GUN126,13#..ARL; 2GDFTV..GUN125..6FC..S..GEN;2GDFTV..GUN125..RHD..6F..L..GEN;1GDFTV..GUN126..RHD..6FC..H..GEN; 2GDFTV..GUN125..RHD..H..GEN202208-202307
IND SOURCED PARTS; OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; OCEANIA(EURO 5),IND SOURCED PARTS
main15149-11120i2GDFTV..GUN125..LHD..L..GEN; 2GDFTV..GUN125..LHD..S..GEN;2GDFTV..GUN120,125,135..GCC,PH,TH202208-202307
JAPAN SOURCED PARTS; MOROCCO SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),JAPAN SOURCED PARTS
90119T0260
main90119-T0260
9155180616
main91551-80616
9155180635
main91551-80635
9167180616
main91671-80616
9 parts on this diagram · 5 diagrams in section
