Toyota 6723A0 — RADIO RECEIVER & AMPLIFIER & CONDENSER

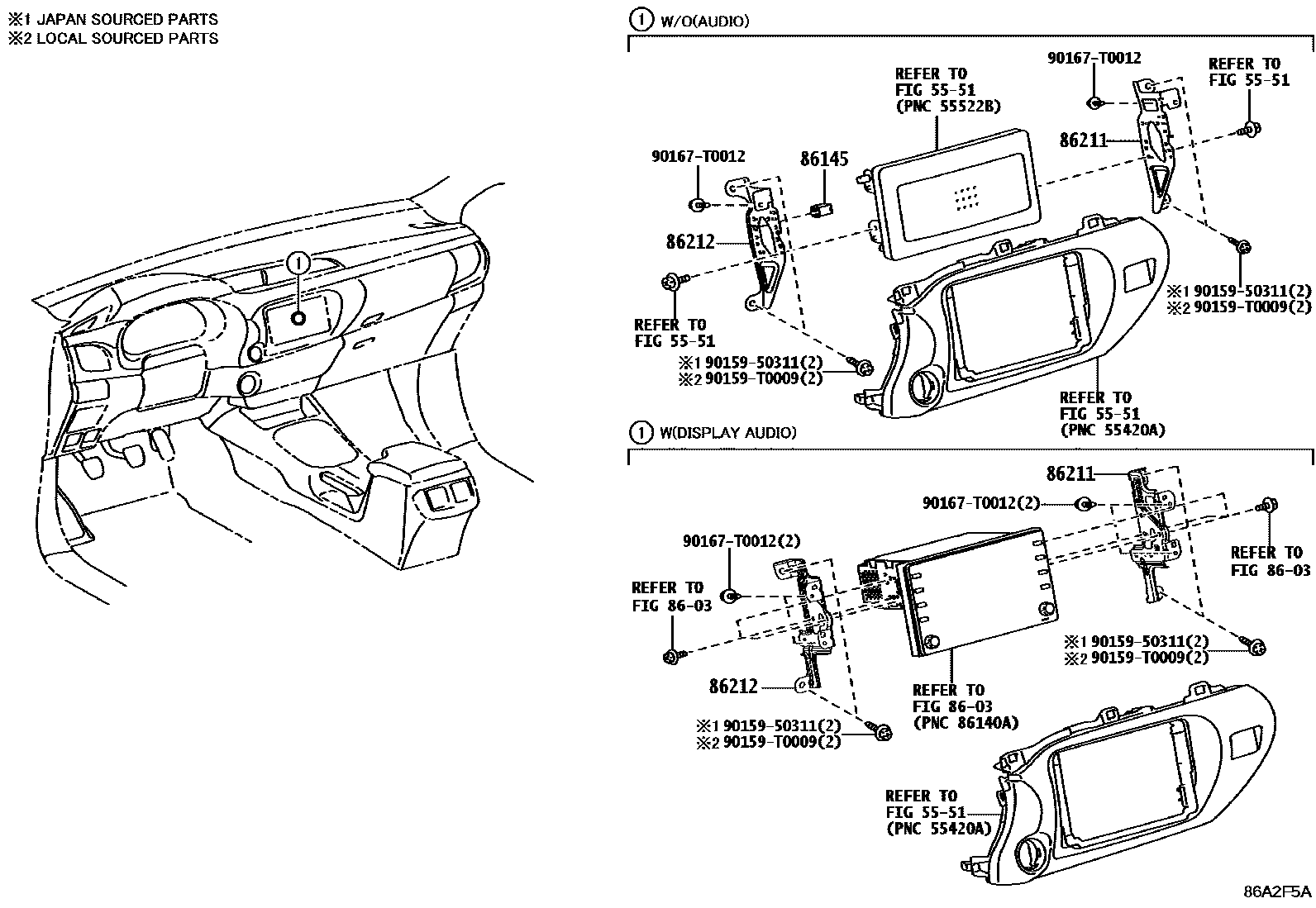

Parts diagram

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86145CONNECTOR, ANTENNA MALE

86211BRACKET, RADIO, NO.1

86212BRACKET, RADIO, NO.2

9015950311

90159T0009

90167T0012

8 parts on this diagram · 2 diagrams in section

RADIO RECEIVER & AMPLIFIER & CONDENSER for Toyota 6723A0

This section contains 10 genuine Toyota parts for the RADIO RECEIVER & AMPLIFIER & CONDENSER system of the Toyota 6723A0. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, NAVIGATION & FRONT MONITOR DISPLAY, CONNECTOR, ANTENNA MALE, ADAPTER ASSY, STEREO JACK, NO.1, WIRE, RADIO.
