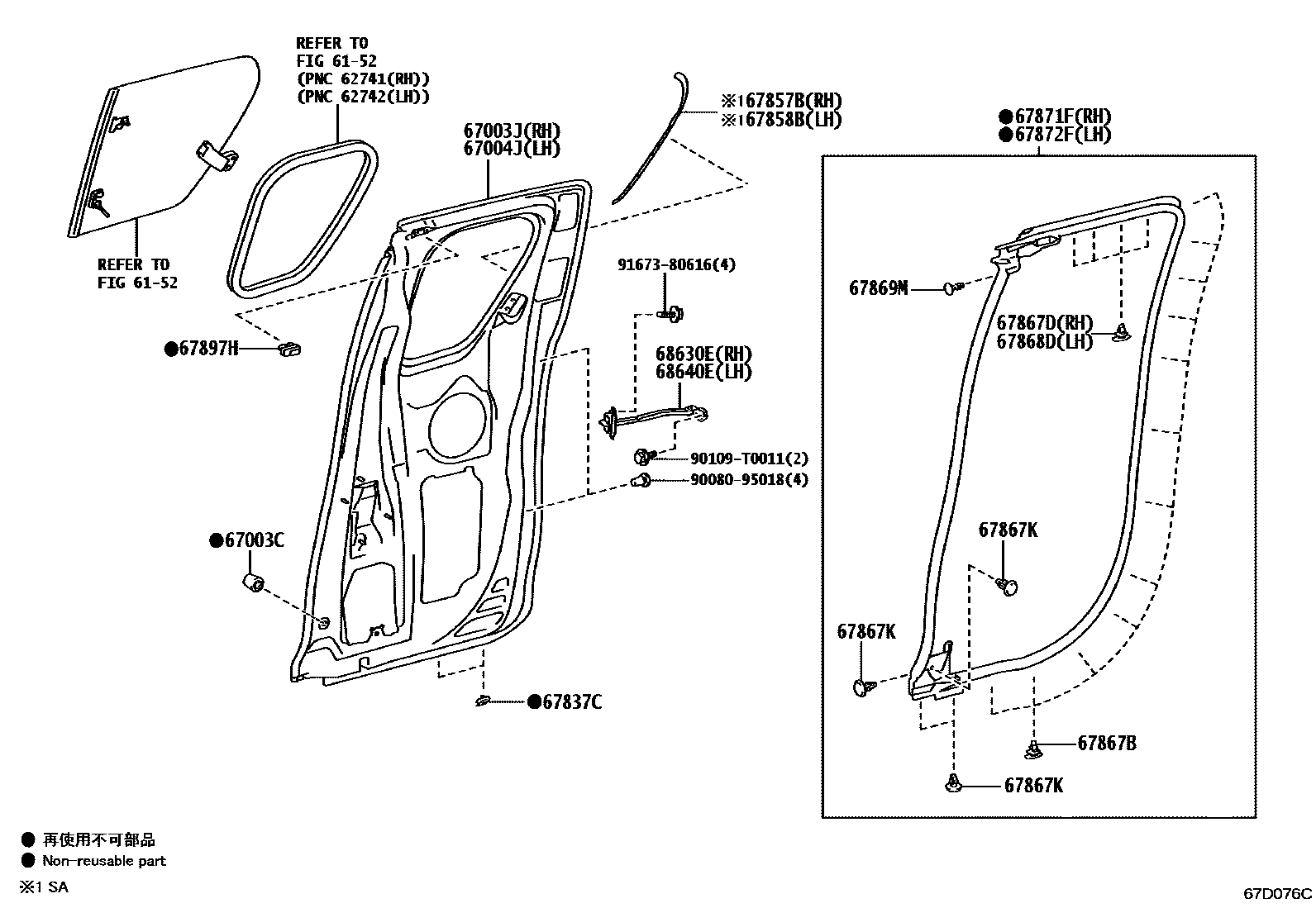

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

6152SIDE WINDOW

→ Go to FIG 61-52

67003CCUSHION, REAR DOOR PANEL

main90541-09131×2iGUN120,122,125,126,13#..XTR..THP202308-202407

67003JPANEL SUB-ASSY, ACCESS PANEL, RH

main67003-KK021iGUN120,122,125,126,13#..XTR..THP202308-202407

67004JPANEL SUB-ASSY, ACCESS PANEL, LH

main67004-KK021iGUN120,122,125,126,13#..XTR..THP202308-202407

67837CSEAL, REAR DOOR DUST PROOF

main67837-0K093×4iGUN120,122,125,126,13#..XTR..THP202308-202407

main67837-0K103×4iGUN125,126,13#..XTR..SA202402-202410

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-0K090iGUN125,126,13#..XTR..SA202402-202410

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-0K090iGUN125,126,13#..XTR..SA202402-202410

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67867-12150×24iGUN120,122,125,126,13#..XTR..THP202308-202407

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-52010×4iGUN120,122,125,126,13#..XTR..THP202308-202407

67867KCLIP, DOOR WEATHERSTRIP, LH(FOR REAR DOOR)

main67869-26050×8iGUN120,122,125,126,13#..XTR..THP202308-202407

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-52010×4iGUN120,122,125,126,13#..XTR..THP202308-202407

67869MCLIP, DOOR WEATHERSTRIP

main67869-20030×2iGUN120,122,125,126,13#..XTR..THP202308-202407

67871FWEATHERSTRIP, ACCESS PANEL, RH

main67871-0K090iGUN120,122,125,126,13#..XTR..THP202308-202407

67872FWEATHERSTRIP, ACCESS PANEL, LH

main67872-0K090iGUN120,122,125,126,13#..XTR..THP202308-202407

67897HCUSHION, REAR DOOR

main67897-0K020×2iGUN120,122,125,126,13#..XTR..THP202308-202407

68630ECHECK ASSY, ACCESS PANEL, RH

main68640-0K101iGUN120,122,125,126,13#..XTR..THP202308-202407

68640ECHECK ASSY, ACCESS PANEL, LH

main68640-0K101iGUN120,122,125,126,13#..XTR..THP202308-202407

9008095018

main90080-95018

90109T0011

main90109-T0011

9167380616

main91673-80616

20 parts on this diagram · 2 diagrams in section
