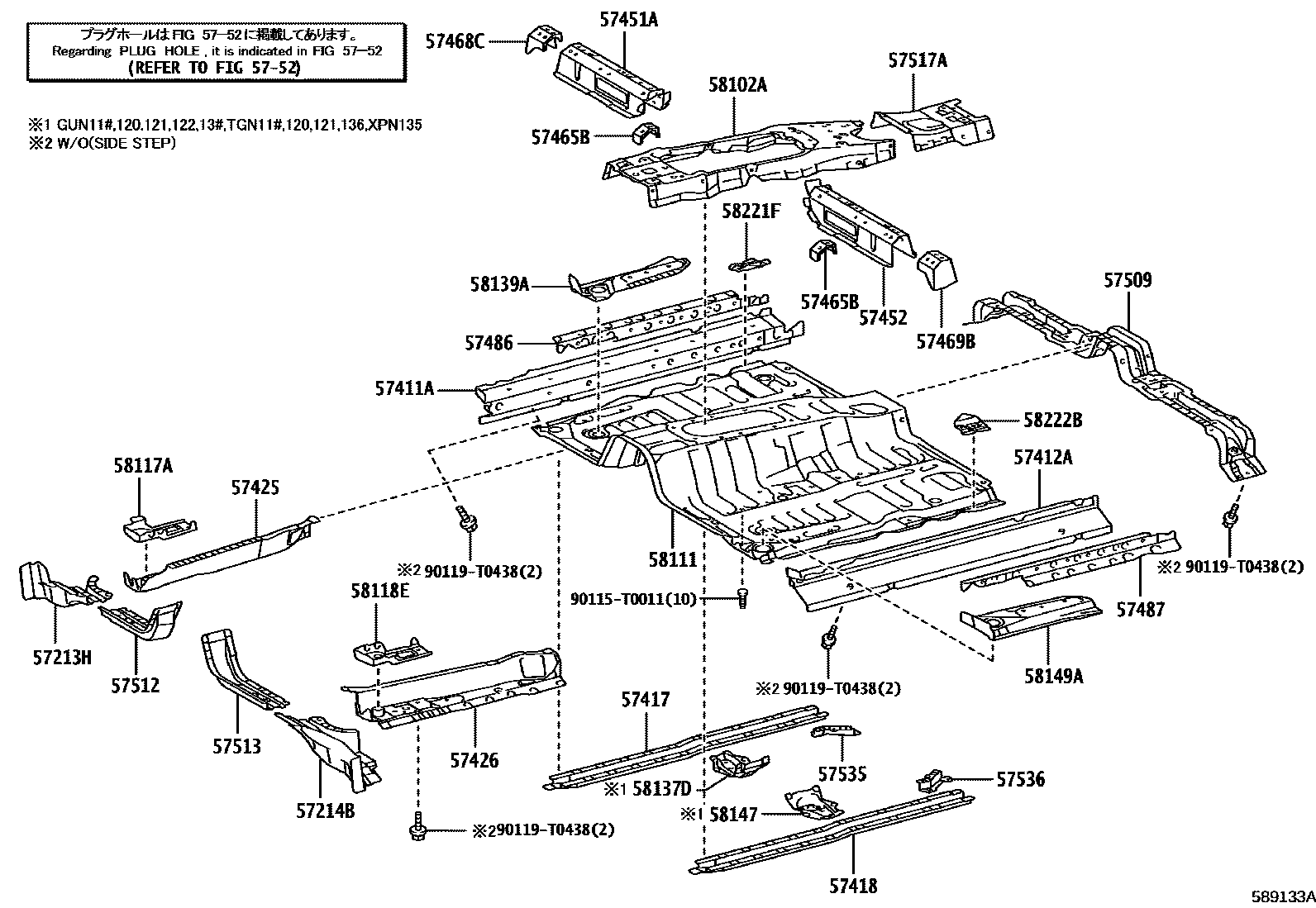

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1FLOOR PANEL 0002 1SHIFT LEVER BOOT 0003 1SIDE STEP 0004 1SIDE STEP

57213HBRACKET, BODY MOUNTING, NO.2 RH

main57213-KK010iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

57214BBRACKET, BODY MOUNTING, NO.2 LH

main57214-KK010iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-KK020iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-KK020iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-0K010iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-0K010iXPN135202311-202407

main57418-0K011iGUN125..MA202308-202408

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-KK010iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-KK010iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-KK010iGUN122,125,126,13#,LAN125,TGN12#,136..AGTP,SAP202308-202410

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-KK010iGUN125..MA202308-202408

57465BBRACKET, FRONT SEAT, INNER

main57465-KK010×2iGUN125,135..KEN202308-202412

57468CBRACKET, FRONT SEAT, OUTSIDE, RH

main57468-KK010iGUN122,125,126,13#,LAN125,TGN12#,136..AGTP,SAP202308-202410

57469BBRACKET, FRONT SEAT, OUTSIDE LH

main57469-KK010iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57486-KK010iGUN125..MA202308-202408

57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH

main57487-KK010iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-KK010iGUN135..KEN202308-202412

main57509-KK020iGUN125..MA202308-202408

main57509-KK070iXPN135202311-202407

57512REINFORCEMENT, FRONT FLOOR, RH

main57512-0K030iGUN125..MA202308-202408

57513REINFORCEMENT, FRONT FLOOR, LH

main57513-0K010iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR

main57517-KK010iGUN122,126,TGN121..PKN202308

main57517-KK020iGUN122,125,126,135,LAN125,TGN121,126,136..LHD..(AGTP,SAP)202308-202410

main57517-KK030iGUN125,126,13#..6FC..SA202308-202410

main57517-KK040iGUN126..6FC..GCC202308-202407

5752HOLE PLUG

→ Go to FIG 57-52

57535BRACE, FRONT FLOOR, RH

main57535-KK010iGUN122,125,126,13#,LAN125,TGN12#,136..AGTP,SAP202308-202410

57536BRACE, FRONT FLOOR, LH

main57536-KK010iGUN125..MA202308-202408

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-KK010iGUN125,135..KEN202308-202412

main58102-KK020iGUN11#,122,125,126,135,TGN11#,12#..LHD..THP..MTM202308-202407

main58102-KK030iGUN120,125,126,13#,TGN121..RHD..THP..6FC202308-202407

main58102-KK040iGUN126..6FC..GCC202308-202407

main58115-KK090iXPN135202311-202407

58111PAN, FRONT FLOOR

main58111-KK010iGUN125..MA202309-202408

main58111-KK090iGUN120,125,126,13#,TGN121..RHD..THP..6FC202308-202407

main58111-KK110iGUN122,126,TGN121..PKN202308

main58111-KK120supersedes 58111-KK150iGUN11#,122,125,126,135,TGN11#,12#..LHD..THP..MTM202308-202407

main58111-KK130iGUN126..6FC..GCC202308-202407

main58111-KK160iXPN135202311-202407

main58111-KK150iGUN126..LA202401-202410

CHILE SPEC

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-KK010iGUN122,125,126,13#,LAN125,TGN12#,136..AGTP,SAP202308-202410

58118EBRACKET, JACK SET

main58118-KK010iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

58137DBRACKET, FRONT FLOOR HOUSING, FRONT RH

main58137-KK010iGUN135..KEN202308-202412

58139APLATE, FRONT FLOOR SIDE, REAR RH

main58139-KK010iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

58147BRACKET, FRONT FLOOR HOUSING, FRONT LH

main58147-KK010iGUN11#,120,121,122,13#,TGN11#,120,121,XPN135..THP202308-202407

58149APLATE, FRONT FLOOR SIDE, REAR LH

main58149-KK010iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

58221FREINFORCEMENT, FLOOR PANEL, FRONT RH

main58221-KK010iGUN125,126,13#,TGN121..ARL202308-202407

main58221-KK020iGUN122,125,126,13#,LAN125,TGN12#,136..AGTP,SAP202308-202410

58222BREINFORCEMENT, FLOOR PANEL, FRONT LH

main58222-KK010iGUN125,126,13#,TGN121..ARL202308-202407

main58222-KK020iGUN122,126,TGN121..PKN202308

90115T0011

main90115-T0011

90119T0438

main90119-T0438

34 parts on this diagram · 4 diagrams in section
