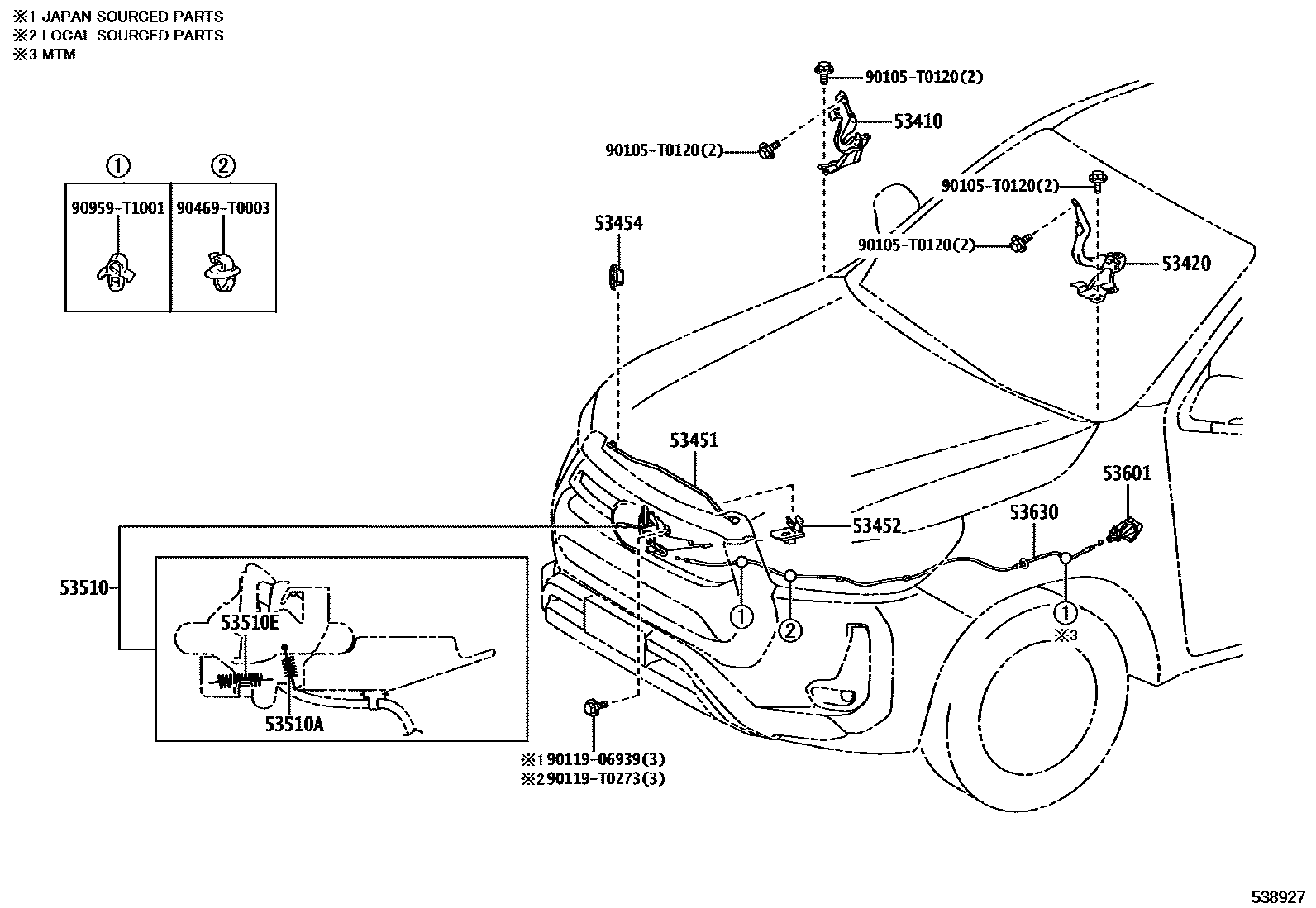

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-0K230iGUN125,135..KEN202402-202412

main53410-0K240iGUN125,126,135,TGN126,136..AGTP202311-202410

main53410-0K270iGUN122,126,TGN121..PKN202412

main53410-0K370iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

53420HINGE ASSY, HOOD, LH

main53420-0K230iGUN122,125,126,13#,LAN125,TGN120,121,136..SA202402-202410

main53420-0K240iGUN125,126,135,TGN126,136..AGTP202311-202410

main53420-0K270iGUN122,126,TGN121..PKN202412

main53420-0K370iGUN125..MA202308-202408

53451ROD, HOOD SUPPORT

main53440-0K010iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

main53440-0K020iGUN122,125,126,13#,LAN125,TGN120,121,136..SA202402-202410

main53440-0K030iGUN125,126,135,TGN126,136..AGTP202311-202410

main53440-0K040iGUN125..MA202309-202408

main53440-0K060iGUN122,126,TGN121..PKN202412

53452HOLDER, HOOD STAY

main53452-0K020iGUN125..MA202308-202408

53454CLIP, HOOD SUPPORT ROD

main53454-0D010iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

main53454-52020iGUN125..MA202309-202408

53510LOCK ASSY, HOOD

main53510-0K380iGUN11#,122,125,126,TGN11#,12#..GCC202308-202407

main53510-0K590iGUN122,126,TGN121..PKN202412

main53510-0K650iGUN125,135..RHD..THP..L..CBU;GUN112,120,121,122,126,TGN110,121,XPN135..RHD..(L,S)..(GEN,IDN,TH)202308-202407

main53510-0K660iGUN125,136..ARL,TH;GUN135,TGN121..ARL;GUN126,135..RHD..THP..(H,S); GUN135..L..TH;GUN126..6FC..L202308-202407

TOYOTA STOP & START SYSTEM-WITH

main53510-0K670iGUN122,125,135,TGN121,126..LHD..THP..(GEN,LA,PH)202308-202407

main53510-0K690iGUN125,135..L..KEN202402-202412

main53510-0K700supersedes 53510-0K690iGUN125,135..RHD..SCB..L..SA; GUN125..XTR..L..CBU;GUN125,135..RHD..S..SA;GUN122,126,136,TGN120,136..RHD..SA202402-202410

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)

main53510-0K710iGUN122,125,LAN125,TGN121..LHD..L..SA202402-202410

main53510-0K720iGUN122,LAN125,TGN121..LHD..SA; GUN125..LHD..S..SA202402-202410

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)

main53510-0K730iGUN125,126,135,TGN126..AGTP202311-202410

main53510-0K740iGUN126..LA; TGN136..LA202311-202410

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

main53510-0K470iGUN126..6FC..GCC202308-202407

SAUDI ARABIA SPEC&TOYOTA STOP & START SYSTEM-WITH

main53510-0K680iTGN121..GEN;GUN125..XTR..GEN202308-202407

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-T0004iGUN122,125,126,13#,LAN125,TGN12#,136..AGTP,SAP202308-202410

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-T0005iGUN11#,12#,13#,TGN11#,12#,XPN135..THP202308-202407

WD=0.9,CW=21

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D040-C0iGUN11#,122,125,126,TGN11#,12#..GCC; GUN112,12#,13#,TGN110,121,126,XPN135..THP..(ARL,GEN,IDN,LA,PH,TH)202308-202407

BLACK,TRIM2#; BLACK,TRIM2#,3#

main53601-0K120-C0iGUN125,135..KEN202402-202412

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0K210iGUN112,12#,13#,TGN110,121,XPN135..RHD..THP202308-202407

main53630-0K260iGUN11#,122,125,126,135,TGN11#,12#..LHD..THP202308-202407

main53630-0K320iGUN125..MA202309-202408

90105T0120

main90105-T0120

9011906939

main90119-06939

90119T0273

main90119-T0273

90469T0003

main90469-T0003

90959T1001

main90959-T1001

15 parts on this diagram · 2 diagrams in section
