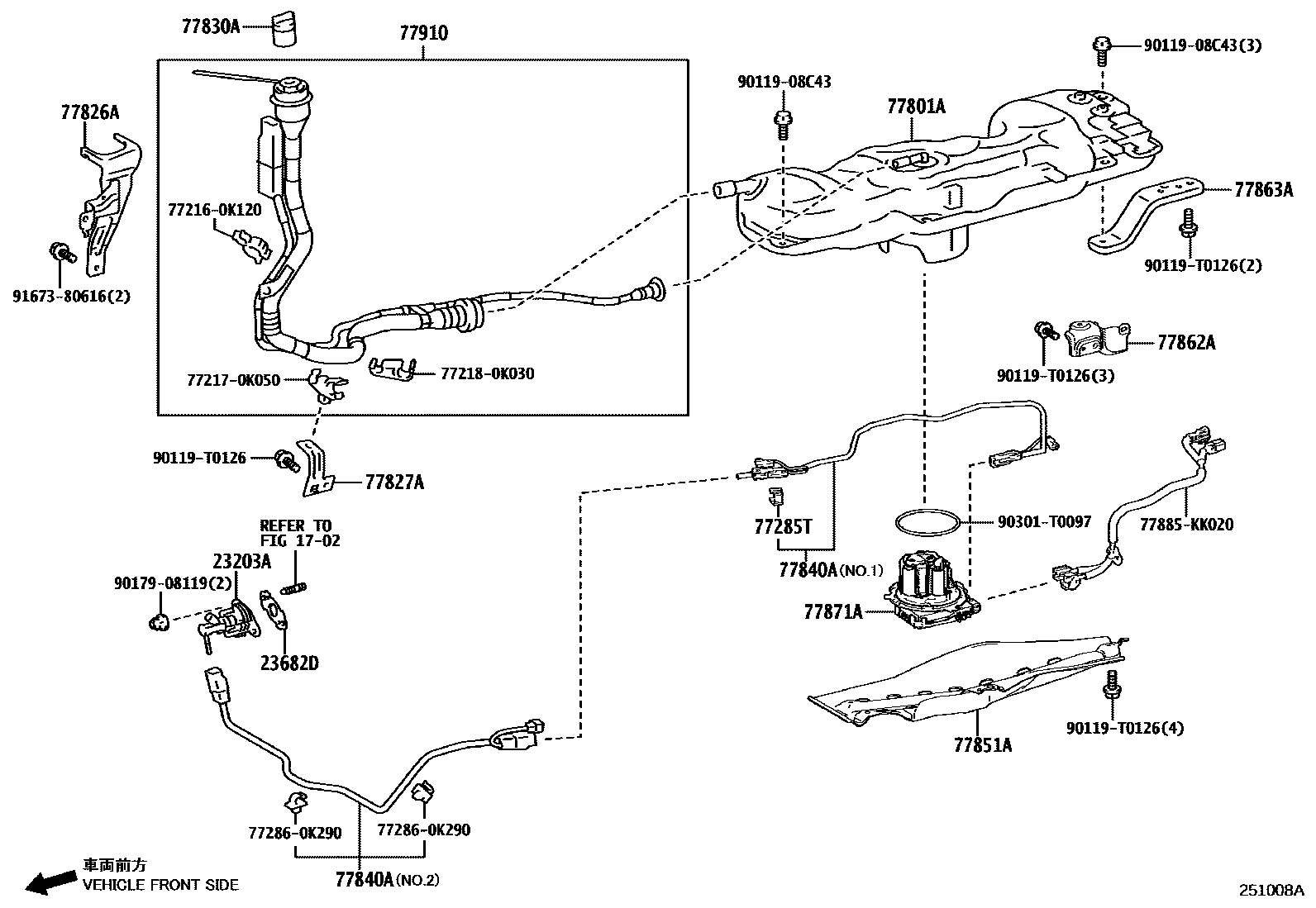

UREA TANK & TUBE
1702EXHAUST PIPE
23203AINJECTOR SET, UREA
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
23682DGASKET, NOZZLE HOLDER
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-WITHOUT
77285TCLAMP, UREA TUBE, NO.1
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-WITHOUT
77801ATANK SUB-ASSY, UREA
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-WITHOUT
77826ASUPPORT, UREA TANK FILLER PIPE, NO.1
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS)
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6B WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-WITHOUT
77827ASUPPORT, UREA TANK FILLER PIPE, NO.2
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-WITHOUT
77830ACAP ASSY, UREA TANK
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-WITHOUT
77840ATUBE ASSY, UREA W/HEATER
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),NO.2; EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),NO.2; EXHAUST EMISSION CONTROL-WITHOUT,NO.2
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),NO.1; EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),NO.1; EXHAUST EMISSION CONTROL-WITHOUT,NO.1
77851APROTECTOR, UREA TANK
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-WITHOUT
77862ABRACKET, UREA TANK, NO.2
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-WITHOUT
77863ABRACKET, UREA TANK, NO.3
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-WITHOUT
77871APUMP, UREA
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-WITHOUT
77910PIPE ASSY, UREA TANK FILLER
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-WITHOUT
772160K120COVER, FUEL PIPE
main77216-0K120
772170K050CONNECTOR, FUEL TANK INLET PIPE (FOR LPG)
main77217-0K050
772180K030PLATE, FUEL INLET PIPE SET
main77218-0K030
772860K290PROTECTOR, FUEL TANK INLET PIPE
main77286-0K290
77885KK020HARNESS, UREA TANK
main77885-KK020
9011908C43
main90119-08C43
90119T0126
main90119-T0126
9017908119
main90179-08119
90301T0097
main90301-T0097
9167380616
main91673-80616
24 parts on this diagram · 1 diagram in section
