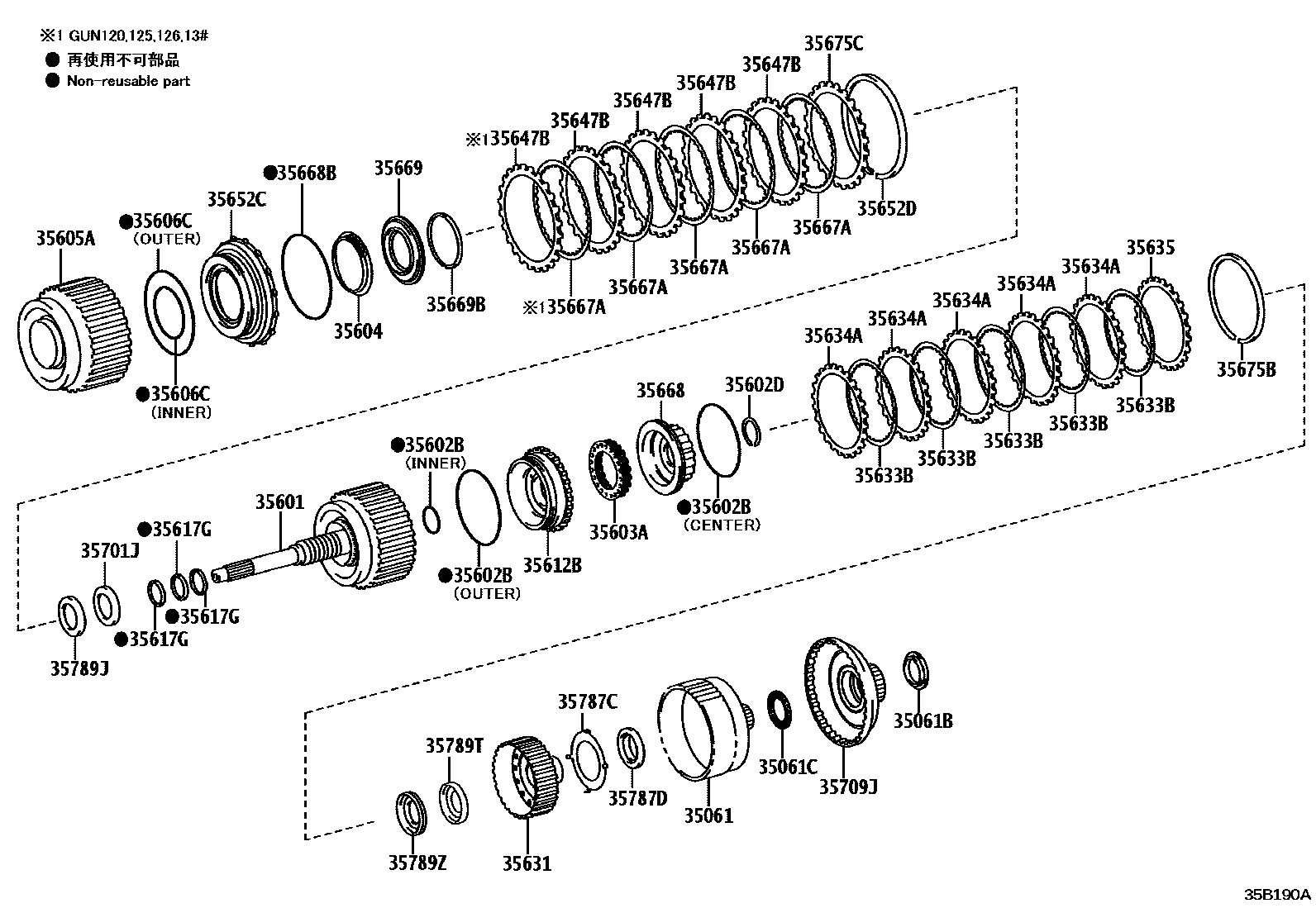

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

35061HUB SUB-ASSY, FORWARD CLUTCH

main35061-71010iGUN125,126,13#..6FC..SA202208-202401

35061BRACE, THRUST BEARING(FOR FORWARD CLUTCH HOB)

main35789-71020iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

35061CBEARING, THRUST NEEDLE ROLLER(FOR FORWARD CLUTCH HUB)

main90374-39008iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

35601DRUM SUB-ASSY, CLUTCH

main35601-0K010iGUN120,125,135..THP..6FC202208-202307

(L)

main35601-0K020iTGN121..6FC202208-202307

(L)

main35601-0K030iGUN126,136..THP..6FC202208-202307

(L)

main35601-26020iGUN126,136..THP..6FC; GUN126..THP..6FC202208-202307

(J)

main35601-71030iGUN120,125,135..THP..6FC; GUN120,135..6FC..TH202208-202307

(J)

main35601-71040iTGN121..6FC202208-202307

(J)

35602BRING, O (FOR FORWARD CLUTCH PISTON)

main90301-33017iGUN125,126,13#..6FC..SA202208-202401

INNER

main90301-99096iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

CENTER

main90301-99145iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

OUTER

main90301-T0087iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

(L),OUTER

main90301-T0088iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

(L),INNER

main90301-T0091iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

(L),CENTER

35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)

main90520-35003iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN

main35603-0K010iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

(L)

main35603-60020iGUN120,125,126,13#,TGN121..THP..6FC; GUN120,126,135..THP..6FC202208-202307

(J)

35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN

main35604-0K010iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

(L)

main35604-71010iGUN120,125,126,13#,TGN121..THP..6FC; GUN120,126,135..THP..6FC202208-202307

(J)

35605ADRUM SUB-ASSY, DIRECT CLUTCH

main35605-0K010iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

(L)

main35605-71010iGUN120,125,126,13#,TGN121..THP..6FC; GUN120,126,135..THP..6FC202208-202307

(J)

35606CRING, O (FOR DIRECT CLUTCH PISTON)

main90301-74004iGUN125,126,13#..6FC..SA202208-202401

INNER

main90301-99205iGUN120,125,126,13#,TGN121..THP..6FC; GUN120,126,135..THP..6FC202208-202307

(J),OUTER; OUTER

main90301-T0092iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

(L),INNER

main90301-T0093iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

(L),OUTER

35612BPISTON, FORWARD CLUTCH

main35612-0K010iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

(L)

main35612-71010iGUN120,125,126,13#,TGN121..THP..6FC; GUN120,126,135..THP..6FC202208-202307

(J)

35617GRING, CLUTCH DRUM OIL SEAL

main35617-71010×3iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)

main35631-0K010iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

(L)

main35631-71010iGUN120,125,126,13#,TGN121..THP..6FC; GUN120,126,135..THP..6FC202208-202307

(J)

35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35633-71010×5iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35634-71010×5iGUN125,126,13#..6FC..SA202208-202401

T=3.0

35635FLANGE, FORWARD CLUTCH

main35635-71010iGUN125,126,13#..6FC..SA202208-202401

T=3.0

main35635-71020iGUN125,126,13#..6FC..SA202208-202401

T=3.1

main35635-71030iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

T=3.2

main35635-71040iGUN125,126,13#..6FC..SA202208-202401

T=3.3

main35635-71050iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

T=3.4

main35635-71060iGUN125,126,13#..6FC..SA202208-202401

T=3.5

main35635-71070iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

T=3.6

main35635-71080iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

T=3.7

main35635-71090iGUN125,126,13#..6FC..SA202208-202401

T=3.8

main35635-71100iGUN125,126,13#..6FC..SA202208-202401

T=3.9

main35635-71110iGUN125,126,13#..6FC..SA202208-202401

T=4.0

main35635-71120iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

T=4.1

main35635-71130iGUN125,126,13#..6FC..SA202208-202401

T=4.2

35647BPLATE, CLUTCH, NO.2

main35647-71010×5iGUN120,125,126,13#..THP..6FC; TGN121..6FC202208-202307

35652CPISTON, DIRECT CLUTCH

main35652-0K010iGUN120,125,126,13#..THP..6FC202208-202307

(L)

main35652-0K020iTGN121..6FC202208-202307

(L)

main35652-71010iGUN120,125,126,13#..THP..6FC; GUN120,126,135..THP..6FC202208-202307

(J)

main35652-71020iTGN121..6FC202208-202307

(J)

35652DRING, SNAP (FOR DIRECT CLUTCH PISTON)

main90520-99159iGUN125,126,13#..6FC..SA202208-202401

main90520-T0289iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

(L)

35667ADISK, DIRECT CLUTCH

main35667-71010×4iGUN120,125,126,13#..THP..6FC; TGN121..6FC202208-202307

35668BALANCER, CLUTCH, NO.1

main35668-0K010iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

(L)

main35668-71010iGUN120,125,126,13#,TGN121..THP..6FC; GUN120,126,135..THP..6FC202208-202307

(J)

35668BRING, O(FOR CLUTCH BALANCER)

main90301-99204iGUN120,125,126,13#,TGN121..THP..6FC; GUN120,126,135..THP..6FC202208-202307

(J)

main90301-T0094iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

(L)

35669BALANCER, CLUTCH, NO.2

main35669-0K010iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

(L)

main35669-71010iGUN125,126,13#..6FC..SA202208-202401

35669BRING, SNAP (FOR CLUTCH BALANCER)

main90520-68006iGUN120,125,126,13#,TGN121..THP..6FC; GUN120,126,135..THP..6FC202208-202307

(J)

main90520-T0287iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

(L)

35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)

main90520-99158iGUN125,126,13#..6FC..SA202208-202401

main90520-T0286iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

(L)

35675CFLANGE, DIRECT CLUTCH

main35675-71010iGUN125,126,13#..6FC..SA202208-202401

T=3.0

main35675-71020iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

T=3.1

main35675-71030iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

T=3.2

main35675-71040iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

T=3.3

main35675-71050iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

T=3.4

main35675-71060iGUN125,126,13#..6FC..SA202208-202401

T=3.5

main35675-71070iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

T=3.6

35701JBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)

main90374-34015iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

35709JDRUM SUB-ASSY, SUN GEAR INPUT

main35709-71010iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

35787CRACE, THRUST BEARING, NO.2

main35787-60010iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

35787DBEARING, THRUST NEEDLE ROLLER

main90374-38005iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

35789JRACE, THRUST BEARING (FOR INPUT SHAFT FRONT)

main35789-71010iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

35789TRACE, THRUST BEARING (INPUT SHAFT REAR)

main35789-50050iGUN120,125,126,13#,TGN121..THP..6FC202208-202307

35789ZBEARING, THRUST NEEDLE ROLLER

main90374-21004iGUN120,125,135,TGN121..THP..6FC202208-202307

main90374-21014iGUN126,136..THP..6FC202208-202307

33 parts on this diagram · 1 diagram in section
