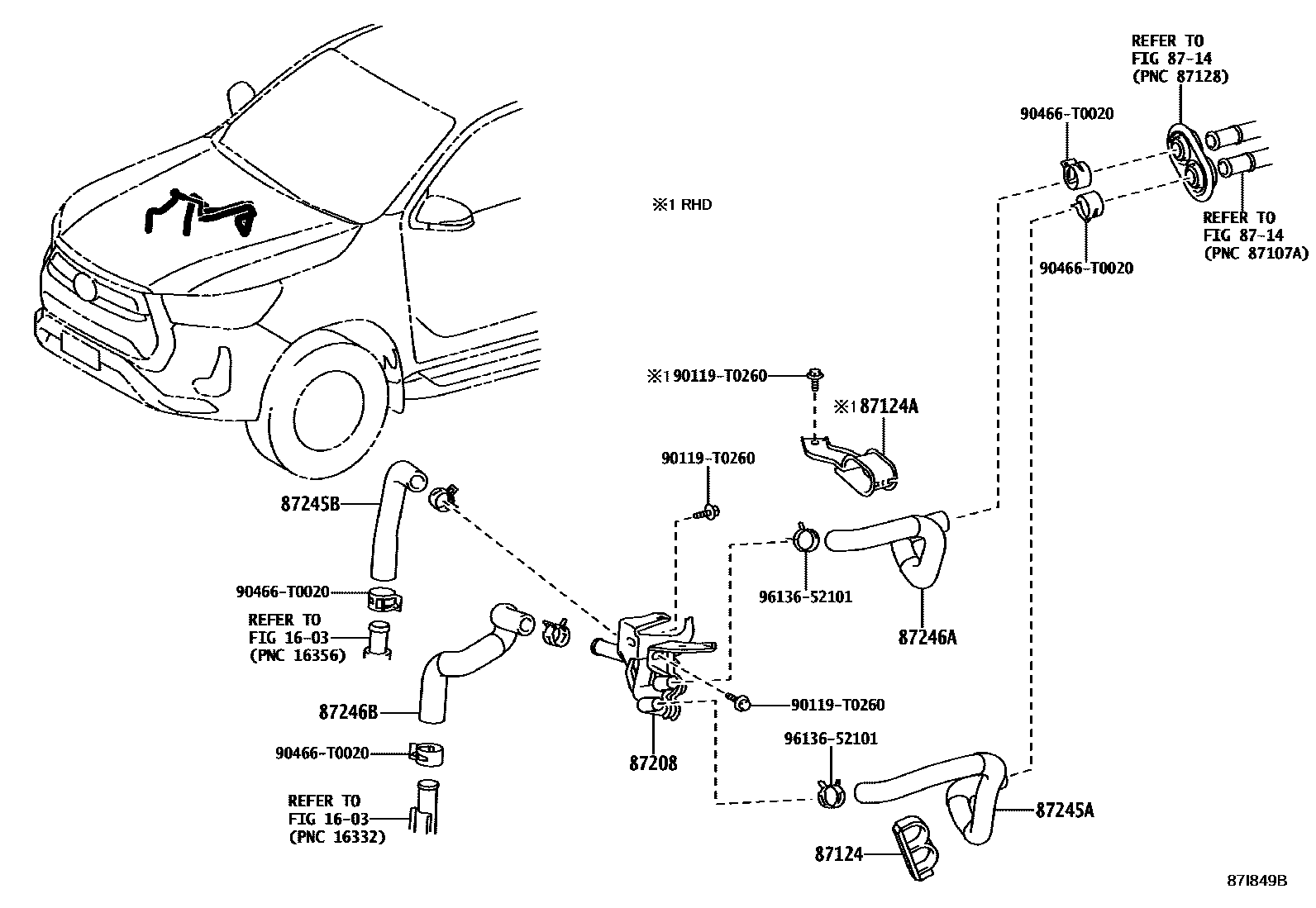

HEATING & AIR CONDITIONING - WATER PIPING
1603RADIATOR & WATER OUTLET
87124CLAMP, HEATER
main87124-0K160supersedes 87124-0K150iGUN125..AD;GUN125..AS..BZAG;GUN126,13#..AD,AS; GUN125..AS..LA202011-202110
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-WITHOUT
87124ACLAMP, HEATER
ASIA COLD COUNTRY SPEC
8714HEATING & AIR CONDITIONING - COOLER UNIT
87208PIPE SUB-ASSY, HEATER WATER
87245AHOSE, HEATER WATER, INLET A
main87245-0KD10iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA); GUN126..TWN;GUN125..AS..LA;GUN135..L..GEN202006-202110
EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
main87245-0KE02iGUN135..H;GUN126..TD..L;GUN125..H..IDN;GUN135..(SD,SX,TD)..6FC..(ARL,LA,SA,VN);GUN135..(KS,SD,SS,SX,TD,TS)..6F..(ARL,KEN,LA,SA,VN);GUN112,122,125,136..(KD,KS,SD,SS,SX,TD,TS,TX)..(ARL,GCC,GEN,KEN,LA,SA,VN);GUN126..(KD,MMD,SD,SS,SX,TD,TS,TX)..(H,S)..(ARL,GCC,GEN,KEN,LA,MMR,PH,SA,TH,VN)202006-202301
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-WITHOUT
87245BHOSE, HEATER WATER, INLET B
ASIA COLD COUNTRY SPEC
87246AHOSE, HEATER WATER, OUTLET A
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 5, WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-WITHOUT
main87245-0KF00iGUN126,136..LA;GUN125..TD..LA;GUN135..(AD,AS,TD)..6F..LA;GUN125..(AD,TX)..(L,S)..(GEN,LA); GUN126..TWN;GUN125..AS..LA;GUN135..L..GEN202006-202110
EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
87246BHOSE, HEATER WATER, OUTLET B
ASIA COLD COUNTRY SPEC
90119T0260
main90119-T0260
90466T0020
main90466-T0020
9613652101
main96136-52101
12 parts on this diagram · 6 diagrams in section
