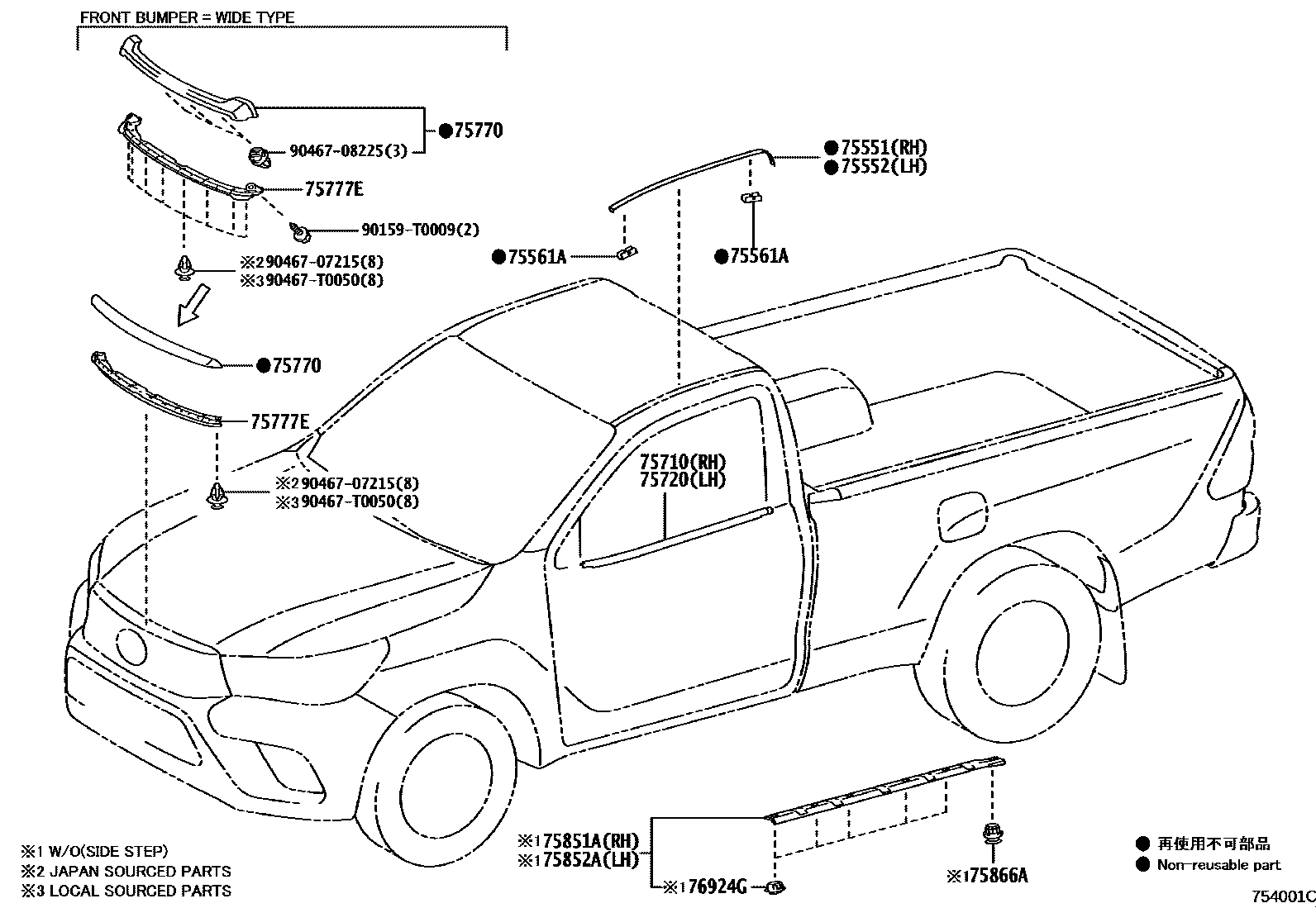

MOULDING
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
main75561-33030×4iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301
75710MOULDING ASSY, FRONT DOOR BELT, RH
main68160-0K010iGUN126,136..AD..LA;GUN126,136..AD..(L,S)..BZAG;GUN125,135,TGN126,128,13#..AD; GUN126,136..H..BZAG202006-202110
DOOR BELT MOULDING-WITH(BLACK)
main68160-0K070iGUN125..RHD..(MD,TD)..H..(GEN,MA);GUN126,135..(MD,MMD,TD)..H..(GEN,MA,MMR,PH,TH,VN)202006-202301
75720MOULDING ASSY, FRONT DOOR BELT, LH
main68210-0K010iGUN126..PD..L;GUN126..S..GEN;GUN125..H..(GCC,IDN,SA);GUN125..LHD..TD..H..GEN;GUN125,135..(KD,MD,SD,TD)..(L,S);GUN126..(KD,SD,TD)..(ARL,GCC,KEN,LA,SA,TWN);GGN125,GUN120,122,136,LAN125,TGN120,121,126,136..SD,TD202006-202201
main68210-0K070iGUN125..RHD..(MD,TD)..H..(GEN,MA);GUN126,135..(MD,MMD,TD)..H..(GEN,MA,MMR,PH,TH,VN)202006-202301
75770MOULDING ASSY, HOOD, FRONT
main75770-0K311iTGN121..GEN..CBU;GUN125,126,135,TGN126,136..(AD,TD)..L..LA; TGN136..GEN;TGN120,121..GCC;GUN122..5F..(H,S);TGN126..(AS,TS)..LA;GUN125,TGN126..TS..(H,S);GUN122,125,TGN126..L..GCC;GUN112,126,136,TGN11#..TS..(ARL,GCC)202006-202110
PLATED; PLATED,REAR BUMPER-STEP TYPE(PLATED)
main75770-0K341iGUN135,TGN136..TD..L..LA;GUN122,125,TGN126..TD..MTM..L..(GEN,LA,PH);GUN122,125,135..(MS,PS,TS)..L..(ARL,GEN,IDN,LA,MA,PH,PKN,TH);GUN112,120,123,126,TGN110,121..(PD,PS,TD,TS)..L..(ARL,GEN,IDN,LA,PKN,TH)202006-202201
NO PAINT REQ.
main75770-0K351iGUN125..RHD..SS..6F..S..CBU; GUN126..SS..S;GUN125..SS..6FC;GUN125..LHD..SS..S;TGN126,136..LHD..S..SA;GUN125,135,LAN125..SD..MTM..S; TGN136..RHD..SD; TGN136..SS202009-202109
PLATED; PLATED,REAR BUMPER-WITH(*RUPD(PLATED)); PLATED,TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR; PLATED,TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-PAINTED; PLATED,TIRE & DISC WHEEL-225/70R17C, STEEL&RADIATOR GRILLE-PAINTING
main75770-0K371iGUN125,126,135,TGN136..AD..L..BZAG; GUN125,135,TGN136..AD..L..BZAG; GUN135..AS;GUN135,TGN126..AD..L..LA;GUN125,126,TGN136..AS..BZAG;GUN125,126,TGN136..(AD,AS)..L..LA; TGN126..AS202011-202110
NO PAINT REQ.; NO PAINT REQ.,RADIATOR GRILLE-MOLDING; NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-MATERIAL COLOR; NO PAINT REQ.,TIRE & DISC WHEEL-225/70R17C, STEEL&FRONT BUMPER-PAINTED
main75770-0K380supersedes 75770-0K430iGUN125,135,TGN136..(AD,MD,TD,TX)..L..(ARL,BZAG,IDN,MA); GUN125,135..(AD,TD)..L..LA;GUN125..RHD..TD..6F..L..GEN; GUN125..RHD..TD..6F..L..GEN;GUN125,126,135,TGN126,136..(AD,TD)..L..LA202006-202110
NO PAINT REQ.; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17, ALUMINUM; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17, STEEL
main75770-0K390iGUN125..6FC..S..MA;GUN126,135..TD..S..LA;GUN125..TD..6FC..L..GEN;GUN126..RHD..(PD,TD,TX)..S;GUN135..(L,S)..(GEN,PH,TH,VN);GUN125,136,TGN126..(TD,TX)..S..(ARL,GEN,LA,TH,VN)202006-202201
NO PAINT REQ.
main75770-0K401iGUN125..(GD,SD)..L;GUN125..LHD..SS..L;GUN125..RHD..(KD,KS,SS)..6F;GUN122,135,LAN125,TGN120,121,126..L..(KEN,SA)202009-202111
NO PAINT REQ.
main75770-0K430supersedes 75770-0K450iTGN126..TD..H..LA;GUN126..LHD..S..GEN;GUN125..6F..(H,S)..(GCC,IDN,MA);GUN125..(MD,TD,TX)..H..(GEN,IDN,MA);GGN125,GUN126,13#..(MD,MMD,TD,TX)..H;GUN125,TGN126..TD..(5F,6FC)..(H,S)..GCC202006-202301
PLATED
NO PAINT REQ.
main75770-0K470iGGN125,TGN136..RHD;GUN135..(SS,SX)..S;GUN125,135..RHD..SD..6FC;GUN125,126,136..H..(GHA,KEN,SA)202009-202111
PLATED
main75770-0K490iGUN125,135..RHD..SD..6F..S; GUN125..SX..L; TGN136..RHD..SD;GUN135..SS..6F..S; TGN136..SS202009-202109
NO PAINT REQ.; NO PAINT REQ.,RADIATOR GRILLE-MOLDING; NO PAINT REQ.,REAR BUMPER-WITH(*RUPD(PAINTED)); NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17, ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&REAR BUMPER-WITH(*RUPD(PAINTED)); NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17, STEEL&FRONT BUMPER-PAINTED & WITH(WIDEFENDER)&REAR BUMPER-WITH(*RUPD(PAINTED))
main75770-0K500iGUN125,126,135,TGN126,136..AD..L..LA; GUN125,135..AD..L..LA; GUN126..AD..L..BZAG;GUN125,126,13#,TGN126,13#..AD..S202011-202110
NO PAINT REQ.; NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17, ALUMINUM&REAR BUMPER-STEP TYPE(PLATED); NO PAINT REQ.,TIRE & DISC WHEEL-265/65R17, STEEL&REAR BUMPER-STEP TYPE(PLATED)
PLATED
main75770-YP030iGGN125,GUN126..GCC;GUN125..6F..H..GCC; GUN136..6FC..H..ARL;GUN126,135..6FC..H..TH;GUN126..TD..H..ARL..CBU202006-202108
NO PAINT REQ.,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM; NO PAINT REQ.,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)
NO PAINT REQ.,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
75777EPAD, HOOD FRONT MOULDING
main53393-0K010iGUN135..AS;GUN135..AD..L..LA;GUN125,126,TGN136..AS..BZAG;GUN125,126,TGN126,136..(AD,AS)..L..LA202006-202110
main53393-0K020iGUN135..SS..L;GUN125..L..GHA;TGN136..LHD..SA;GUN135..(KS,SD)..6F;GUN125..SD..6F..(L,S);GUN125,126..(KD,KS,SS)..(L,S);GUN122,LAN125,TGN120,121,126..SA202009-202111
main53393-0K040iGUN126..LHD..S..GEN;GGN125,GUN126,13#..H;GUN125,TGN126..TD..(H,S)..(GCC,IDN);GUN125,TGN126..(TD,TX)..MTM..H..(GEN,LA)202006-202008
main53393-0K041supersedes 53393-0K010iGUN125..AD..S..LA;GUN125,TGN136..AD..BZAG;GUN126,135..AD..L..BZAG;GGN125,GUN126,13#,TGN126,128,13#..AD..(H,S)202009-202110
main53393-0K051iGUN125..SX;GUN125..H..SA;GUN126..SS..H;GUN125..S..GHA;GUN135..(SS,SX)..S;GUN125,135..SD..6FC;GUN126..GD,KD,SD,SX;GGN125,GUN136,TGN136..RHD..SA202009-202111
75851AMOULDING, ROCKER PANEL, FRONT RH
main75851-0K010iGUN125..PH;TGN126..TD..L..LA;GUN125..RHD..S..GEN;GUN135..6F..ARL..CBU;GUN126..TD..6F..S..LA;TGN126..TD..S..(GEN,LA);GUN126..RHD..6F..S..GEN;GUN126,TGN136..TD..(5F,6FC)..(L,S)..LA;GUN120,122,TGN120,121..TD..(GCC,GEN,PH,TH);GUN125,126..RHD..(PD,TD)..6F..L..(GEN,IDN,PKN)202006-202201
main75851-0K020iTGN126..TS..LA;TGN121..(PS,TS)..(GCC,GEN,PKN,TH);GUN125,126..(PS,TS)..(IDN,PKN,TH);GUN112,120,122,123,13#,TGN11#,120..PS,TS202006-202201
STEP & STEP COVER-WITHOUT
main75851-0K060iGUN126..LHD..SA;GUN125..LHD..SD..S;GUN125..(GD,KD,SD)..(H,L);GUN122,126,13#,LAN125,TGN121,126,136..SD..(L,S)202009-202111
main75851-0K070iGUN126,TGN126,136..AD..(L,S)..LA; GUN126..AD..6FC..H..LA;GUN125,13#,TGN138..AD..(L,S);GUN126,TGN136..AD..(L,S)..BZAG202011-202110
STEP & STEP COVER-WITHOUT
main75851-0K080iGUN125..(KS,SS)..L;GUN125..LHD..SS..S;GUN122,126,135,LAN125,TGN120,121,136..(KS,SS)..(L,S)202009-202111
STEP & STEP COVER-WITHOUT
75852AMOULDING, ROCKER PANEL, FRONT LH
main75852-0K010iGUN125..PH;TGN126..TD..L..LA;GUN125..RHD..S..GEN;GUN135..6F..ARL..CBU;GUN126..TD..6F..S..LA;TGN126..TD..S..(GEN,LA);GUN126..RHD..6F..S..GEN;GUN126,TGN136..TD..(5F,6FC)..(L,S)..LA;GUN120,122,TGN120,121..TD..(GCC,GEN,PH,TH);GUN125,126..RHD..(PD,TD)..6F..L..(GEN,IDN,PKN)202006-202201
main75852-0K020iTGN126..TS..LA;TGN121..(PS,TS)..(GCC,GEN,PKN,TH);GUN125,126..(PS,TS)..(IDN,PKN,TH);GUN112,120,122,123,13#,TGN11#,120..PS,TS202006-202201
STEP & STEP COVER-WITHOUT
main75852-0K060iGUN126..LHD..SA;GUN125..LHD..SD..S;GUN125..(GD,KD,SD)..(H,L);GUN122,126,13#,LAN125,TGN121,126,136..SD..(L,S)202009-202111
main75852-0K070iGUN126,TGN126,136..AD..(L,S)..LA; GUN126..AD..6FC..H..LA;GUN125,13#,TGN138..AD..(L,S);GUN126,TGN136..AD..(L,S)..BZAG202011-202110
STEP & STEP COVER-WITHOUT
main75852-0K080iGUN125..(KS,SS)..L;GUN125..LHD..SS..S;GUN122,126,135,LAN125,TGN120,121,136..(KS,SS)..(L,S)202009-202111
STEP & STEP COVER-WITHOUT
75866ARETAINER, ROCKER PANEL MOULDING
main76923-52021×2iGUN126..AS;GUN135..AS..LA;GUN126,TGN126,136..(AD,AS)..(L,S)..LA; TGN126..S..GCC;GUN126..6F..GCC;GUN135..AS..BZAG;GUN126..TD..6F..L;GUN136..(AD,TX)..S;GUN125..LHD..TD..GEN;GUN125..6FC..(GCC,LA);GUN125..RHD..6F..S..SA;GUN126..6F..S..ARL..CBU;TGN126..(H,L)..(GCC,GEN);GUN125..RHD..6FC..(ARL,SA);GUN135..6FC..(ARL,BZAG,LA);GUN125..TD..6F..(ARL,GCC,LA);GUN126..6FC..H..(GCC,LA,TWN);GUN126..RHD..TD..6FC..S..CBU;TGN121,13#..(L,S)..(ARL,BZAG);GUN126..RHD..(SD,SS,TD)..H..(ARL,SA);GUN126..(AD,TS,TX)..(L,S)..(ARL,BZAG);GUN135..(AD,TD)..6F..(L,S)..(BZAG,LA,PH);GGN125,GUN136..(SD,SS,TD)..H..(ARL,GCC,SA);GUN125..(AD,AS,TS)..6F..(L,S)..(ARL,BZAG,GCC,GEN,LA)202006-202110
STEP & STEP COVER-WITHOUT
76924GRETAINER, ROCKER PANEL MOULDING
main76924-0K010×16iGUN125..PH;TGN126..TD..L..LA;GUN125..TX..S..GEN;GUN125..RHD..S..GEN;GUN135..6F..ARL..CBU;GUN126..TD..6F..S..LA;TGN126..TD..S..(GEN,LA);GUN126..RHD..6F..S..GEN;GUN126,TGN136..TD..(5F,6FC)..(L,S)..LA;GUN125,126..RHD..(PD,TD)..6F..L..(GEN,IDN,PKN);GUN120,122,TGN120,121..(TD,TX)..(GCC,GEN,PH,TH); TGN126..TS..LA;TGN121..(PS,TS)..(GCC,GEN,PKN,TH);GUN125,126..(PS,TS)..(IDN,PKN,TH);GUN112,120,122,123,13#,TGN11#,120..PS,TS202006-202201
main76924-0K020×16iGUN125..(KS,SS)..L;GUN125..LHD..SS..S;GUN122,126,135,LAN125,TGN120,121,136..(KS,SS)..(L,S); GUN126..LHD..SA;GUN125..LHD..(SD,SX)..S;GUN125..(GD,KD,SD,SX)..(H,L);GUN122,126,13#,LAN125,TGN121,126,136..(SD,SX)..(L,S)202009-202111
90159T0009
main90159-T0009
9046707215
main90467-07215
9046708225
main90467-08225
90467T0050
main90467-T0050
15 parts on this diagram · 5 diagrams in section
