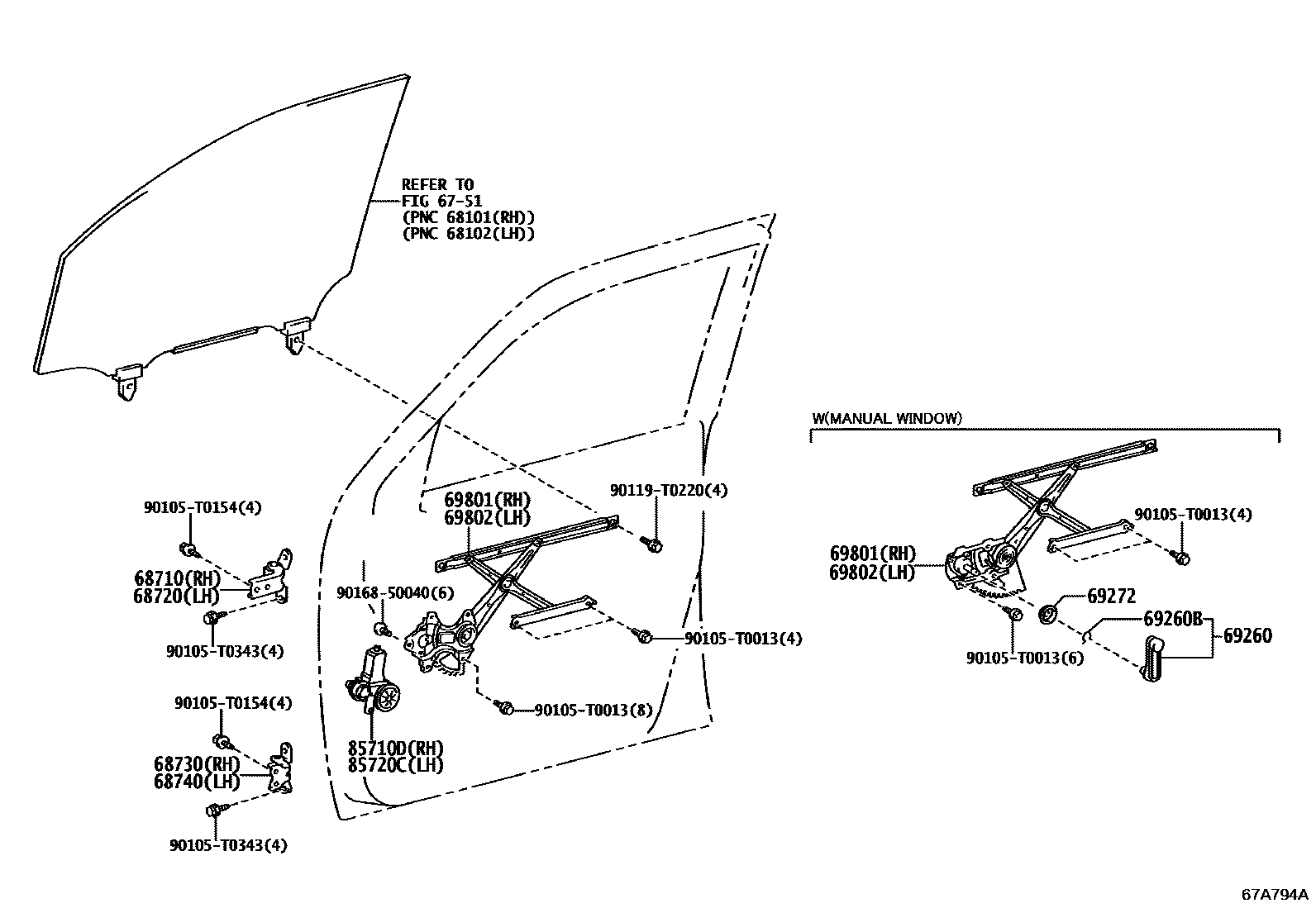

FRONT DOOR WINDOW REGULATOR & HINGE
6751FRONT DOOR PANEL & GLASS
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
main69260-0K010-C0×2iGUN125..TD..6F..L..(GEN,LA,PH);GUN125..TS..6F..L..(GEN,IDN,LA);GUN135,TGN126,136..(TD,TS)..L..LA;GUN112,122,126,TGN110,121..(PD,PS,TD,TS)..MTM..L..(GEN,IDN,LA,PH,PKN)202006-202201
BLACK,TRIM2#
main69260-0K040-C0×2iGUN125..KS;GUN125..(SD,SS)..L;GUN135..L..(KEN,SA);GUN122,LAN125,TGN121,126..LHD..L..SA; GUN135..SD..S;GUN125..(GD,SX)..L;GUN125..RHD..6F..S..SA;GUN122,126,136,TGN120..RHD..(L,S)..SA202009-202111
BLACK,TRIM2#; POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT,BLACK,TRIM2#
BLACK,TRIM2#
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
main90080-52152iGUN122,125,126,135,LAN125,TGN121,126,136..(AD,SD)..L; GUN125,126,135,TGN126,136..AS202009-202110
main90520-01274iGUN112,122,125,126,135,TGN110,120,121,126..(PS,TS)..MTM..L..(GCC,GEN,IDN,LA,PH,PKN); GUN135..TD..L..LA;GUN125,TGN126,136..TD..(5F,6FC)..L..(GCC,LA);GUN122,125,126,TGN120,121..(PD,TD)..MTM..L..(GCC,GEN,LA,PH,PKN)202006-202201
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
main69268-04020×2iGUN125..TS..6F..L..CBU;GUN135..(TD,TS)..L..LA;GUN125..TD..6F..L..(GCC,GEN,LA,PH);GUN125,TGN126,136..(TD,TS)..(5F,6FC)..L..(GCC,LA);GUN112,122,126,TGN110,120,121..(PD,PS,TD,TS)..MTM..L..(GCC,GEN,IDN,LA,PH,PKN)202006-202201
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
main69801-0D351iGUN126..TD..6FC..L;GUN126..TD..(H,S)..LA;GUN125..(TD,TX)..(IDN,TH,VN);GUN112,122,136,TGN121..(TD,TS,TX)..(LA,TH);GGN125,GUN120,123,126,135,TGN111..GCC,PH,TH,TWN,VN;GUN112,122,125,135,TGN121,126..(TD,TS)..(H,S)..(GCC,LA)202012-202301
main69801-0K140iGUN126..TD..6F..L;GUN112,122,125,135,TGN110,120,121,126,136..(TD,TS)..L..(GCC,LA); GUN126..TD..6FC..L;GUN126..TD..(H,S)..LA;GUN125..(TD,TX)..(IDN,TH,VN);GUN112,122,136,TGN121..(TD,TS,TX)..(LA,TH);GGN125,GUN120,123,126,135,TGN111..GCC,PH,TH,TWN,VN;GUN112,122,125,135,TGN121,126..(TD,TS)..(H,S)..(GCC,LA)202006-202012
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69801-0K150iGUN125..GD,KD,SX;GUN122,TGN120..RHD..SA;GUN125..(SD,SS)..(H,S);GGN125,GUN126,13#,LAN125,TGN126,136..(H,S)..(GHA,KEN,SA)202009-202111
main69801-0K160iGGN125,GUN125,126,13#,TGN126,128,13#..AD..(H,S); GUN126..AD..L..LA;GUN125,135,TGN126,136..(AD,AS)..L; GUN126..L..BZAG202011-202110
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH
main69810-0K240iGUN125..TS..6F..L..CBU;GUN135..(TD,TS)..L..LA;GUN125..TD..6F..L..(GCC,GEN,LA,PH);GUN125,TGN126,136..(TD,TS)..(5F,6FC)..L..(GCC,LA);GUN112,122,126,TGN110,120,121..(PD,PS,TD,TS)..MTM..L..(GCC,GEN,IDN,LA,PH,PKN)202006-202201
main69810-0K270iGUN125..KS;GUN125..(SD,SS)..L;GUN135..L..(KEN,SA);GUN122,LAN125,TGN121,126..LHD..L..SA; GUN135..SD..S;GUN125..(GD,SX)..L;GUN125..RHD..6F..S..SA;GUN122,126,136,TGN120..RHD..(L,S)..SA202009-202111
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
main69802-0D331iGUN126..TD..6FC..L;GUN126..TD..(H,S)..LA;GUN125..(TD,TX)..(IDN,TH,VN);GUN112,122,136,TGN121..(TD,TS,TX)..(LA,TH);GGN125,GUN120,123,126,135,TGN111..GCC,PH,TH,TWN,VN;GUN112,122,125,135,TGN121,126..(TD,TS)..(H,S)..(GCC,LA)202012-202301
main69802-0K140iGUN126..TD..6F..L;GUN112,122,125,135,TGN110,120,121,126,136..(TD,TS)..L..(GCC,LA); GUN126..TD..6FC..L;GUN126..TD..(H,S)..LA;GUN125..(TD,TX)..(IDN,TH,VN);GUN112,122,136,TGN121..(TD,TS,TX)..(LA,TH);GGN125,GUN120,123,126,135,TGN111..GCC,PH,TH,TWN,VN;GUN112,122,125,135,TGN121,126..(TD,TS)..(H,S)..(GCC,LA)202006-202012
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69802-0K150iGUN125..GD,KD,SX;GUN122,TGN120..RHD..SA;GUN125..(SD,SS)..(H,S);GGN125,GUN126,13#,LAN125,TGN126,136..(H,S)..(GHA,KEN,SA)202009-202111
main69802-0K160iGGN125,GUN125,126,13#,TGN126,128,13#..AD..(H,S); GUN126..AD..L..LA;GUN125,135,TGN126,136..(AD,AS)..L; GUN126..L..BZAG202011-202110
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH
main69820-0K260iGUN125..TS..6F..L..CBU;GUN135..(TD,TS)..L..LA;GUN125..TD..6F..L..(GCC,GEN,LA,PH);GUN125,TGN126,136..(TD,TS)..(5F,6FC)..L..(GCC,LA);GUN112,122,126,TGN110,120,121..(PD,PS,TD,TS)..MTM..L..(GCC,GEN,IDN,LA,PH,PKN)202006-202201
main69820-0K290iGUN125..KS;GUN125..(SD,SS)..L;GUN135..L..(KEN,SA);GUN122,LAN125,TGN121,126..LHD..L..SA; GUN135..SD..S;GUN125..(GD,SX)..L;GUN125..RHD..6F..S..SA;GUN122,126,136,TGN120..RHD..(L,S)..SA202009-202111
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH
main85710-0D570iGUN126..TD..6FC..L;GUN135..LHD..TD..S;GUN125,135..TD..L..(IDN,VN);GUN126..TD..(H,S)..(GCC,LA);GGN125,GUN112,122,125,136,TGN111,121,126..(TD,TS)..(H,S)..(GCC,LA,VN)202012-202110
main85710-0K180iGUN126..TD..6F..L;GUN112,122,125,135,TGN110,120,121,126,136..(TD,TS)..L..(GCC,LA); GUN126..TD..6FC..L;GUN135..LHD..TD..S;GUN125,135..TD..L..(IDN,VN);GUN126..TD..(H,S)..(GCC,LA);GGN125,GUN112,122,125,136,TGN111,121,126..(TD,TS)..(H,S)..(GCC,LA,VN); GUN126..VN202006-202012
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main85710-0K190iGGN125,GUN122,125,126,TGN121,126..H..GCC; GUN126,136..TD..H..LA;TGN126..TD..(H,S)..LA; GUN135..H..PH;GUN126..PH,TH,TWN,VN;GUN125..(H,S)..(IDN,TH);GUN112,120,122,123,135,TGN121..TH; TGN121..5F..H;TGN126..H..GCC202006-202012
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON); WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK); WIRELESS DOOR LOCK-WITH(*SES)
main85710-0K280iTGN128,138..H;GUN126,136..AD..H..LA;GUN125,TGN126,136..AD..(5F,6FC)..(H,S); TGN138..S;GGN125..AD;GUN125,126,13#..(H,S)..BZAG202011-202110
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main85710-0K290iGUN126..AD..L..LA;GUN125,135,TGN126,136..(AD,AS)..L; GUN126..L..BZAG; TGN128,138..H;GUN125,126,13#,TGN126,136..AD..(H,S)..LA; TGN138..S;GUN125,126,13#..(H,S)..BZAG202011-202110
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH
main85720-0D570iGUN126..TD..6FC..L;GUN112,122,TGN121..TH;GUN125..(TD,TX)..(IDN,TH);GUN112,122,125,TGN121,126..S..GCC;GUN120,123,126,135,TGN111..(L,S)..(GCC,TH)202012-202201
main85720-0K170iGUN135..L..VN;GUN125,135,TGN126..TD..S..(LA,PH,VN);GUN126..(TD,TX)..(H,S)..(GCC,LA,PH,TH,TWN,VN);GGN125,GUN122,125,13#,TGN121,126..(TD,TX)..H..(GCC,LA,PH,TH)202012-202301
main85720-0K180iGUN126..TD..6F..L;GUN112,122,125,135,TGN110,120,121,126,136..(TD,TS)..L..(GCC,LA); GUN126..TD..6FC..L;GUN112,122,TGN121..TH;GUN125..(TD,TX)..(IDN,TH);GUN112,122,125,TGN121,126..S..GCC;GUN120,123,126,135,TGN111..(L,S)..(GCC,TH); GUN135..L..VN202006-202012
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH; POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main85720-0K190iGUN135..L..VN;GUN125,135,TGN126..TD..S..(LA,PH,VN);GUN126..(TD,TX)..(H,S)..(GCC,LA,PH,TH,TWN,VN);GGN125,GUN122,125,13#,TGN121,126..(TD,TX)..H..(GCC,LA,PH,TH)202006-202012
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH; POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH
90105T0013
main90105-T0013
90105T0154
main90105-T0154
90105T0343
main90105-T0343
90119T0220
main90119-T0220
9016850040
main90168-50040
17 parts on this diagram · 1 diagram in section
