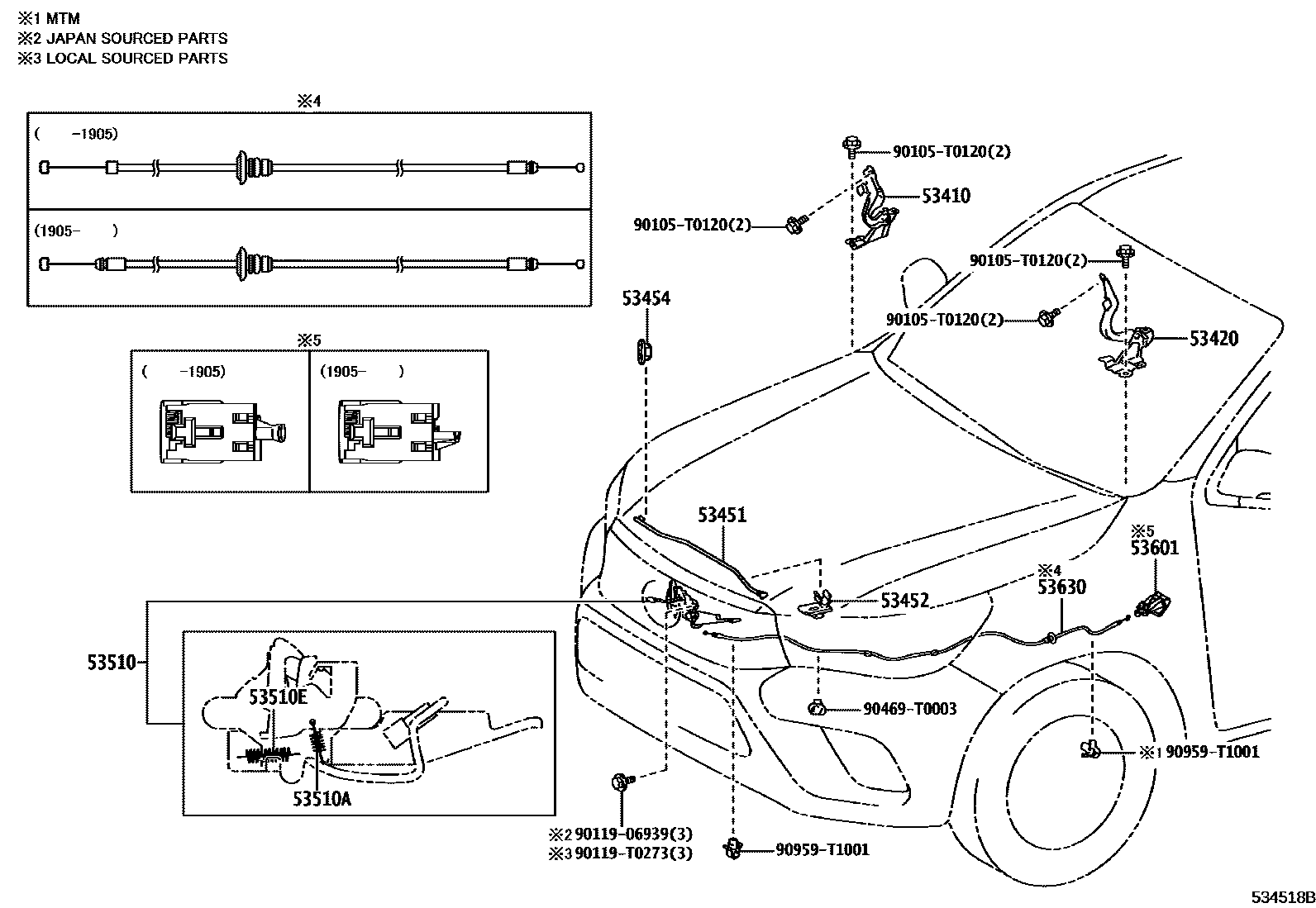

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
main53410-0K240iGGN125,KUN125,126,13#..(ADC,ASC)..LA;GUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010
main53410-0K370iGGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,121,126,136..MDC,MSC,PDC,PSC,TDC,TSC,TXT201505-202105
53420HINGE ASSY, HOOD, LH
main53420-0K370iGGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,121,126,136..MDC,MSC,PDC,PSC,TDC,TSC,TXT201505-202105
53451ROD, HOOD SUPPORT
main53440-0K010iGGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,121,126,136..TDC,TSC,TXT201505-202005
53452HOLDER, HOOD STAY
53454CLIP, HOOD SUPPORT ROD
main53454-0D010iGGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,121,126,136..TDC,TSC,TXT201604-202005
53510LOCK ASSY, HOOD
main53510-0K380supersedes 53510-0K680iGGN125,GUN112,122,125,126,KUN112,122,125,TGN11#,120,121,126..GCC201505-202005
main53510-0K650iGUN126..RHD..6F..M..GEN;GUN126..RHD..6FC..(H,M)..GEN;GUN125,KUN126..(MDC,PDC)..(L,X);GUN122,135,TGN121..RHD..(L,X)..(ARL,GEN,PKN,TH);GUN125,KUN12#..RHD..(MSC,PSC,TDC,TSC,TXT)..(ARL,GEN,IDN,MA,PKN);GGN12#,GUN112,120,123,126,136,KUN112,136,TGN110,126..RHD..(L,S,X)..(ARL,GEN,IDN,PKN,TH)201505-202105
main53510-0K660iGUN135..6F..MA;GUN135..6FC..(MA,TH);GUN135..6F..(M,S)..TH;GUN126..RHD..6F..H..GEN;GGN125,GUN126,136..(H,M)..(ARL,MA,PKN,TH);GUN122,125,KUN126,TGN121,136..(H,M,S)..(MA,PKN,TH)201505-202105
main53510-0K670iGUN125..LHD..TDC..S..GEN; GUN126..LHD..GEN;GUN135..6FC..S..VN;GUN135..TDC..S..(LA,PH);GUN125..TDC..S..(LA,PH,VN);GUN125..LHD..(TSC,TXT)..(GEN,LA);GUN125..LHD..TDC..(L,M,X)..(GEN,LA);GUN126,TGN126..(TDC,TSC)..(S,X)..LA;KUN126..LHD..TDC..(H,S,X)..(GEN,LA);GUN135,TGN136..LHD..(TDC,TSC)..(H,L,X);KUN126,TGN126..LHD..(5F,5FC,6F)..(L,M)..GEN;GUN122,KUN122,125,135,TGN121..LHD..(TDC,TSC,TXT)..(GEN,LA,PH)201505-202005
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
main53510-0K680iGUN125..TXT..GEN;KUN126..LHD..H..GEN;KUN126..LHD..5FC..M..GEN;GUN125,TGN126..TDC..S..LA;GUN135..TDC..(H,S)..(GEN,LA);GUN125,KUN125..LHD..TDC..M..GEN;GUN122,126..LHD..(5F,6FC)..(H,M)..GEN;GUN126,KUN125,135..LHD..(TDC,TXT)..6F..(H,S)..(GEN,LA); GUN126,KUN126..LHD..M..GEN; TGN136..TDC..(M,S)..LA;GUN125..LHD..TDC..S..GEN;GUN135,KUN135..6F..S..VN;GUN125,126,13#,KUN126,136,TGN126..TDC..(H,M)..(LA,PH,TAIW,VN)201505-202005
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN); ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)
main53510-0K700supersedes 53510-0K690iGUN125..SXT..X;GUN135..RHD..SDC..X; GUN136..S..SA;GUN135..6FC..SA201810-202102
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)
main53510-0K720supersedes 53510-0K710iGUN122,125,135,KUN122,125,LAN125,TGN121,126..LHD..X..SA; GUN125,126,KUN125,126,LAN125,TGN126..LHD..(M,S)..SA201601-202009
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SIREN)
main53510-0K730iGUN125..ADC..S..LA;GUN126,135..(L,X)..BZAGT;GUN125,TGN13#..(ADC,ASC)..(L,X);GUN126,135,KUN125,126,135,TGN126..(ADC,ASC)..(S,X)..LA201511-202010
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=1.2,CW=8.5
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
main53601-0D040-C0iGUN122..TXT..GEN;TGN126..5F..(GEN,LA);GUN125..TDC..S..(LA,PH);GUN126..RHD..6F..H..GEN;GUN125..LHD..(L,X)..GEN;GUN125..TDC..6FC..L..GEN;GUN126..(PDC,TSC)..(L,X);GUN122..TDC..(L,S,X)..(GEN,PH);GUN125..TDC..(L,X)..(ARL,IDN,LA);GUN135..(L,S,X)..(ARL,BZAGT,GEN,LA,PH);GUN123,TGN121,136..ARL,BZAGT,GEN,LA,TH;GUN125..(ADC,ASC,MDC,MSC,TSC,TXT)..(ARL,BZAGT,GEN,IDN,LA,MA);GUN126,136..(ADC,ASC,MDC,PSC,TDC,TSC,TXT)..(ARL,BZAGT,LA,MA,PKN,TAIW);GGN125,GUN112,120,122,KUN122,TGN110,128,138..(ADC,PSC,TSC)..(BZAGT,GEN,IDN,LA,PH,PKN,TH); GUN126..H..PKN; GUN135..TH,VN;GUN126..M..PKN;GUN126..6FC..GEN;GUN126..6F..(M,S)..GEN;GUN126..LHD..6F..H..GEN;GUN125..RHD..TDC..6F..L..GEN;GUN125..RHD..(TDC,TXT)..(H,M,S);GUN125..LHD..TDC..(M,S)..(GEN,VN);GUN122,135,TGN126..TDC..(H,M)..(GEN,PH);GUN120,122,126,136..(TDC,TXT)..(6F,6FC)..(PH,TH,VN)201905-202105
BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#
main53601-0K080-C0iGUN122..(TDC,TSC)..X;KUN122..(TSC,TXT)..M;KUN122..(H,L,S,X)..GEN;GUN125..LHD..(L,X)..GEN;GUN126..RHD..6F..H..GEN;KUN125..TXT..(L,M)..GEN;GUN125,126..S..(BZAGT,LA,PH);KUN125,126..TDC..L..(GEN,IDN);GUN125..LHD..(TSC,TXT)..(M,X);GUN122,136..(L,M,S)..(ARL,GEN,PH);GUN120,136,TGN138..(ADC,TSC)..(L,S,X);KUN126..(ADC,PDC,TDC)..(L,S,X)..(LA,PKN);GUN126..(ASC,MDC,TDC,TSC,TXT)..(ARL,BZAGT,MA);GUN125,136..(ADC,TDC)..6FC..(L,M)..(BZAGT,GEN);GUN125..(ADC,ASC,TDC)..(L,X)..(ARL,BZAGT,IDN,LA);GUN125,KUN125..RHD..(MDC,TSC,TXT)..(ARL,GEN,IDN,MA);GUN135,TGN126,136..(L,S,X)..(ARL,BZAGT,GEN,LA,MA,PH);GUN126,TGN121..(ADC,PDC,TDC,TSC)..(L,X)..(ARL,BZAGT,GEN,LA,PKN,TH);GGN12#,GUN112,123,KUN112,125,135,TGN110..(DCR,HTWC)..(ARL,IDN,LA,TH); GUN136..H..BZAGT;GUN126..6F..(M,S)..GEN;GUN126..LHD..6F..H..GEN;GUN126..6FC..(H,M,S)..GEN;GUN125..RHD..TDC..6F..L..GEN;GUN136,KUN126..(H,M)..(LA,TH);GUN125..LHD..TDC..(M,S)..(GEN,VN);GUN135,TGN121..(TDC,TXT)..(TH,VN);GUN125,TGN136..RHD..(TDC,TXT)..(H,M,S);GUN135,TGN126..(H,M)..(BZAGT,GEN,LA,PH);GUN126,TGN13#..(H,M)..(BZAGT,LA,PH,PKN,TH,VN);GUN136,KUN122..(ADC,TDC)..MTM..M..(BZAGT,GEN);GUN122,KUN136..(ADC,TDC,TXT)..DCR..(GEN,LA,TH);KUN125,126..(PDC,TDC)..(H,M,S)..(GEN,IDN,PKN,VN);GUN120,KUN135,TGN128..(ADC,TDC,TXT)..(BZAGT,GEN,TH,VN); KUN125..TXT..S;TGN121,126..GCC..CBU;GUN125..(MSC,TDC)..(GCC,MA);GUN125..LHD..(TSC,TXT)..(L,S);GGN125,GUN112,122,126,KUN112,12#,TGN11#,120..(PSC,TDC,TSC)..(GCC,PKN)201505-201905
BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#
53630CABLE ASSY, HOOD LOCK CONTROL
main53630-0K160iGUN135..SSC..X;GUN136..S..ARL;GUN135..6F..S..SA;GUN136..RHD..(H,M);GUN135..RHD..(MDC,TDC,TXT);TGN136..RHD..(SDC,TDC,TXT);GUN125..RHD..(MDC,MSC,SDC,SSC,TDC,TSC,TXT);GGN12#,135,GUN112,120,122,123,126,KUN112,12#,13#,TGN110,120,121,126..RHD201505-201905
main53630-0K190iTGN121..GEN..IV3;TGN121,126..LHD..CBU;GUN126,13#,KUN126,135..LHD;GGN125,GUN112,122,125,KUN112,122,125,136,LAN125,TGN11#,120,128,13#..LHD..(L,M,S,X)201505-201905
90105T0120
main90105-T0120
9011906939
main90119-06939
90119T0273
main90119-T0273
90469T0003
main90469-T0003
90959T1001
main90959-T1001
15 parts on this diagram · 2 diagrams in section
