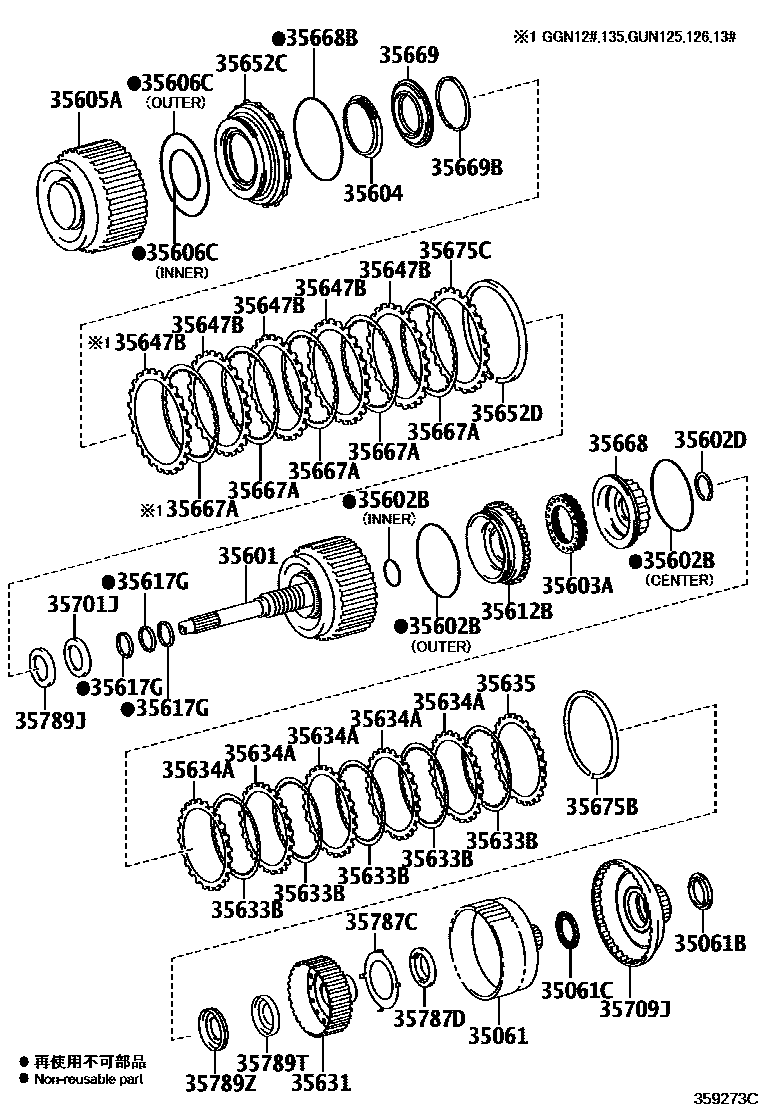

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35061HUB SUB-ASSY, FORWARD CLUTCH
35061BRACE, THRUST BEARING(FOR FORWARD CLUTCH HOB)
35061CBEARING, THRUST NEEDLE ROLLER(FOR FORWARD CLUTCH HUB)
35601DRUM SUB-ASSY, CLUTCH
(L)
(L)
(J)
(J)
35602BRING, O (FOR FORWARD CLUTCH PISTON)
(J),INNER
INNER
(J),CENTER
main90301-99145iTGN126..LHD..TDC..6FC;GUN125..(TDC,TXT)..6FC..IV3;GUN125..(TDC,TSC)..6FC..CBU;GUN126..(TDC,TSC,TXT)..6FC..(H,M,S,X);GUN120,13#,TGN121..(TDC,TSC,TXT)..6FC201505-201812
OUTER
(L),OUTER
(L),INNER
(L),CENTER
35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
(L)
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
(L)
(J)
35605ADRUM SUB-ASSY, DIRECT CLUTCH
(L)
35606CRING, O (FOR DIRECT CLUTCH PISTON)
INNER
OUTER
main90301-99205iGUN125,126,136..(ADC,PDC,SDC,SSC,SXT)..6FC;GGN12#,135,GUN135,TGN126,128,138..6FC..(H,L,M,S)..(ARL,BZAGT,LA,MA,SA)201505-202105
OUTER
(L),INNER
(L),OUTER
35612BPISTON, FORWARD CLUTCH
(L)
35617GRING, CLUTCH DRUM OIL SEAL
main35617-71010×3iGGN12#,135,GUN120,125,126,13#,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC201505-202105
35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
(L)
main35631-71010iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201708-202012
(J)
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
main35633-71010×5iGGN12#,135,GUN120,125,126,13#,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC201505-202105
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
T=1.8
T=3.0
35635FLANGE, FORWARD CLUTCH
T=3.0,MARK 0
T=3.1,MARK 1
T=3.2,MARK 2
T=3.3,MARK 3
T=3.4,MARK 4
T=3.5,MARK 5
T=3.6,MARK 6
T=3.7,MARK 7
T=3.8,MARK 8
T=3.9,MARK 9
T=4.0,MARK A
T=3.0
main35635-71020iGGN12#,135,GUN120,125,126,13#,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC201505-202105
T=3.1
T=3.2
main35635-71040iGGN12#,135,GUN120,125,126,13#,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC201505-202105
T=3.3
T=3.4
main35635-71060iGGN12#,135,GUN120,125,126,13#,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC201505-202105
T=3.5
T=3.6
main35635-71080iGGN12#,135,GUN120,125,126,13#,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC201505-202105
T=3.7
main35635-71090iGGN12#,135,GUN120,125,126,13#,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC201505-202105
T=3.8
main35635-71100iGGN12#,135,GUN120,125,126,13#,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC201505-202105
T=3.9
T=4.0
main35635-71120iGGN12#,135,GUN120,125,126,13#,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC201505-202105
T=4.1
main35635-71130iGGN12#,135,GUN120,125,126,13#,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC201505-202105
T=4.2
35647BPLATE, CLUTCH, NO.2
35652CPISTON, DIRECT CLUTCH
(L)
(L)
main35652-71010iGUN125,126,136..(ADC,PDC,SDC,SSC,SXT)..6FC;GGN12#,135,GUN135..6FC..(H,L,M,S)..(ARL,BZAGT,LA,MA,SA)201505-202105
(J)
35652DRING, SNAP (FOR DIRECT CLUTCH PISTON)
(J)
(L)
35667ADISK, DIRECT CLUTCH
main35667-71010×5iGGN12#,135,GUN120,125,126,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC201505-202105
35668BALANCER, CLUTCH, NO.1
(L)
35668BRING, O(FOR CLUTCH BALANCER)
(J)
(L)
35669BALANCER, CLUTCH, NO.2
(L)
(J)
35669BRING, SNAP (FOR CLUTCH BALANCER)
(L)
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
(J)
(L)
35675CFLANGE, DIRECT CLUTCH
T=3.0
main35675-71020iGGN12#,135,GUN120,125,126,13#,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC201505-202105
T=3.1
main35675-71030iGGN12#,135,GUN120,125,126,13#,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC201505-202105
T=3.2
T=3.3
main35675-71050iGGN12#,135,GUN120,125,126,13#,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC201505-202105
T=3.4
main35675-71060iGGN12#,135,GUN120,125,126,13#,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC201505-202105
T=3.5
main35675-71070iGGN12#,135,GUN120,125,126,13#,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC201505-202105
T=3.6
T=3.7
main35675-71090iGGN12#,135,GUN120,125,126,13#,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC201505-202105
T=3.8
35701SHAFT SUB-ASSY, INPUT
35701JBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)
main90374-34015iGGN12#,135,GUN120,125,126,13#,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC201505-202105
35709JDRUM SUB-ASSY, SUN GEAR INPUT
35787CRACE, THRUST BEARING, NO.2
35787DBEARING, THRUST NEEDLE ROLLER
35789JRACE, THRUST BEARING (FOR INPUT SHAFT FRONT)
35789TRACE, THRUST BEARING (INPUT SHAFT REAR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35789ZBEARING, THRUST NEEDLE ROLLER
main90374-21004iGGN12#,135,GUN120,125,126,13#,KUN125,126,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..ATM201505-202105
34 parts on this diagram · 2 diagrams in section
