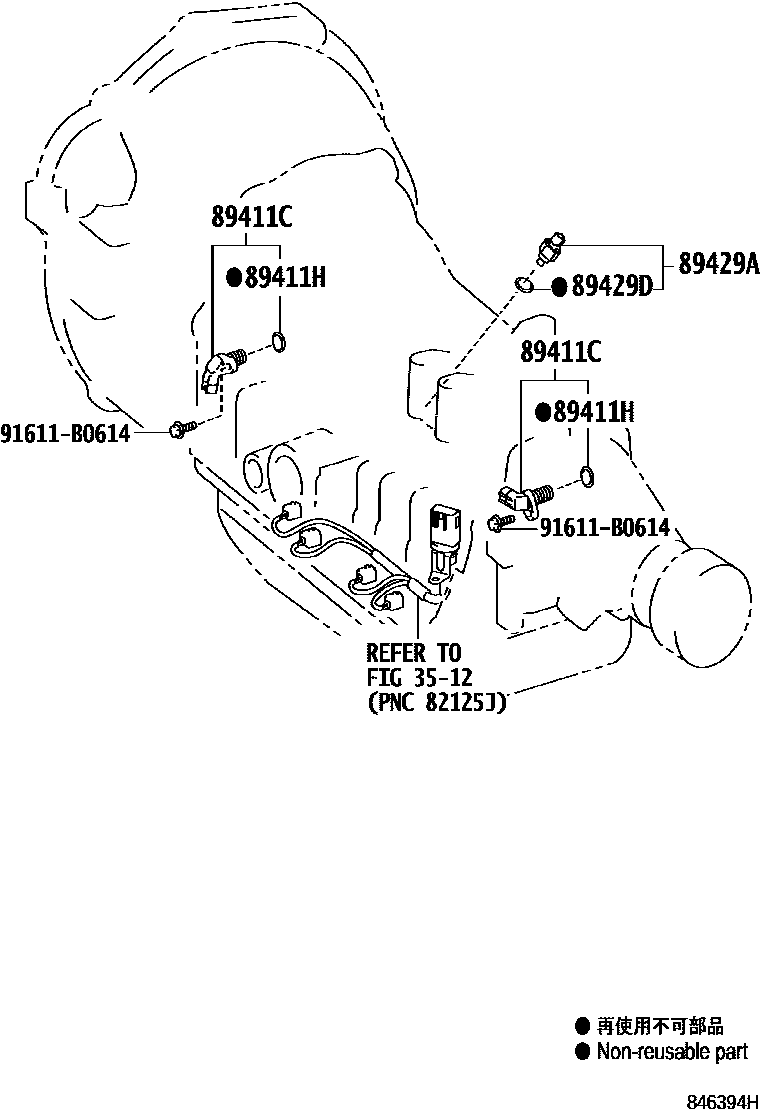

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

89411CSENSOR, SPEED

main89411-50010×2iKUN16,2#,36,TGN16,26,36..4FC200808-201204

89411HRING, O

main90301-11008×2iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

89429ASENSOR, TEMPERATURE

main89429-34010iKUN16,2#..4FC200408-200810

main89429-35090iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH)200501-200812

89429DRING, O(FOR TEMPERATURE SENSOR)

main90301-11006iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

91611B0614

main91611-B0614

6 parts on this diagram · 3 diagrams in section
