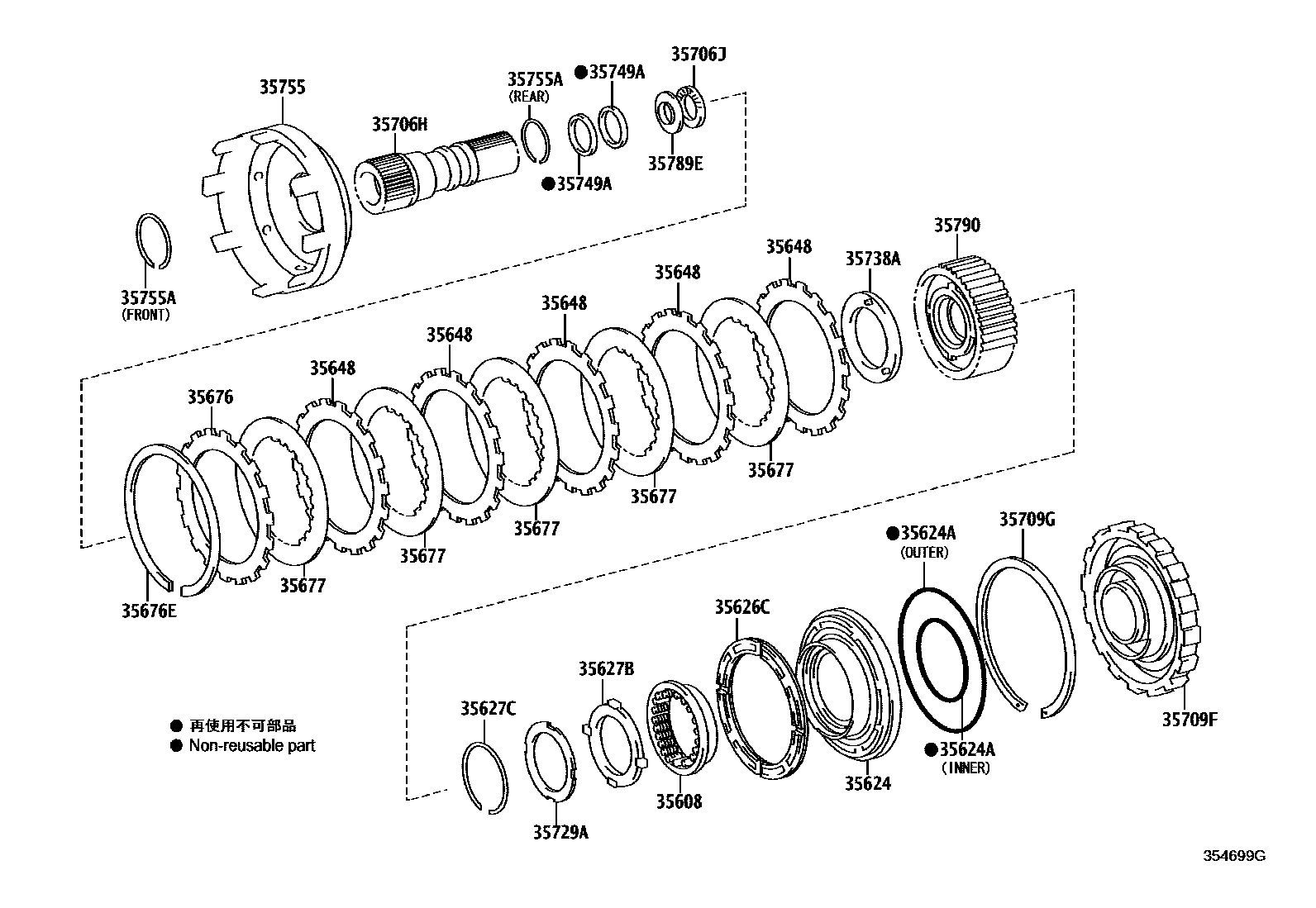

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1A340E,A340F,A343E,A343F 0002 1A750E,A750F

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-30010iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35624PISTON, 2ND BRAKE

main35624-30010iKUN16,2#,36,TGN16,26,36..4FC200808

main35624-60010iGGN15,35..5FC;GGN25..5FC..CBU200808

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-85001iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

INNER

main90301-99038iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

OUTER

main90301-99095iGGN15,35..5FC;GGN25..5FC..CBU200808

INNER

main90301-99115iGGN15,35..5FC;GGN25..5FC..CBU200808

OUTER

35626CSLEEVE, 2ND BRAKE PISTON

main35626-30030iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35627BSEAT, 2ND BRAKE PISTON RETURN SPRING

main35627-30010iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35627CRING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEAT)

main90520-54001iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35647-30020×4iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=2.5

main35647-30030iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=1.8

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-30020iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

T=3.0

35676ERING, HOLE SNAP (FOR 2ND BRAKE)

main90521-99032iKUN16,2#,36,TGN16,26,36..4FC200808

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35667-30080×5iKUN16,2#,36,TGN16,26,36..4FC200808

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-30061iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-27009iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35709FDRUM SUB-ASSY, 2ND BRAKE

main35709-30061iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35709GRING, HOLE SNAP (FOR 2ND BRAKE DRUM)

main90521-99044iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35729AWASHER, PLANETARY CARRIER THRUST, NO.4

main35729-30010iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35738AWASHER, 1 WAY CLUTCH THRUST, NO.1

main35738-30040iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35749ARING, SUN GEAR SHAFT OIL SEAL

main35749-30010×2iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35755DRUM, SUN GEAR INPUT

main35755-50010iKUN16,2#,36,TGN16,26,36..4FC200808

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-46002iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

ID=46.0,T=1.2,REAR

main90520-49001iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

ID=49.0,WD=2.3,FRONT

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-30240iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH);KUN16,2#..4FC..(ARL,GEN,LA,MA,PHL,TH)200408-200812

35790CLUTCH ASSY, 1 WAY

main35790-30050iKUN25,TGN16,26,36..4FC200808

main35790-30060iKUN16,26,36..4FC200808

main35790-50020iGGN15,35..5FC;GGN25..5FC..CBU200808

21 parts on this diagram · 2 diagrams in section
