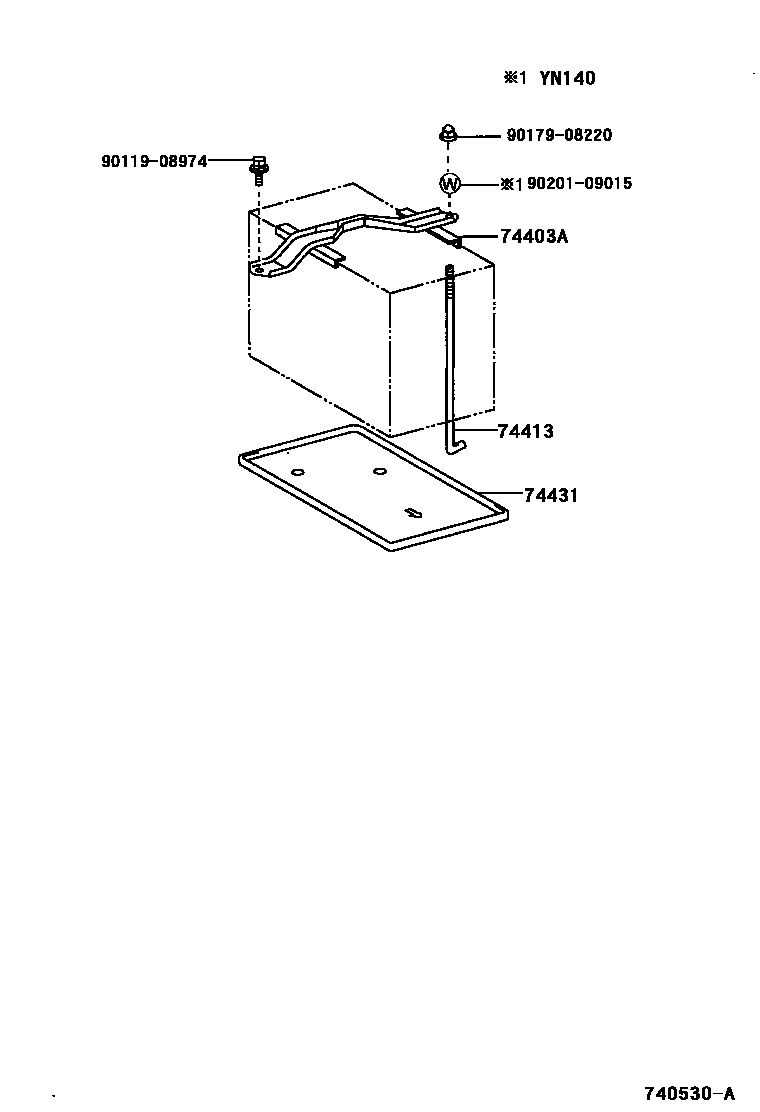

BATTERY CARRIER

74403ACARRIER SUB-ASSY, BATTERY

main74403-04010iLN167..THDCB..DLX;LN167..THSCB..IV3;LN147,152,172..THDCB,THSCB,THXTR200109-200502

main74403-35020iLN145,166..RHD..GEN..CBU200108-200506

main74404-35150iRZN169,174..ARL200108-200208

main74404-35160iRZN142,147..GEN200108-200506

74413BOLT, BATTERY CLAMP

main74451-35050iLN145,155..LHD..TH;KZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#..ARL,GCC,GEN,SA199708-200009

74431TRAY, BATTERY

main74431-04050iKZN165..TH;KDN190..IV1;LN167..THDCB..SR;LN167..THSCB..CBU;KZN165..THDCB,THSCB200109-200208

main74431-04060iRZN149,154..THDCB,THSCB,THXTR200109-200502

main74431-04070iKDN155200304-200409

main74431-14030iKDN165..IV1200108-200208

main74431-14050iRZN147..ARL200108-200208

main74431-35030iRZN169..DCB..SA;RZN169..DLX..SA;RZN142,147,194..SA;RZN148,149,168..DLX..GEN200109

main74431-35040iLN145,155..LHD..TH;KZN165,190,LN147,152,167,172,192..(DCB,SCB,XTR)..(ARL,SA)200104-200109

9011908974

main90119-08974

9017908220

main90179-08220

9020109015

main90201-09015

6 parts on this diagram · 1 diagram in section
