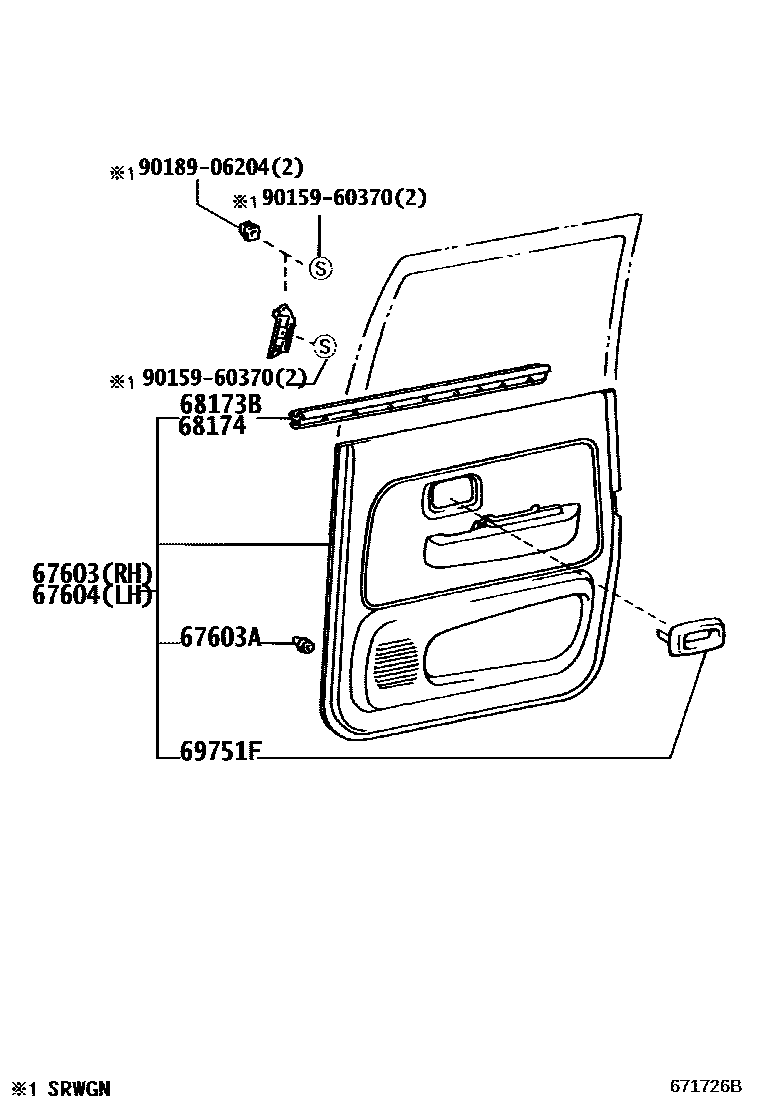

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-35460-B0iRZN149..ATM..ARL..CBU;KZN165,190,LN145,146,147,16#,19#,RZN147,148,149,16#,193..(DCB,THDCB)..MTM..DLX199708-200108

MD. MOON MIST,TRIM1#

main67630-35460-B7iLN145..LHD..DLX..TH200108-200408

MD.MOON MIST,TRIM1#

main67630-35460-D0iLN146,166,RZN147,149,169..DCB..DLX..GCC199708-200108

RED,TRIM3#

main67630-35460-D1iLN146,166,RZN147,149,169..DCB..DLX..GCC200108

RED,TRIM3#

main67630-35470-B0iLN167,RZN149,169..DCB..SR199708-199908

MD. MOON MIST,TRIM1#

main67630-35470-B5iRZN149..SR..GEN199908-200008

MD.MOON MIST,TRIM1#

main67630-35470-D0iRZN149..DCB..SR..GCC199708-200108

RED,TRIM3#

main67630-35480-B0iRZN148,168..DCB..DLX..GEN200110

W(FABRIC TRIM & POWER WINDOW),MD. MOON MIST,TRIM1#

main67630-35480-B6iKZN165,RZN149..(DCB,THDCB)..SR..(ARL,GEN)199908-200109

W(POWER WINDOW),MD.MOON MIST,TRIM1#

main67630-35480-D0iRZN149..DCB..SR..GCC199708-200108

W(POWER WINDOW),RED,TRIM3#

main67630-35500-B0iRZN147..LHD..DCB;RZN149..DLX..GCC;LN146,19#,RZN148,168,193..DCB;LN145,166,RZN169..LHD..DCB..(GEN,TH)199805-199908

W(POWER WINDOW),MD. MOON MIST,TRIM1#

main67630-35500-B6iKZN165,LN147,167,RZN149..(DCB,THDCB)..DLX..ARL..CBU200208-200502

W(POWER WINDOW),MD.MOON MIST,TRIM1#

main67630-35500-D0iLN146,RZN147,149..DCB..DLX..GCC199708-200108

W(POWER WINDOW),RED,TRIM3#

main67630-35500-D1iLN146,RZN147,149..DCB..DLX..GCC200108

W(POWER WINDOW),RED,TRIM3#

main67630-35520-B0iRZN148..DCB;LN145,166..RHD..DCB..CBU199808-199810

W(FABRIC TRIM),MD. MOONMIST,TRIM1#

main67630-35680-B0iLN166,RZN148,16#..SR..GEN200108-200506

W(POWER WINDOW),MD.MOON MIST,TRIM1#

main67630-35680-D0iRZN149..DCB..SR..GCC200108

W(POWER WINDOW),RED,TRIM3#

main67630-35700-B0iRZN149..DCB..SR..GCC200108

MD.MOON MIST,TRIM1#

main67630-35700-D0iRZN149..DCB..SR..GCC200108

RED,TRIM3#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-16120×14iLN145..DCB..TH200108-200408

main67771-89109×10iRZN169..LHD..DCB..GEN;LN145,166..RHD..DCB..CBU;LN147,167,RZN148,149,168..DCB..DLX..(ARL,GEN)199708-199808

BLUE

main67771-89112×8iLN145,166..RHD..DCB..CBU;RZN148,149,16#..LHD..DCB..DLX..GEN199808-199908

YELLOW

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-35460-B0iRZN149..ATM..ARL..CBU;KZN165,190,LN145,146,147,16#,19#,RZN147,148,149,16#,193..(DCB,THDCB)..MTM..DLX199708-200108

MD. MOON MIST,TRIM1#

main67640-35460-B7iLN145,166,191,RZN147,148,16#,193..DCB..DLX..GEN200108-200506

MD.MOON MIST,TRIM1#

main67640-35460-D0iLN146,166,RZN147,149,169..DCB..DLX..GCC199708-200108

RED,TRIM3#

main67640-35460-D1iLN146,166,RZN147,149,169..DCB..DLX..GCC200108

RED,TRIM3#

main67640-35470-B0iRZN149..DCB..SR..CBR..GCC;KZN165,LN167,RZN169,194..DCB..SA199908-200203

MD. MOON MIST,TRIM1#

main67640-35470-B5iRZN149..SR..GEN199908-200008

MD.MOON MIST,TRIM1#

main67640-35470-D0iRZN149..DCB..SR..GCC199708-200108

RED,TRIM3#

main67640-35480-B0iRZN149..(DCB,THDCB)..ARL;LN166,RZN169..LHD..DCB..GEN;LN147,167,RZN148,16#..(DCB,THDCB)..DLX..(DEFI,EFI)200010-200108

W(FABRIC TRIM & POWER WINDOW),MD. MOON MIST,TRIM1#

main67640-35480-B6iKZN165,RZN149..(DCB,THDCB)..SR..(ARL,GEN)199908-200109

W(POWER WINDOW),MD.MOON MIST,TRIM1#

main67640-35480-D0iRZN149..DCB..SR..GCC199708-200108

W(POWER WINDOW),RED,TRIM3#

main67640-35500-B0iRZN147..LHD..DCB;RZN149..DLX..GCC;RZN169..DCB..GEN;LN145,166..LHD..DCB..(GEN,TH);KZN190,LN146,19#,RZN148,168,193..DCB199908-200108

W(POWER WINDOW),MD. MOON MIST,TRIM1#

main67640-35500-B6iKDN165,190,LN166..DCB..MA200108-200503

W(POWER WINDOW),MD.MOON MIST,TRIM1#

main67640-35500-D0iLN146,RZN147,149..DCB..DLX..GCC199708-200108

W(POWER WINDOW),RED,TRIM3#

main67640-35500-D1iLN146,RZN147,149..DCB..DLX..GCC200108

W(POWER WINDOW),RED,TRIM3#

main67640-35520-B0iRZN148..DCB;LN145,166..RHD..DCB..CBU199808-199810

MD. MOONMIST,TRIM10

main67640-35680-B0iLN166,RZN148,16#..SR..GEN200108-200506

W(POWER WINDOW),MD.MOON MIST,TRIM1#

main67640-35680-D0iRZN149..DCB..SR..GCC200108

W(POWER WINDOW),RED,TRIM3#

main67640-35700-B0iRZN149..DCB..SR..GCC200108

MD.MOON MIST,TRIM1#

main67640-35700-D0iRZN149..DCB..SR..GCC200108

RED,TRIM3#

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-35020iKZN165..THDCB;LN167..SR..ARL;RZN169..(DCB,THDCB)..ARL200108-200208

main68173-35021iLN145,166..RHD..DCB..GEN;RZN148,149,168..DCB..DLX..GEN200404

68174WEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68173-35020iLN147,167..(DCB,THDCB)..ARL199708-200009

main68173-35021iLN146,166,RZN147,148,149,16#..DCB..(CO,GCC)200307

69751FHOLDER, REAR DOOR LOCK CONTROL KNOB

main69751-0A010-B1×2iLN167..DCB..TH200012-200108

MD.MOON MIST,TRIM1#

main69751-0A010-E0×2iKDN16#,190..DCB..TH200110-200402

SANDAL WOOD,TRIM4#

9015960370

main90159-60370

9018906204

main90189-06204

8 parts on this diagram · 2 diagrams in section
