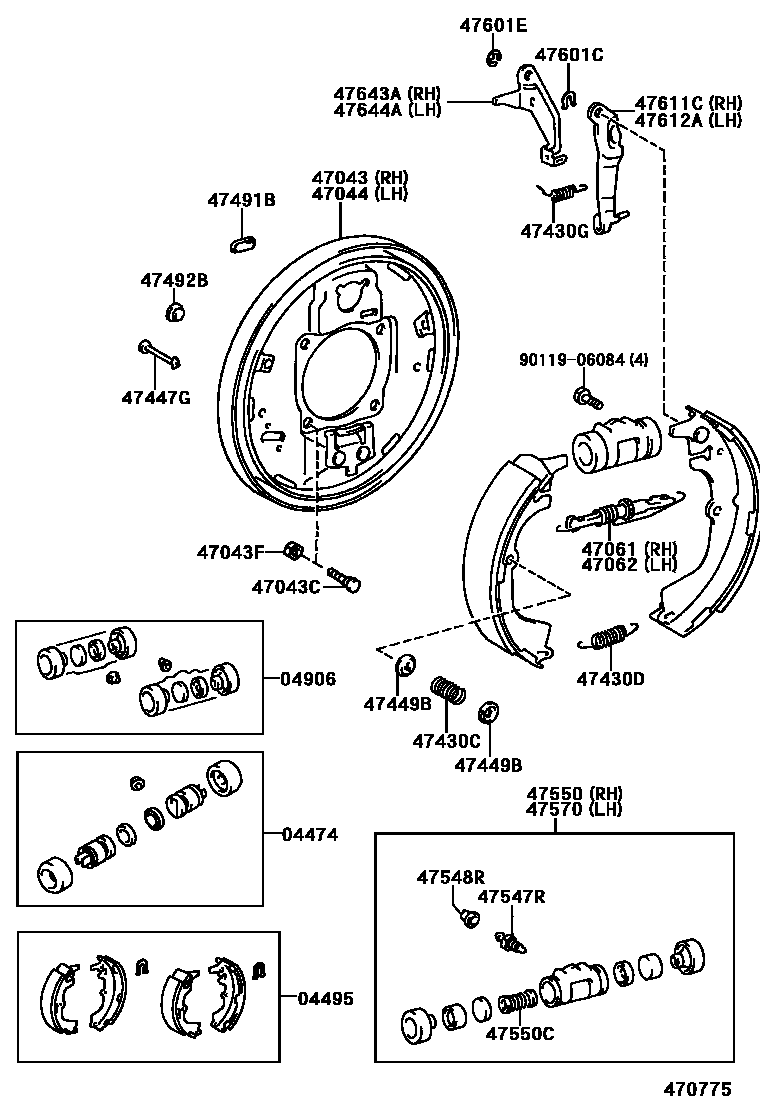

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-26040×2iRZN148..GEN..CBU200108-200304

CHINA SPEC

main04474-35070×2iRZN149..SR..GEN199708-200008

main04474-35080×2iLN166,RZN169..GCC200108-200508

04495SHOE KIT, REAR BRAKE

main04495-35170iRZN149..SR..GEN199805-200008

MARK AK LA509,MARK=NO.17

main04495-35230iKZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172200108-200511

MARK NBK LN508

main04495-35240iLN141,146,RZN142,144,147,149..GCC199708-199908

MARK AK LA509,MARK=474-N1

04906CUP KIT, REAR WHEEL CYLINDER

main04906-26060iRZN148..GEN..CBU200108-200304

CHINA SPEC

main04906-35100iLN166,RZN169..GCC200108-200508

main04906-35140iRZN149..SR..GEN199708-200008

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-26120iLN14#,RZN14#,154199708-199805

main47043-35061iLN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN140,141,146,RZN142,144,147,154..DCB,SCB,XTR;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU200108

main47043-35170iKZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172200108

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-10002×8iRZN147..ARL; RZN169..ARL;LN167..SR..ARL;KDN165,190..IV1;LN167..(SCB,THSCB)..ARL..CBU;KZN165,RZN174..(THDCB,THSCB,THXTR,XTR)..ARL200108-200208

*10-1.25PX37-18.5

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10067×8iKDN16#,190..SRWGN200108-200411

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-26120iLN14#,RZN14#,154199708-199805

main47044-35051iLN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN140,141,146,RZN142,144,147,154..DCB,SCB,XTR;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU200108

main47044-35160iKZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172200108

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-35020iLN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN140,141,146,RZN142,144,147,154..DCB,SCB,XTR;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU200108

main47061-60011iKZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172200108

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-35020iLN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN140,141,146,RZN142,144,147,154..DCB,SCB,XTR;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU200108

main47062-60011iKZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172200108

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012×4iRZN169..DLX..SA;KZN190,LN167,192,RZN194..SA200203-200504

main90501-20604×4iLN167..SA200108-200203

W(ABS)

main90501-20756×4iLN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN140,141,146,RZN142,144,147,154..DCB,SCB,XTR;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU200108

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18031×2iKZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172200108

main90506-20005×2iLN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN140,141,146,RZN142,144,147,154..DCB,SCB,XTR;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU200108

main90506-20070×2iLN14#,RZN14#,154199708-199805

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12015×2iLN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN140,141,146,RZN142,144,147,154..DCB,SCB,XTR;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU200108

main90506-12031×2iKZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172200108

main90507-12036×2iLN14#,RZN14#,154199708-199805

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010×4iLN14#,RZN14#,154199708-199805

main47447-30020×4iKZN190..SR;LN147..IV3;LN145..LHD..IV3;LN147..DCB,THDCB;LN145,152,RZN148..(ARL,GEN,SA)..CBU;LN167,192,RZN148,149..ARL,CO,GCC,SA;KDN16#,190,KZN165,LN140,141,146,166,17#,191,RZN142,144,147,154,16#,174,19#,VZN167,172200108

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iLN147..THSCB..IV3;LN147,152..(THDCB,THXTR)..CBU;RZN147,149,154..THDCB,THSCB,THXTR200108-200205

47491BPLUG, HOLE(FOR REAR BRAKE)

main47491-04010×2iLN147,152,RZN147,149,154..THDCB,THSCB,THXTR200205-200502

main47491-20011×2iLN147..THSCB..IV3;LN147,152..(THDCB,THXTR)..CBU;RZN147,149,154..THDCB,THSCB,THXTR200108-200205

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010×2iLN147..THSCB..IV3;LN147,152..(THDCB,THXTR)..CBU;RZN147,149,154..THDCB,THSCB,THXTR200108-200205

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030×2iLN147..THSCB..IV3;LN147,152..(THDCB,THXTR)..CBU;RZN147,149,154..THDCB,THSCB,THXTR200108-200205

main47547-60020×2iKZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172200108

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iRZN148..GEN..CBU200108-200304

CHINA SPEC

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-26130iRZN148..GEN..CBU200108-200304

CHINA SPEC

main47550-35180iRZN148,149..CO;LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU200108

main47550-35190iKZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172200108

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90029-60009×2iLN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN140,141,146,RZN142,144,147,154..DCB,SCB,XTR;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU200108

main90029-60011×2iKZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172200108

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-26130iRZN148..GEN..CBU200108-200304

CHINA SPEC

main47550-35180iRZN148,149..CO;LN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU200108

main47550-35190iKZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172200108

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-35040iKZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172200108

47601CWASHER, C(FOR REAR BRAKE)

main90213-07010×2iKZN190..SR;LN147..IV3;LN145..LHD..IV3;LN147..DCB,THDCB;LN145,152,RZN148..(ARL,GEN,SA)..CBU;LN167,192,RZN148,149..ARL,CO,GCC,SA;KDN16#,190,KZN165,LN140,141,146,166,17#,191,RZN142,144,147,154,16#,174,19#,VZN167,172200108

T=1.6

47601ERING, E(FOR REAR BRAKE)

main96160-00500×2iKZN190..SR;LN147..IV3;LN145..LHD..IV3;LN147..DCB,THDCB;LN145,152,RZN148..(ARL,GEN,SA)..CBU;LN167,192,RZN148,149..ARL,CO,GCC,SA;KDN16#,190,KZN165,LN140,141,146,166,17#,191,RZN142,144,147,154,16#,174,19#,VZN167,172200108

47611CLEVER, PARKING BRAKE SHOE, RH

main47611-26050iLN14#,RZN14#,154199708-199805

main47611-35020iLN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU200108-200506

47612ALEVER, PARKING BRAKE SHOE, LH

main47612-26050iLN14#,RZN14#,154199708-199805

main47612-35020iLN145..LHD..IV3;LN145,RZN142,147,148,154..GEN..CBU200108-200506

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-26010iLN14#,RZN14#,154199708-199805

main47643-35020iLN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN140,141,146,RZN142,144,147,154..DCB,SCB,XTR;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU200108

main47643-60010iKZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172200108

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-26010iLN14#,RZN14#,154199708-199805

main47644-35020iLN147..DCB;LN147..SCB..IV3;LN145..LHD..IV3;RZN148,149..(DCB,SCB)..(ARL,CO,GCC);LN140,141,146,RZN142,144,147,154..DCB,SCB,XTR;LN145,152,RZN148..(DCB,SCB,XTR)..(ARL,GEN,SA)..CBU200108

main47644-60010iKZN190..SR;LN167,192..ARL,SA;KDN16#,190,KZN165,LN166,17#,191,RZN16#,174,19#,VZN167,172200108

9011906084

main90119-06084

29 parts on this diagram · 2 diagrams in section
