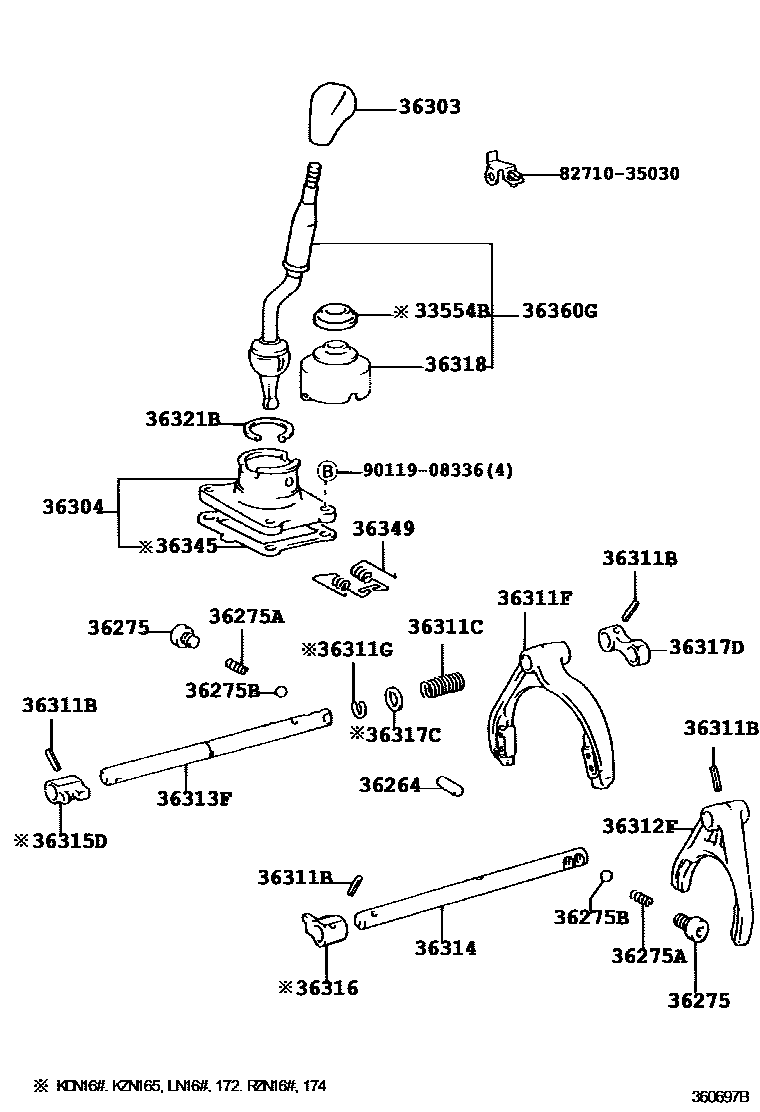

TRANSFER LEVER & SHIFT ROD

0001 1 0003 1 0004 1W(AUTOMATIC DISCONNECTING DIF

33554BCAP, TRANSFER SHIFT LEVER

main33554-20010iKDN165..SRWGN200108-200411

36264PIN OR ROLLER, SHIFT INTER-LOCK

main90250-06005iLN166,171..GEN,MA200108-200506

L=30.8,OD=6

main90250-10020iLN167..DCB..SA;RZN169..DLX..ARL;VZN167,172..ATM..DLX;LN167..(SCB,THSCB)..CBU;KZN165..(THDCB,THSCB)..DLX;KZN165,RZN16#..GCC,GEN,SA,TH;KDN16#,LN166,RZN174..ARL,GCC,TH200108-200508

L=25.7,OD=9.53

36275PLUG, SHIFT DETENT BALL SPRING

main90341-10064×2iLN166,171..GEN,MA200108-200506

main90341-12014×2iLN167..DCB..SA;VZN167,172..ATM..DLX;LN167..(SCB,THSCB)..CBU;KZN165,RZN16#..GEN,SA,TH;KZN165..(THDCB,THSCB)..DLX;KDN16#,LN166,RZN174..ARL,GCC,TH200108-200508

main90931-12014×2iRZN169,174..DLX..(ARL,GCC)200108-200508

W(ABS)

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-13001×2iLN166,171..GEN,MA200108-200506

L=16.5

main90501-16116×2iLN167..SCB..IV3;LN167..DCB..DLX..ARL;KZN165,LN172,VZN167,172..(DCB,SCB,XTR)..MTM..DLX200108-200501

L=23

36275BBALL, SHIFT DETENT

main90360-08009×2iLN166,171..DSL..GEN199708

OD=7.94,STEEL

main90360-10003iKZN165..TH;LN167..(DCB,THDCB,XTR)..DEFI200009-200109

OD=9.52,STEEL,W(2-4 SELECTOR)

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-04010iKDN16#..(DCB,XTR)..TH..CBU200112-200408

main36303-35140-B1iLN166,RZN16#..CO,GCC200108

MD.MOON MIST,TRIM1#

main36303-35140-C0iLN167..IV1199808-200009

BLACK,TRIM1#

main36303-35140-D0iLN166,RZN169..GCC199708-200108

RED,TRIM3#

main36303-35170-B0iKZN165..SR..ARL199909-200109

MD.MOON MIST,TRIM1#

main36303-35170-C0iLN167..IV1199808-200009

W(A.D.D),BLACK,TRIM1#

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main36304-35032iLN166,171..LHD..GEN199708-200108

main36304-35041iVZN167,172..ATM200208-200411

main36304-35051iKZN165..SCB199708-200008

main36304-60120iVZN167,172..ATM200411-200502

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05001×2iLN167..SCB..IV3;LN167..DCB..DLX..ARL;KZN165,LN172..(DCB,SCB,XTR)..DLX; VZN167,172..MTM..DLX200108-200501

L=22

36311CSPRING, COMPRESION (FOR SHIFT FORK)

main90501-20088iKDN165..MA200108-200502

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-35010iLN166,171..DSL..GEN199708

main36311-35020iRZN16#..GEN,SA;VZN167,172..ATM..DLX;LN167..(SCB,THSCB)..CBU;KZN165..(THDCB,THSCB)..DLX;KZN165,LN16#..DCB..(GCC,SA)200108-200508

main36311-35030iLN172..THXTR..CBU200109-200408

W(A.D.D)

main36311-35041iLN167,RZN169,VZN167..MTM..SR..ARL200109-200502

36311GRING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)

main90520-13002iKZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)199708

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36312-35020iLN166,171..GEN,MA200108-200506

main36312-35040iLN167..SCB..IV3;VZN167..MTM..DLX;LN167..DCB..DLX..ARL;KZN165,LN172,VZN172..(DCB,SCB,XTR)..MTM..ARL200108-200501

36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK

main36313-35020iLN166,171..GEN,MA200108-200506

main36313-35080iLN167..DSL;KZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,RZN169..(CBR,TDE)..(GCC,GEN,SA);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)199708

main36313-35120iVZN167,172..ATM..DLX200208-200502

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-35020iLN166,171..DSL..GEN199708

main36314-35110iKZN165..SA,TH;LN167..SR..ARL;LN167..DCB..SA;RZN16#..ARL,GCC,GEN,SA;LN167..(SCB,THSCB)..CBU;KZN165..(THDCB,THSCB)..DLX;KDN16#,LN166,RZN174..ARL,GCC,TH200108-200508

main36314-35120iVZN167..ATM..SR200208-200411

main36314-35130iVZN167,172..ATM..DLX200208-200411

main36314-35140iVZN167,172..ATM..DLX200411-200502

main36314-35150iVZN167..ATM..SR200411-200502

36315DHEAD, TRANSFER GEAR SHIFT, NO.1

main36315-35010iLN167..DCB..SA;RZN169..DLX..ARL;LN167..(SCB,THSCB)..CBU;KZN165..(THDCB,THSCB)..DLX;KZN165,RZN16#..GCC,GEN,SA,TH;KDN16#,LN166,RZN174..ARL,GCC,TH200108-200508

36316HEAD, TRANSFER GEAR SHIFT, NO.2

main36316-35020iLN167..DSL;KZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,RZN169..(CBR,TDE)..(GCC,GEN,SA);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)199708

main36316-35040iVZN167..ATM..SR200411-200502

36317CSTOPPER, TRANSFER SHIFT SHAFT

main36317-35020iLN167..DSL;KZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,RZN169..(CBR,TDE)..(GCC,GEN,SA);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)199708

36317DSTOPPER, NO.2, TRANSFER SHIFT SHAFT

main36317-35030iLN167..DSL;KZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,RZN169..(CBR,TDE)..(GCC,GEN,SA);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)199708

36318BOOT, TRANSFER FRONT DRIVE SHIFT

main33555-35190iKZN165..XTR;KZN165..SCB..DLX;RZN168..DLX..GEN;KZN165..SR..(ARL,SA);LN167,RZN169..CBR,DSL;RZN169..DLX..(ARL,SA);LN166,172,RZN174..ARL,GCC;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)199708

main33555-35200iLN166,171..DSL..GEN199708

36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)

main90521-49003iKDN16#..SRWGN200108-200411

36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER

main36345-35021iLN166,171..GEN,MA200108-200506

main36345-35040iKZN165..SCB..DLX;KZN165..(DCB,THDCB,XTR)..(ARL,TH);LN167,172,RZN169,174..(DEFI,EFI)..(ARL,TH)199708-200109

36349SPRING, TRANSFER SELECT RETURN

main36349-35010iVZN167,172..MTM..DLX200208-200501

main36349-35020iRZN169..DLX..ARL;KDN16#,LN172,RZN168,174;LN16#..DLX..(ARL,GCC,SA);KZN165..(THDCB,THSCB)..DLX;KZN165,RZN169..GCC,GEN,SA,TH200108-200511

main36349-35031iLN166..RHD..GEN199708

36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT

main36360-35330iLN166..RHD..GEN200108-200506

main36360-35340iLN166,171..LHD..GEN200108-200506

main36360-35360iLN166..GCC200108

main36360-35390iLN167..SR200109-200208

W(2-4 SELECTOR)

main36360-35400iLN167..(SCB,THSCB)..ARL..CBU200109-200208

main36360-35410iRZN169..(DCB,THDCB)..ARL199708-200109

W(2-4 SELECTOR)

main36360-35420iRZN169..SA;RZN169..RHD..CBR;RZN169,174..DLX..ARL199708-200203

main36360-35430iRZN168..DLX..GEN;RZN169..LHD..CBR199708

main36360-35490iKZN165..TH;KDN165..IV1;KZN165..(THDCB,THSCB)..DLX200109-200208

main36360-35500iKZN165..THDCB..SR200109-200208

main36360-35530iVZN167,172..MTM..DLX200208-200502

main36360-35540iVZN167..MTM..SR200208-200502

main36360-35550iKDN166..(DCB,XTR)..ATM200208-200408

main36360-35560iVZN167,172..ATM..DLX200208-200502

main36360-35570iVZN167..ATM..SR200208-200502

8271035030HARNESS ASSY, OIL HEATER

main82710-35030

9011908336

main90119-08336

25 parts on this diagram · 3 diagrams in section
