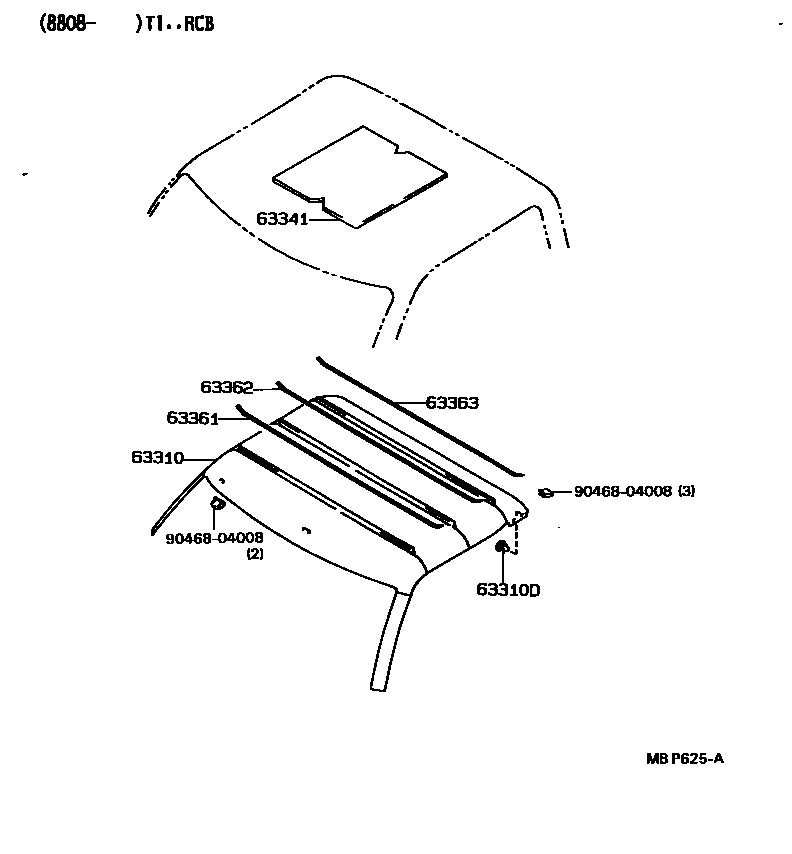

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1 0004 1

63310HEADLINING ASSY, ROOF

main63311-89124-02iRN8#,YN86..T1..(DLX,SR5)199108-199708

RED,TRIM3#

main63311-89124-03iLN8#,RN8#,YN8#..T1198808-198901

GRAY,TRIM1#

main63311-89124-04iLN8#,RN8#,YN8#..T1198808-198901

BLUE,TRIM8#

main63311-89124-06iLN8#,RN8#,YN8#..T1198808-198901

BROWN,TRIM4#

main63311-89124-B0iLN8#,RN8#,YN8#..T1198901-199705

SLATE GRAY,TRIM1#

main63311-89124-E0iLN8#,RN8#,YN8#..T1198901-199108

LIGHT BROWN,TRIM4#

main63311-89124-J0iLN8#,RN8#,YN8#..T1198901-199108

LIGHT BLUE,TRIM8#

main63311-89124-J1iLN81,86,RN8#,YN81,86..T1..V199408-199708

BLUE,TRIM8#

main63311-89126-03iRN90..DLX;LN9#,RN90,YN9#..ARL,GEN,TH198808-199806

GRAY,TRIM1#

main63311-89126-04iLN90,RN90,YN92198808-199108

BLUE,TRIM8#

main63311-89126-06iLN90,RN90,YN92198808-199108

BROWN,TRIM4#

main63311-89126-D0iRN90..DLX199208-199708

RED,TRIM3#

main63311-89126-J1iRN90..DLX;LN90,RN90,YN9#..ARL,GEN,TH199108-199408

BLUE,TRIM8#

main63311-89127-03iRN90198808-199108

W(MOON ROOF),GRAY,TRIM1#

main63311-89127-04iRN90198808-199108

W(MOON ROOF),BLUE,TRIM8#

main63311-89127-06iRN90198808-199108

W(MOON ROOF),BROWN,TRIM4#

main63311-89128-02iRN90..SR5..V199208-199708

RED,TRIM3#

main63311-89128-03iRN90..SR5..V199208-199303

GRAY,TRIM1#

main63311-89128-B0iRN90..SR5..V199303-199708

GRAY,TRIM1#

main63311-89128-J1iRN90..SR5..V199208-199708

BLUE,TRIM8#

main63311-89131-02iRN85,YN86..TW1..(DLX,SR5)..V199108-199708

RED,TRIM3#

main63311-89131-03iLN85,86,RN85,YN85,86,87..TW1198808-200106

GRAY,TRIM1#

main63311-89131-04iLN85,86,RN85,YN85,86,87..TW1198808-199108

BLUE,TRIM8#

main63311-89131-06iLN85,86,RN85,YN85,86,87..TW1198808-199108

BROWN,TRIM4#

main63311-89131-J1iLN85,86,RN85,YN85,86..TW1..(GEN,V)199108-199408

BLUE,TRIM8#

main63311-89132-03iRN125198907-199308

GRAY,TRIM1#

main63311-89132-04iRN125198907-199108

BLUE,TRIM8#

main63311-89132-06iRN125198907-199108

BROWN,TRIM4#

main63311-89132-J0iRN125199108-199308

BLUE,TRIM8#

main63311-89133-03iRN125198907-199108

W(MOON ROOF),GRAY,TRIM1#

main63311-89133-04iRN125198907-199108

W(MOON ROOF),BLUE,TRIM8#

main63311-89133-06iRN125198907-199108

W(MOON ROOF),BROWN,TRIM4#

main63311-89133-J0iRN125199108-199308

W(FRONT SPOT LAMP),BLUE,TRIM8#

main63311-89135-03iRN125199108-199308

W(MOON ROOF & FRONT SPOT LAMP),GRAY,TRIM1#

main63311-89135-J0iRN125199108-199308

W(MOON ROOF & FRONT SPOT LAMP),BLUE,TRIM8#

63310DCLIP, ROOF HEADLINING

main90467-08122×4iLN86..TW1200008-200106

NATURAL

main90467-09110-03×4iRN125198907-199308

GRAY,TRIM1#

main90467-09110-04×4iRN125198907-199108

BLUE,TRIM8#

main90467-09110-06×4iRN125198907-199108

BROWN,TRIM4#

main90467-09110-J0×4iRN125199108-199308

BLUE,TRIM8#

main90467-10018×4iLN86..TW1200008-200106

BLACK

main90467-10044×8iLN9#,RN90,YN90..RHD199408-199806

main90467-10044-02×4iRN8#..T1..SR5199008-199108

RED,TRIM3#

main90467-10044-14×8iLN8#,RN8#,YN8#..T1; LN90,RN90,YN92198808-198901

BLUE,TRIM8#

main90467-10044-16×8iLN8#,RN8#,YN8#..T1; LN90,RN90,YN92198808-198901

BROWN,TRIM4#

main90467-10044-33×8iLN8#,RN8#,YN8#..T1; LN90,RN90,YN92198808-198901

GRAY,TRIM1#

main90467-10044-B0×8iRN90,YN92..LHD199308-199708

SLATE GRAY,TRIM1#

main90467-10044-D0×4iRN8#,YN86..T1..(DLX,SR5)199109-199708

RED,TRIM3#

main90467-10044-E0×8iLN8#,RN8#,YN8#..T1; LN90,RN90,YN92198901-199108

LIGHT BROWN,TRIM4#

main90467-10044-J0×8iLN8#,RN8#,YN8#..T1; LN90,RN90,YN92198901-199108

LIGHT BLUE,TRIM8#

main90467-10044-J1×4iLN81,86,RN8#,YN81,86..T1..V; RN90..V199408-199708

LIGHT BLUE,TRIM8#

63341PAD, ROOF SILENCER, NO.1

main63341-89110iLN8#,RN8#,YN8#..T1; LN85,86,RN85,YN85,86,87..TW1198808-199108

430X500

main63341-89116iLN8#,RN8#,YN8#..T1198808-199108

960X500

main63341-89121iLN9#,RN90,YN9#198808-199806

main63341-89122iRN125198907-199308

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-89113×2iRN90198808-199108

W(MOON ROOF)

main63361-89115iLN90,RN90,YN92198808-198812

main63361-89116iLN8#,9#,RN8#,90,YN8#,9#..T1198812-199705

main63361-89118iLN85,86,RN85,YN85,86,87..TW1198808-200106

63362SUPPORT, ROOF HEADLINING, NO.2

main63361-89113×2iRN90198808-199108

W(MOON ROOF)

main63361-89115iLN9#,RN90,YN9#198808-199806

main63361-89120iLN85,86,RN85,YN85,86,87..TW1198808-200106

main63361-89123iRN85..EFI..IV3;RN85..T1..(ARL,V);RN85..T1..GEN..CBU;LN8#,RN80,YN8#..T1;RN85..RHD..GEN..IV3199705-200106

63363SUPPORT, ROOF HEADLINING, NO.3

main63361-89115iLN9#,RN90,YN9#198808-199806

main63361-89120iLN85,86,RN85,YN85,86,87..TW1198808-200106

main63361-89123iLN8#,RN8#,YN8#..T1198808-199705

9046804008

main90468-04008

7 parts on this diagram · 4 diagrams in section
