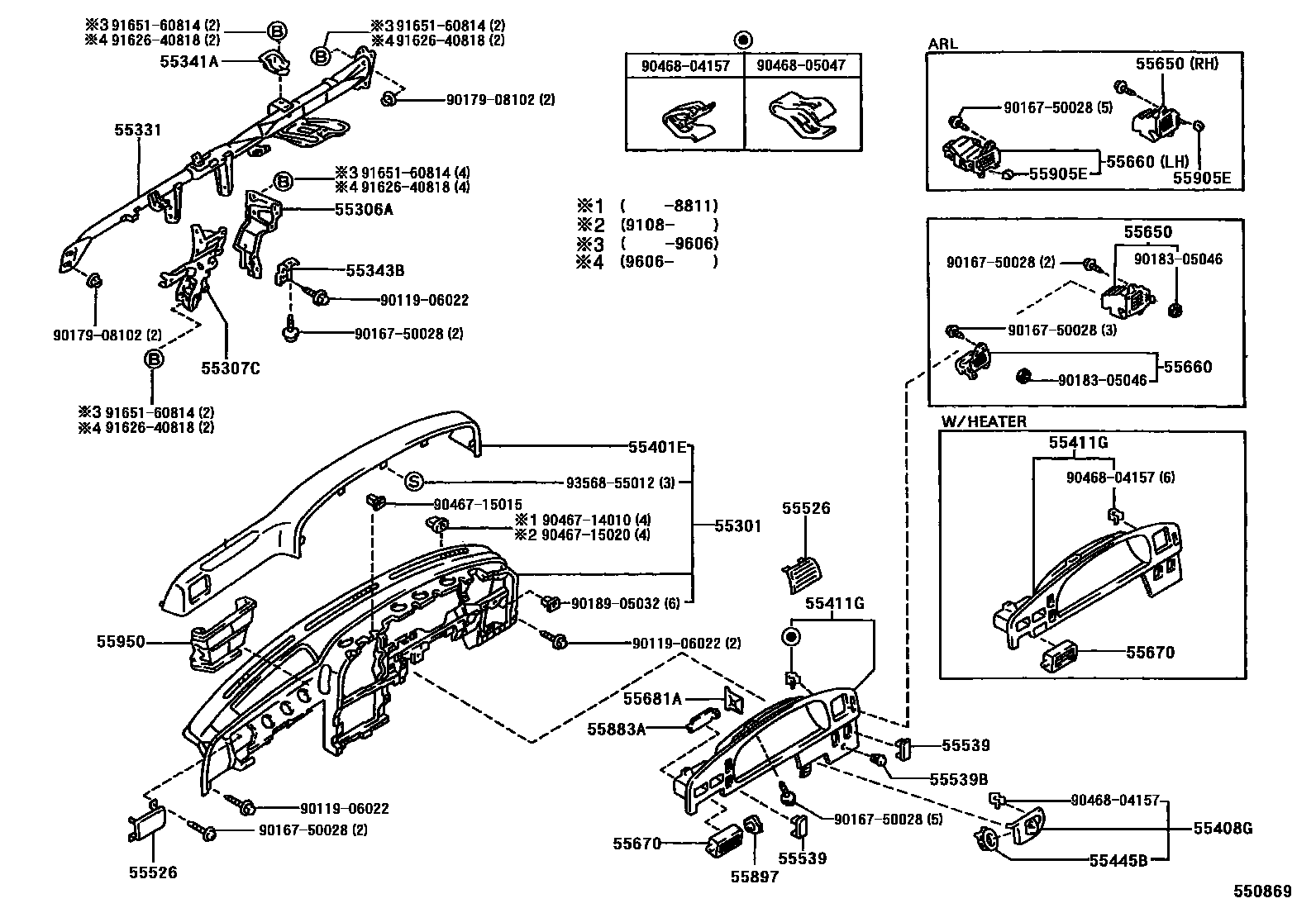

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-35020-B0iLN81,86,RN80,90,YN81..V;LN85,RN85,YN80,85,86,92..LHD..(GEN,V)199211-199909

GRAY,TRIM1#

main55301-35020-D0iRN8#,90,YN86..(DLX,SR5)..V199108-199708

RED,TRIM3#

main55301-35020-J0iLN85,YN80,85,92..LHD..GEN;LN81,86,RN8#,90,YN81,86..V199108-199211

BLUE,TRIM8#

main55301-35030-B0iRN85..LHD..GEN199108-199211

GRAY,TRIM1#

main55301-35030-J0iRN85..LHD..GEN199108-199211

BLUE,TRIM8#

main55301-89121-B0iLN85,RN125..LHD..(TH,V)198907-199806

MEDIUM GRAY,TRIM1#

main55301-89121-E0iRN125198907-199108

BROWN,TRIM4#

main55301-89121-J0iLN85,RN125..LHD..(TH,V)198907-199408

MEDIUM BLUE,TRIM8#

main55301-89123-03iLN8#,RN85,90,YN85,87,92..RHD198808-198901

GRAY,TRIM1#

main55301-89123-04iLN8#,RN85,90,YN85,87,92..RHD198808-198901

BLUE,TRIM8#

main55301-89123-06iLN8#,RN85,90,YN85,87,92..RHD198808-198901

BROWN,TRIM4#

main55301-89123-B0iLN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD198901-199909

MEDIUM GRAY,TRIM1#

main55301-89123-E0iLN80,85,90,RN85,90,YN80,85,87,92..RHD198901-199108

BROWN,TRIM4#

main55301-89123-J0iLN80,85,86,90,RN85,90,YN80,85,87,9#..RHD198901-199408

MEDIUM BLUE,TRIM8#

main55301-89126-02iRN8#..SR5199008-199108

RED,TRIM3#

main55301-89126-03iLN81,85,86,90,RN8#,YN8#,92..LHD198808-199108

GRAY,TRIM1#

main55301-89126-04iLN81,85,86,90,RN8#,YN8#,92..LHD198808-199108

BLUE,TRIM8#

main55301-89126-06iLN81,85,86,90,RN8#,YN8#,92..LHD198808-199108

BROWN,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-35010iRN85..LHD..CBU;RN85..EFI..IV3;LN81,85,86,RN80,90,YN8#,92..LHD..(GEN,V)199705-200106

main55306-35110iLN200,RZN200200106

main55306-89105iLN85,RN125..LHD..(TH,V)198907-199806

main55306-89106iLN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD198808-199909

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-35010iLN200,RZN200200106

main55307-89107iLN85,RN125..LHD..(TH,V)198907-199806

main55307-89108iLN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD198808-199909

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-35020iLN200,RZN200200106

main55330-89118iLN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD198808-199909

main55330-89119iLN85,90,RN8#,YN8#,92..LHD198808-198906

main55330-89120iRN125198907-199108

main55330-89121iLN81,85,86,90,RN8#,YN8#,92..LHD198906-199108

55341ABRACE, INSTRUMENT PANEL TO COWL, UPPER

main55341-89103iLN81,85,86,90,RN125,8#,90,YN8#,92..LHD198808-199705

main55341-89104iLN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD198808-199909

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-89101iLN81,85,86,90,RN125,8#,90,YN8#,92..LHD198808-199705

main55343-89102iLN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD198808-199909

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-89122-B0iLN85,RN125..LHD..(TH,V)198907-199806

MEDIUM GRAY,TRIM1#

main55401-89122-E0iRN125198907-199108

BROWN,TRIM4#

main55401-89122-J0iLN85,RN125..LHD..(TH,V)198907-199408

MEDIUM BLUE,TRIM8#

main55401-89123-03iLN8#,RN85,90,YN85,87,92..RHD198808-198901

GRAY,TRIM1#

main55401-89123-04iLN8#,RN85,90,YN85,87,92..RHD198808-198901

BLUE,TRIM8#

main55401-89123-06iLN8#,RN85,90,YN85,87,92..RHD198808-198901

BROWN,TRIM4#

main55401-89123-B0iLN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD198901-199909

MEDIUM GRAY,TRIM1#

main55401-89123-E0iLN80,85,90,RN85,90,YN80,85,87,92..RHD198901-199108

BROWN,TRIM4#

main55401-89123-J0iLN80,85,86,90,RN85,90,YN80,85,87,9#..RHD198901-199408

MEDIUM BLUE,TRIM8#

55408GBEZEL SUB-ASSY, STARTER SWITCH

main55408-89101iLN86..V;RN85..LHD..CBU;RN85..EFI..IV3;LN81,85,RN80,90,YN8#,92..LHD199705-199909

main55408-89104iLN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD198808-199909

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-35040iRN85..LHD..CBU;RN85..EFI..IV3;LN81,86,RN80,90,YN81..V;LN85,YN80,85,86,92..LHD..(GEN,V)199705-199909

main55411-89109iLN85,RN125..LHD..(TH,V)198907-199806

main55411-89110iLN85,86,RN85,90,YN85..ARL198808-199708

main55411-89111iLN81,85,86,90,RN8#,YN8#,92..LHD198808-199108

main55411-89114iLN80,85,9#,RN85,YN80,85,87,9#..RHD..(GEN,TH)198808-199909

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-89103iRN85..CBU;LN86..ARL,V;RN85..RHD..IV3;RN85..EFI..IV3;LN80,81,85,9#,RN80,90,YN8#,92199705-199909

55526COVER, INSTRUMENT PANEL REGISTER OPENING

main55526-89108iLN81,85,86,90,RN8#,YN8#,92..LHD198908-199108

DRIVER SIDE

main55526-89109-02iRN8#..SR5199008-199108

RED,TRIM3#,PASSENGER SIDE

main55526-89109-03iLN81,86,RN8#,90,YN81,86..V199108-199708

GRAY,TRIM1#,PASSENGER SIDE

main55526-89109-04iLN81,86,RN8#,90,YN81,86..V199108-199708

BLUE,TRIM8#,PASSENGER SIDE

main55526-89109-06iLN81,85,86,90,RN8#,YN8#,92..LHD198908-199108

BROWN,TRIM4#,PASSENGER SIDE

main55526-89110iLN80,85,YN85,87,92..RHD..GEN198808-199108

DRIVER SIDE

main55526-89111-03iLN80,85,YN85,87,92..RHD..GEN198808-199108

GRAY,TRIM1#,PASSENGER SIDE

main55526-89111-04iLN80,85,YN85,87,92..RHD..GEN198808-199108

BLUE,TRIM8#,PASSENGER SIDE

main55526-89111-06iLN80,85,YN85,87,92..RHD..GEN198808-199108

BROWN,TRIM4#,PASSENGER SIDE

55539COVER, SPARE SWITCH HOLE

main55539-89105iLN8#,9#,RN125,8#,90,YN8#,9#198808-199705

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-89104iLN8#,90,RN8#,YN8#,92..GEN,TH,V198808-199108

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-89112iLN86..V;LN81,85,90,RN125,8#,90,YN8#,92..LHD198808-199705

main55650-89113iLN80,85,9#,RN85,YN80,85,87,9#..RHD..(GEN,TH)198808-199909

main55650-89114iLN85,86,RN85,90,YN85..ARL198808-199708

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-89106-03iLN85,86,RN85,90,YN85..ARL198808-199708

GRAY,TRIM1#

main55660-89106-04iLN85,86,RN85,90,YN85..ARL198808-199408

BLUE,TRIM8#

main55660-89106-06iLN85,RN85,90,YN85..ARL198808-199108

BROWN,TRIM4#

main55660-89107-02iRN8#..SR5199008-199108

RED,TRIM3#

main55660-89107-03iLN81,85,86,90,RN125,8#,YN8#,92..LHD198808-199109

GRAY,TRIM1#

main55660-89107-04iLN81,85,86,90,RN125,8#,YN8#,92..LHD198808-199109

BLUE,TRIM8#

main55660-89107-06iLN81,85,86,90,RN125,8#,YN8#,92..LHD198808-199108

BROWN,TRIM4#

main55660-89107-B0iLN86..LHD..STD;LN81,85,RN125,8#,90,YN8#,92..LHD199109-200105

MEDIUM GRAY,TRIM1#

main55660-89107-D0iRN8#,90,YN86..(DLX,SR5)..V199109-199708

RED,TRIM3#

main55660-89107-J0iLN81,85,86,RN125,8#,90,YN8#,92..LHD199109-199408

MEDIUM BLUE,TRIM8#

main55660-89108-03iLN80,85,90,RN85,YN80,85,87,92..RHD..(GEN,TH)198808-199310

GRAY,TRIM1#

main55660-89108-04iLN80,85,90,RN85,YN80,85,87,92..RHD..(GEN,TH)198808-199310

BLUE,TRIM8#

main55660-89108-06iLN80,85,90,YN80,85,87,92..RHD..(GEN,TH)198808-199108

BROWN,TRIM4#

main55660-89108-B0iLN80,85,9#,RN85,YN80,85,90..RHD..(GEN,TH)199310-199909

MEDIUM GRAY,TRIM1#

main55660-89108-J0iLN80,85,90,RN85,YN80,85,90..RHD..(GEN,TH)199310-199408

MEDIUM BLUE,TRIM8#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-89115×2iRN85..EFI..IV3;RN85..LHD..GEN..CBU;LN85,YN80,85,86,92..LHD..GEN199705-199909

main55670-89116×2iLN80,85,9#,YN80,85,90..RHD..TH199108-199806

W(HEATER)

main55670-89117×2iLN81,85,86,RN8#,90,YN81,86..LHD..(TH,V)199108-199806

main55670-89118×2iLN80,85,9#,YN80,85,90..RHD..TH199108-199806

55681ASUPPORT, INSTRUMENT PANEL REGISTER

main55681-89101iLN81,85,86,90,RN8#,YN8#,92..LHD198908-199108

main55681-89102iLN80,85,9#,YN80,85,90..RHD..TH199108-199806

55883ADAMPER, AIR

main55883-89101×2iLN85,90,RN125,8#,YN8#,92..LHD198808-198908

main55883-89102×2iLN80,85,90,YN80,85,87,92..RHD..(GEN,TH)198808-199108

55897KNOB, AIR DAMPER CONTROL LEVER

main55897-89105×2iLN85,90,RN125,8#,YN8#,92..LHD198808-198908

main55897-89108×2iLN80,85,90,YN80,85,87,92..RHD..(GEN,TH)198808-199108

55905EKNOB SUB-ASSY, CONTROL

main55905-12050-01iLN85,RN85,90,YN85..ARL199106-199108

BLACK,TRIM1#,4#,8#,DRIVER SIDE

main55905-12050-13×2iLN85,RN85,90,YN85..ARL198808-199106

MEDIUM GRAY,TRIM1#

main55905-12050-26×2iLN85,RN85,90,YN85..ARL198808-199106

BROWN,TRIM4#

main55905-12050-54×2iLN85,RN85,90,YN85..ARL198808-199106

BLUE,TRIM8#

main55905-35090-B0iLN86,RN85,90,YN85..ARL199108-199708

GRAY,TRIM1#,DRIVER SIDE

main55905-35090-E0iLN85,RN85,90,YN85..ARL199106-199108

BROWN,TRIM4#,PASSENGER SIDE

main55905-35090-J0iLN86,RN85,90,YN85..ARL199108-199408

BLUE,TRIM8#,DRIVER SIDE

55950NOZZLE ASSY, DEFROSTER

main55950-89108iLN86..V;LN81,85,90,RN125,8#,90,YN8#,92..LHD198808-199705

main55950-89109iLN80,85,86,9#,RN85,90,YN80,85,87,9#..RHD198808-199909

9011906022

main90119-06022

9016750028

main90167-50028

9017908102

main90179-08102

9018305046

main90183-05046

9018905032

main90189-05032

9046714010

main90467-14010

9046715015

main90467-15015

9046715020

main90467-15020

9046804157

main90468-04157

9046805047

main90468-05047

9162640818

main91626-40818

9165160814

main91651-60814

9356855012

main93568-55012

34 parts on this diagram · 4 diagrams in section
