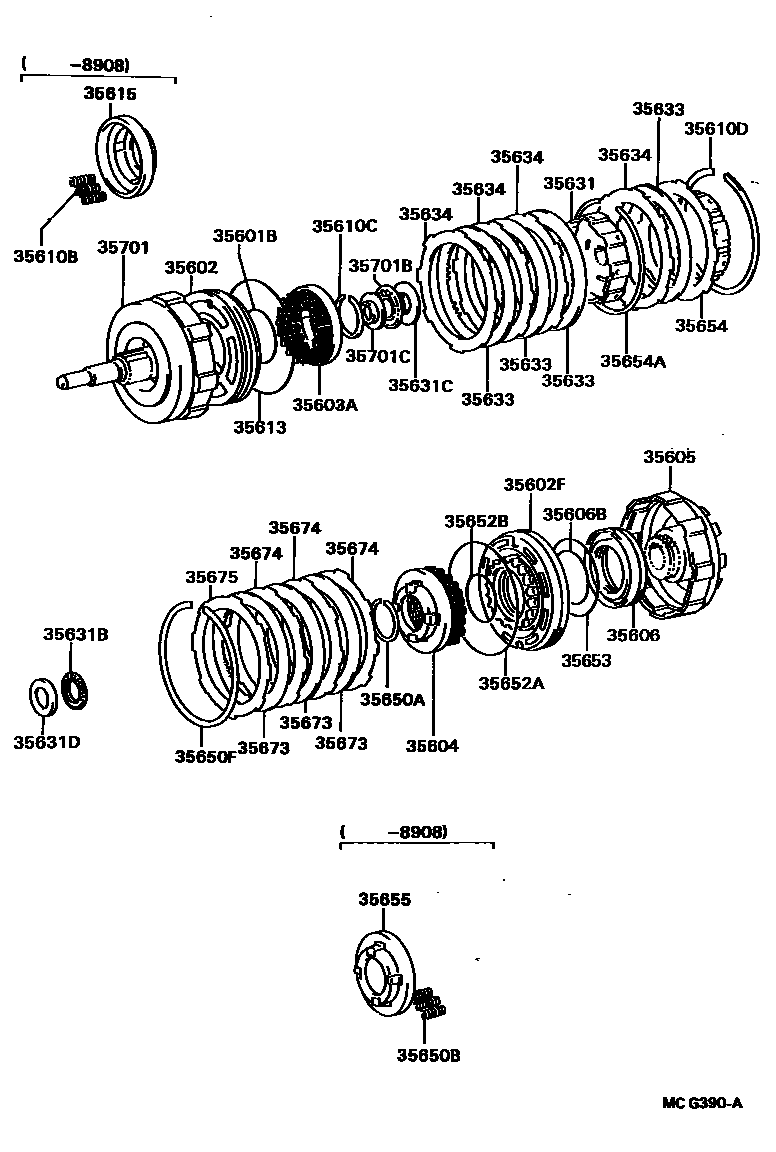

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

35601BRING, O (FOR FRONT CLUTCH DRUM)

main90301-57188iLN85,86,90,RN85,90..4FC198808-199806

35602PISTON SUB-ASSY, FRONT CLUTCH

main35602-30042iLN85,86,90,RN85,90..4FC198808-199806

35602FPISTON SUB-ASSY, REAR CLUTCH, NO.2

main35602-30041iLN85,86,90..4FC198808-199806

35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN

main35603-22030iLN85,86,90,RN85,90..4FC198908-199806

35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN

main35603-22010iLN86,90..4FC199108-199806

main35603-22020iRN85,90..4FC198908-199708

35605DRUM SUB-ASSY, REAR CLUTCH W/2ND SUN GEAR

main35605-22011iLN85,86..4FC198808-199708

main35605-30021iLN90,RN85,90..4FC198808-199806

35606PISTON SUB-ASSY, REAR CLUTCH

main35606-22010iLN85,86,90..4FC198808-199806

main35606-30021iRN85,90..4FC198808-199708

35606BRING (FOR REAR CLUTCH PISTON INNER)

main90301-57188×2iRN85,90..4FC199108-199708

35610BSPRING, COMPRESSION (FOR FRONT CLUTCH PISTON RETURN)

main90501-11023×20iLN85,RN85,90..4FC198808-198908

35610CRING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING)

main90520-39261iLN85,86,90,RN85,90..4FC198808-199806

35610DRING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH)

main90520-99012iLN86,90,RN85,90..4FC199206-199806

main90521-99139iLN85,86,RN85,90..4FC198808-199206

35613RING, CLUTCH PISTON OIL SEAL, OUTER

main90301-99016iLN85,86,90,RN85,90..4FC198808-199806

35615SEAT, CLUTCH PISTON RETURN SPRING

main35615-30020iLN85,RN85,90..4FC198808-198908

35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)

main35631-30050iLN85,86,90,RN85,90..4FC198808-199806

35631BBEARING, THRUST(FOR FRONT CLUTCH HUB)

main90374-28014iLN85,86,90,RN85,90..4FC198808-199806

35631CRACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT)

main35789-22050iLN85,86,90,RN85,90..4FC198808-199806

35631DRACE, THRUST BEARING(FOR FRONT CLUTCH HUB REAR)

main35789-22020iLN85,86,90,RN85,90..4FC198808-199806

35633DISC, CLUTCH (FOR FRONT CLUTCH)

main35677-30030×4iLN85,86,RN85,90..4FC198808-199708

main35677-30160×4iLN90..4FC199611-199806

35634PLATE, FRONT CLUTCH

main35634-22040×3iLN85,86,90,RN85,90..4FC198808-199806

T=1.8

main35634-30070iLN85,86,90,RN85,90..4FC198808-199806

T=2.0

35650ARING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING)

main90520-39261iLN85,86,90,RN85,90..4FC198808-199806

35650BSPRING, COMPRESSION (FOR REAR CLUTCH PISTON RETURN)

main90501-10671×18iLN85..4FC198808-198908

main90501-11023×18iRN85,90..4FC198808-198908

35650FRING, SHAFT SNAP

main90521-99139iLN85,86,90,RN85,90..4FC198808-199806

35652ARING (FOR REAR CLUTCH OUTER)

main90301-99016iLN85,86,90,RN85,90..4FC198808-199806

35652BRING (FOR REAR CLUTCH PISTON INNER)

main90301-57188iLN85,86,90,RN85,90..4FC198808-199806

35653RING, REAR CLUTCH OIL SEAL, OUTER

main90301-84184iLN85,86,90,RN85,90..4FC198808-199806

35654HUB, REAR CLUTCH

main35654-30010iLN85,86,90,RN85,90..4FC198808-199806

35654ARING, HOLE SNAP (FOR REAR CLUTCH HUB)

main90521-99146iLN85,86,90,RN85,90..4FC198808-199806

35655SEAT, REAR CLUTCH PISTON RETURN SPRING

main35615-30020iLN85,RN85,90..4FC198808-198908

35673DISC, REAR CLUTCH

main35677-30030×3iLN85,86,RN85,90..4FC198808-199708

main35677-30160×3iLN90..4FC199611-199806

35674PLATE, REAR CLUTCH

main35634-22040×3iLN85,86,90..4FC198808-199806

main35634-30070×3iRN85,90..4FC198808-199708

35675FLANGE, REAR CLUTCH

main35675-22010iLN85,86,90..4FC198808-199806

T=4.0

main35675-30030iRN85,90..4FC198808-199708

T=3.6

35701SHAFT SUB-ASSY, INPUT

main35701-30042iLN85,86,RN85,90..4FC198808-199206

main35701-30043iLN86,90,RN85,90..4FC199206-199806

35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)

main90374-23012iLN85,86,90,RN85,90..4FC198808-199806

35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)

main35789-22010iLN85,86,90,RN85,90..4FC198808-199806

34 parts on this diagram · 1 diagram in section
