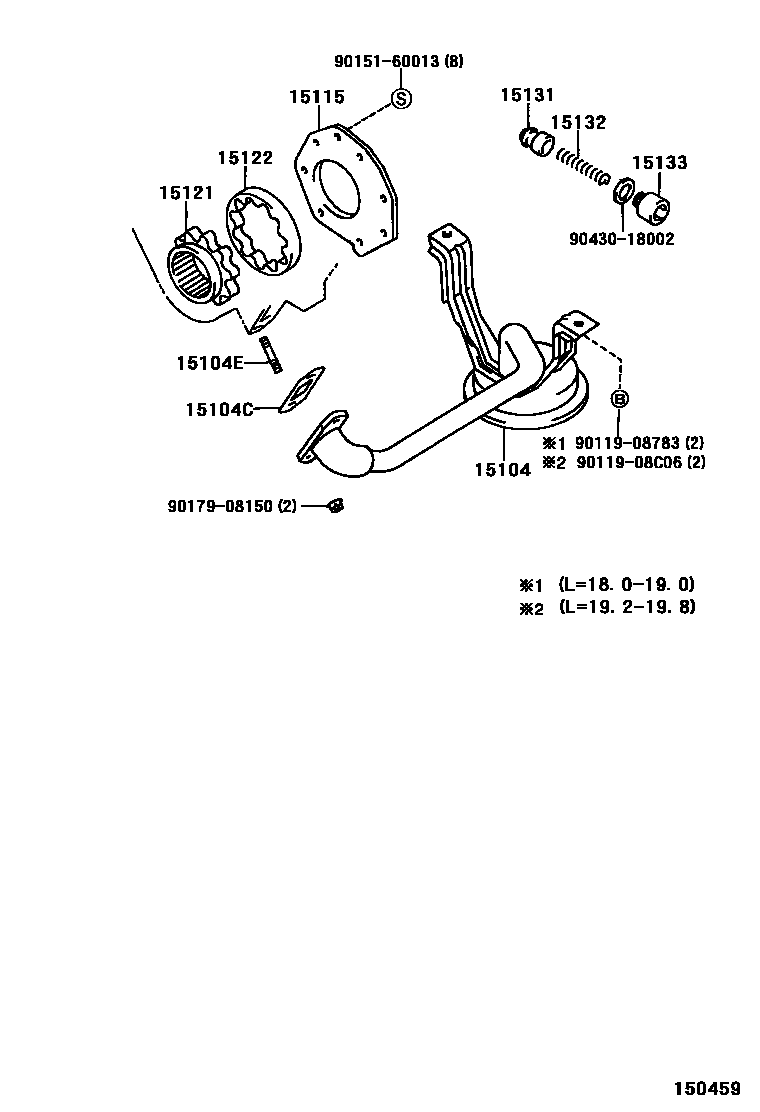

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

15104STRAINER SUB-ASSY, OIL

main15104-35010i22R..RN125198907-199308

main15104-38040i22R#..RN8#,90198808-199909

main15104-54044i2L..LN8#,90198808-198908

main15104-54170i5L..LN200200106-200412

main15104-54180i2L,3L..LN8#,90198908-199105

main15104-54181i2L,3L..LN8#;2L..LN90..5F199105-199701

main15104-54220i2L,3L..LN8#,9#199705-200106

main15104-71010i2Y,3Y,4Y..YN8#,92198808-199108

main15104-75080i3RZFE..RZN200200106-200412

15104CGASKET(FOR OIL STRAINER)

main15147-38020i22R#..RN125,8#,90198808-199909

main15149-54012i2L,3L..LN8#,9#198808-200008

main15149-54030i3L..LN86200008-200106

15104EBOLT, STUD(FOR OIL STRAINER)

main92122-40816×2i2L,3L..LN8#,9#198808-200106

main92122-80816×2i5L..LN200200208-200412

15115COVER, OIL PUMP

main15115-35020i22R#..RN125,8#,90198808-199909

main15115-54020i2L..LN8#,90198808-199008

main15115-54021i2L,3L..LN8#,90199008-199505

main15115-54022i2L,3L..LN8#,9#199505-200106

main15115-71015i2Y,3Y,4Y..YN8#,92198808-199108

main15115-75020i3RZFE..RZN200200106-200412

15121GEAR, OIL PUMP DRIVE

main15121-38020i22R#..RN125,8#,90198808-199909

main15121-54020i2L,3L..LN8#,9#198808-200106

main15121-54030i5L..LN200200312-200412

15122GEAR, OIL PUMP DRIVEN

main15122-38020i22R#..RN125,8#,90198808-199909

main15122-54020i2L,3L..LN8#,9#198808-200106

main15122-54030i5L..LN200200312-200412

15131VALVE, OIL PUMP RELIEF

main15131-24010i2Y,3Y,4Y..YN8#,92198808-199108

main15131-38030i22R#..RN125,8#,90198808-199909

main15131-54010i2L,3L..LN8#,9#198808-200106

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i2Y..YN85..5F..ARL;2Y,3Y,4Y..YN8#,9#..GEN,TH,V199108-199909

main15132-46010i22R#..RN125,8#,90198808-199909

main15132-54010i2L,3L..LN8#,9#198808-200106

main15132-75020i3RZFE..RZN200200106-200412

NO.1

main15132-75021i3RZFE..RZN200200106-200412

NO.2

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i22R#..RN125,8#,90198808-199909

main15133-24010i2Y,3Y,4Y..YN8#,92198808-199108

main15133-54010i2L,3L..LN8#,9#198808-200106

9011908783

main90119-08783

9011908C06

main90119-08C06

9015160013

main90151-60013

9017908150

main90179-08150

9043018002

main90430-18002

14 parts on this diagram · 5 diagrams in section
